Configuration
|
Reliable performance and affordable priced IPCs
|
Specification
|
Supported Processors |
Intel® Celeron® Processor J4125 4M Cache, up to 2.70 GHz 4 Cores and 4 Threads |
|
Operating System |
Microsoft Windows™ 11 Home or Professional |
|
System Memory and Storage |
Built in 8GB LPDDR4 System Memory Built in 128GB M.2 SSD 2242 SSD Storage Up to 128GB Micro SD Card Reader |
|
Graphics |
Integrated Intel® UHD Graphics 600 Graphics Base Frequency: 250 MHz Graphics Burst Frequency: 750 MHz |
|
Audio |
Integrated High Definition Audio |
|
Connectivity |

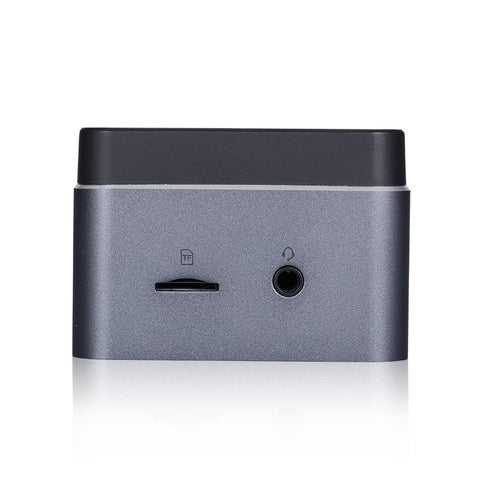

Intel® Dual Band Wireless-AC 3165 Two SuperSpeed USB 3.0 port One HDMI Port One Audio Jack One Type C Power |
|
Power |
Low Power Type-C input 12V2A Power adapter |
|
Keyboard and Mouse |
Standard Xitrix USB Multimedia Keyboard and Optical Scroll Mouse Optional Wireless Keyboard and Mouse |
|
Dimension |
61.6mm*W 61.6mm*H 42.0mm 0.50kg |
|
Operating Temperature |
5% - 85% (non-condensing) |
|
Packing Box |
PC*1, 12V/3A Power adapter*1, power plug*1, user manual*1, warranty card*1, |
|
Standard Warranty and Service Offerings |
Service Offerings 1-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service Optional 3 Years Next Business Day on-site |
Services
Standard Warranty and Service Offerings
|
Downloads
| Title | Date | Filename | |
| Mini B5-Celeron Product Brochure Data Sheet OS: Adobe Acrobat Reader | June 2023 | DeskFrame_-Mini_B5-Celeron.pdf | Download |
