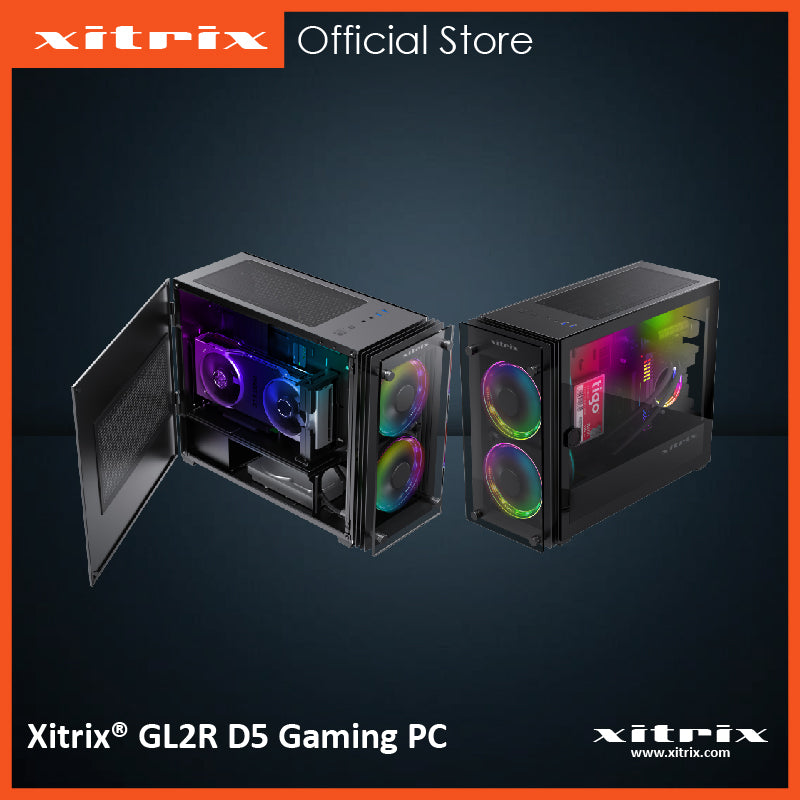

Xitrix® GL2R D5 AMD Gaming PC

Xitrix GL2R Gaming PC

• Latest AMD Ryzen™ 7000 Series Desktop Processors
• Up to 96GB DDR5 Memory; PCIe 5.0 M.2 Next Gen Storage
• Supports Up to GTX, RTX-30 and RTX40 Series Graphic Cards
• Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax
• 700watts or 1000 watts Power Supply

Supported Processors

AMD Ryzen™ 7000 Series Desktop Processors

Core Chipset

AMD B650 Chipset ( B650I AORUS MINI ITX Gaming Motherboard)

Operating System

Microsoft® Windows® Windows™ 11 64Bit (Home and Professional)

System Memory

Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules

2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Supported Graphics

nVidia GeForce RTX-4060, 4060Ti and RTX4070Ti

nVidia GeForce RTX-3050 (8GB GDDR6 / 14 Gbps / 128-bit)

nVidia GeForce GTX-1650 (4GB GDDR6 / 12 Gbps / 128-bit)

Slots

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

1 x PCIe 5.0 x4 M.2 Connector

2 x M.2 Socket, supports type 2280 SATA3 6.0 Gb/s PCIe Gen4x4 (64 Gb/s) modes

Hard Drive

Up to 2 x 2.5inch SATA Solid State Drive or HDD

Up to 3 x M.2 Socket SSD Solid State Drive

RAID 0, RAID 1, and RAID 10 support

Audio

Hi-Fi Audio with DTS:X® Ultra ALC4080 CODEC

Peripheral Interfaces

Front / Top Ports: USB 3.2 Gen1 Type-A Ports ; USB Type C Port; 2x Audio Jack

Motherboard Rear Ports:

    1 x DisplayPort and 1 x HDMI port

    1 x Rear USB 3.2 Gen 2 Type-C® with DisplayPort™ Alternate Mode

    2 x USB 3.2 Gen 2 Type-A ports (red)

    2 x USB 3.2 Gen 1 ports

    2 x USB 2.0/1.1 ports

    1 x RJ-45 port; 2 x SMA antenna connectors (2T2R)

    1 x Q-Flash Plus button

    2 x audio jacks

LAN Support

Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

802.11ac WiFi Module Dual-Band (2.4/5 GHz) ; I Bluetooth 5.3

Chassis Type

Dimension

Power Supply

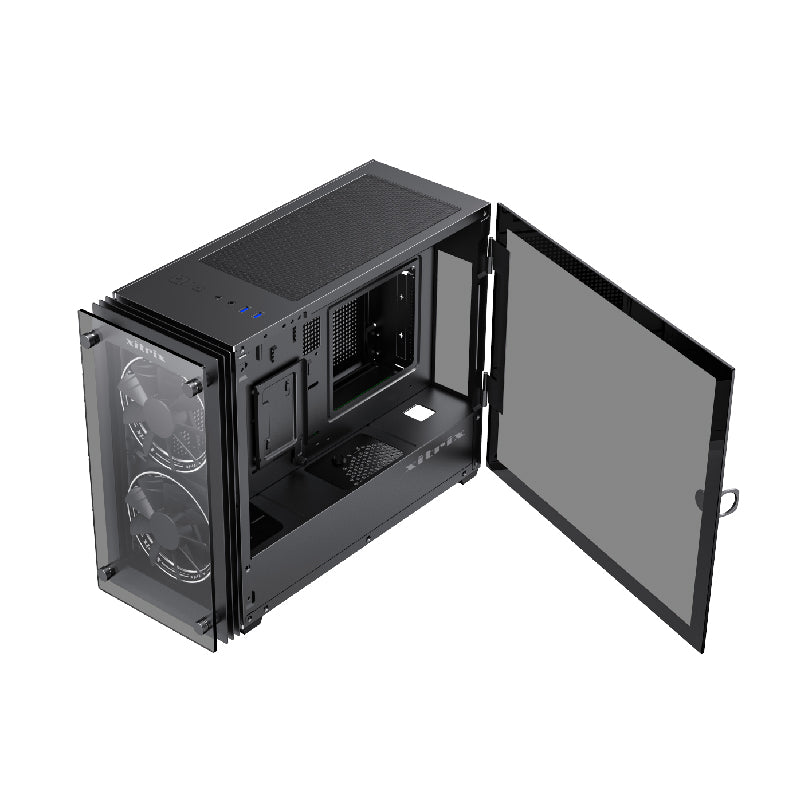

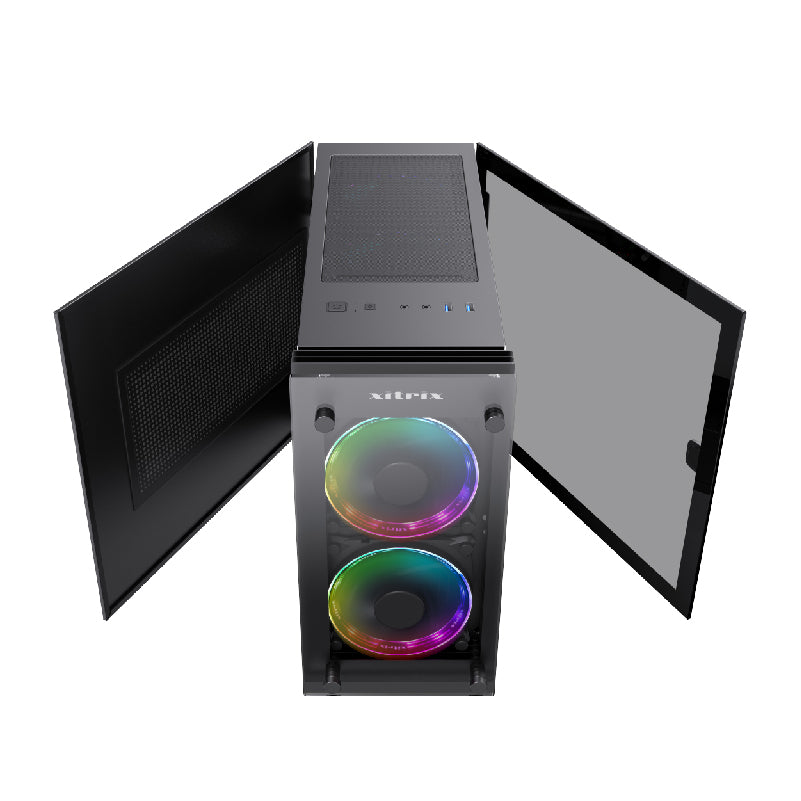

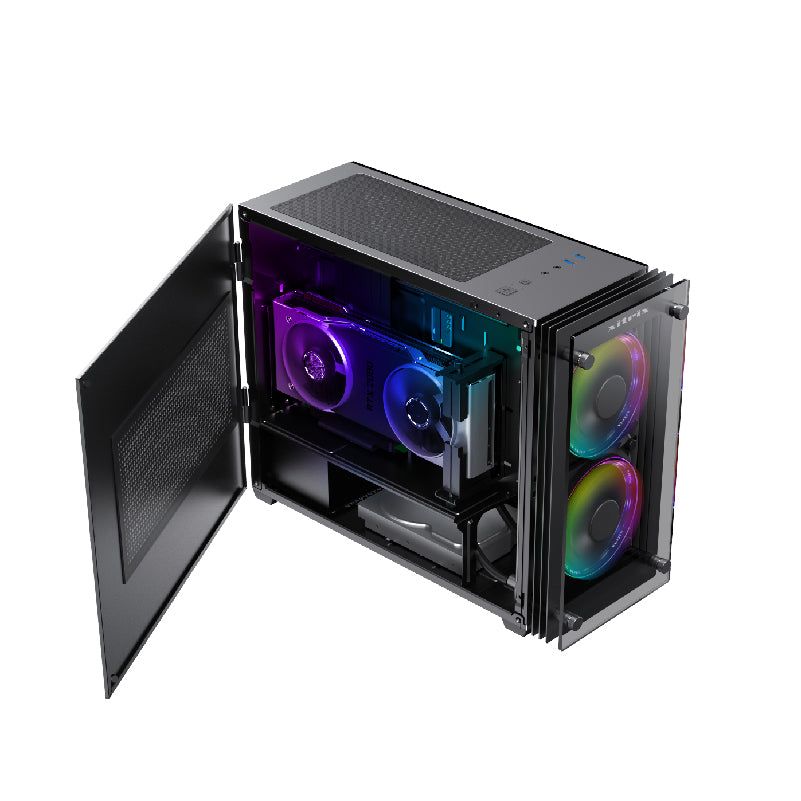

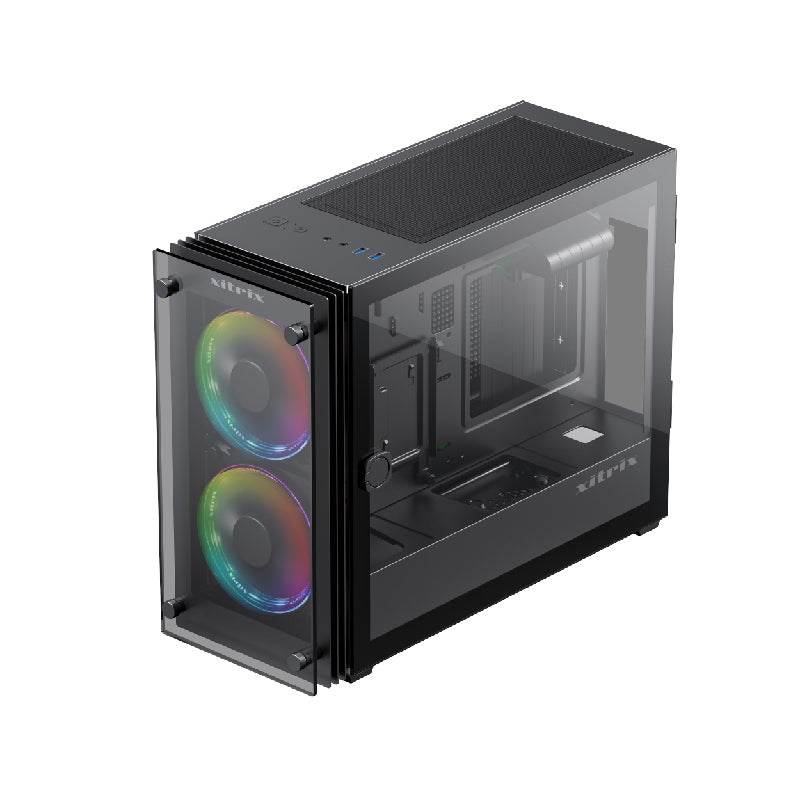

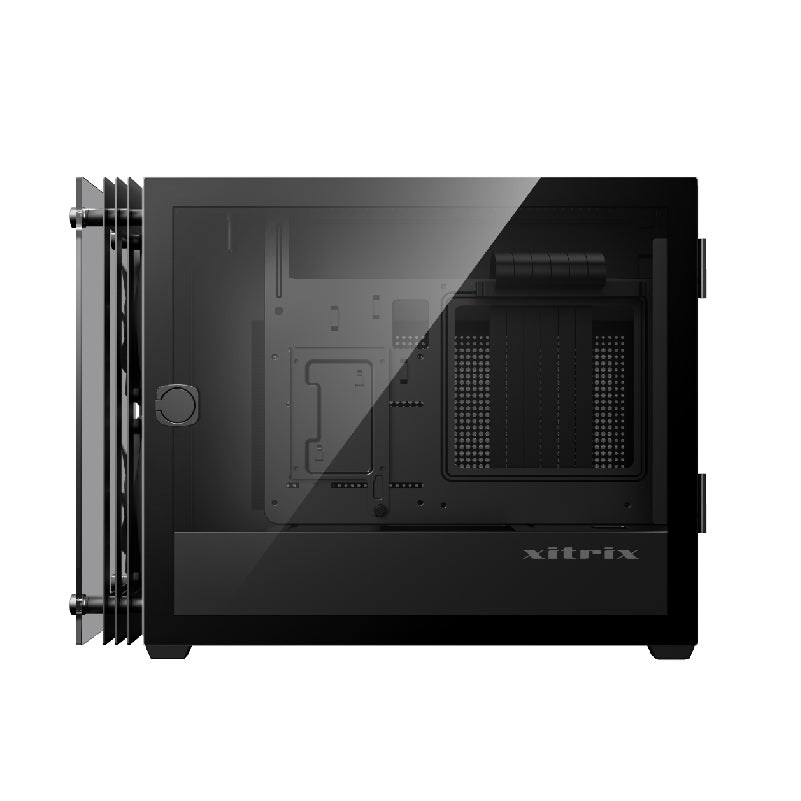

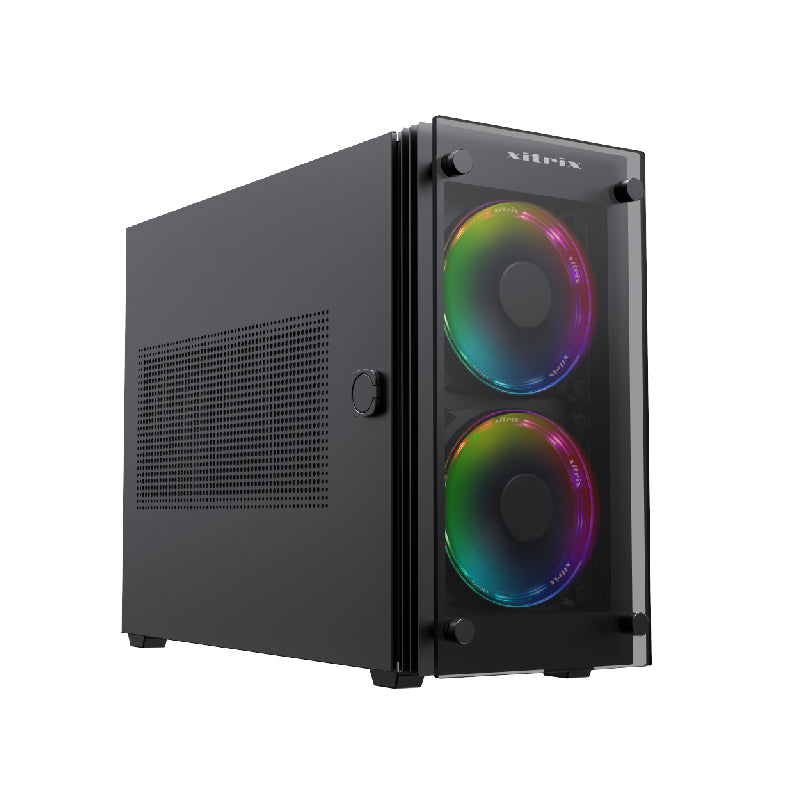

Mini ITX Chassis with  Dual Side Panel Doors design

(L)426*(W)170*(H)325mm

Standard: 700 WATTS High Efficiency 80Plus Gold Power Supply

Optional: 1000 WATTS High Efficiency 80Plus Gold Power Supply

System Cooling

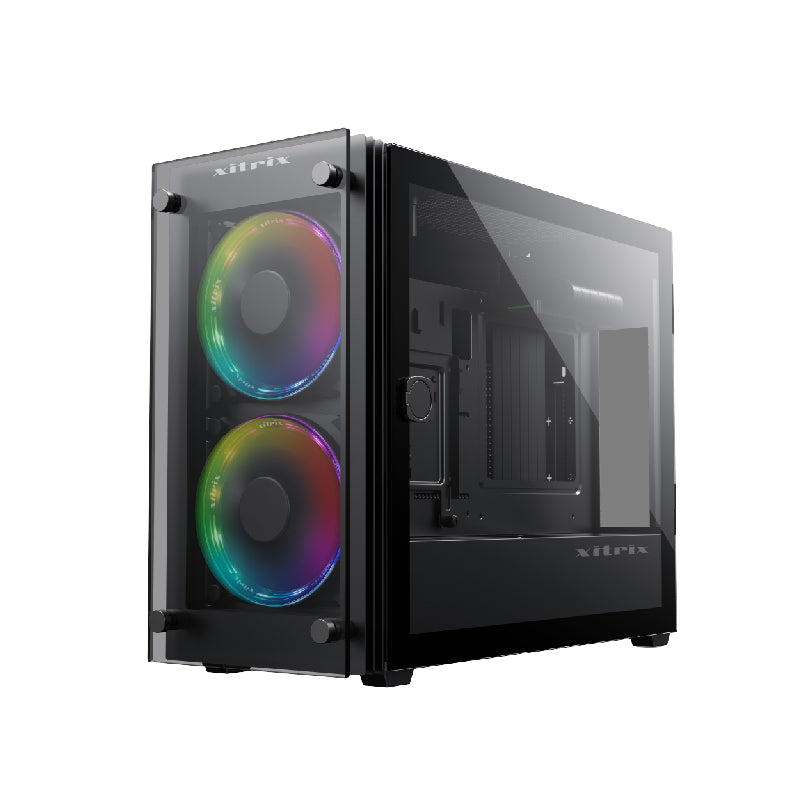

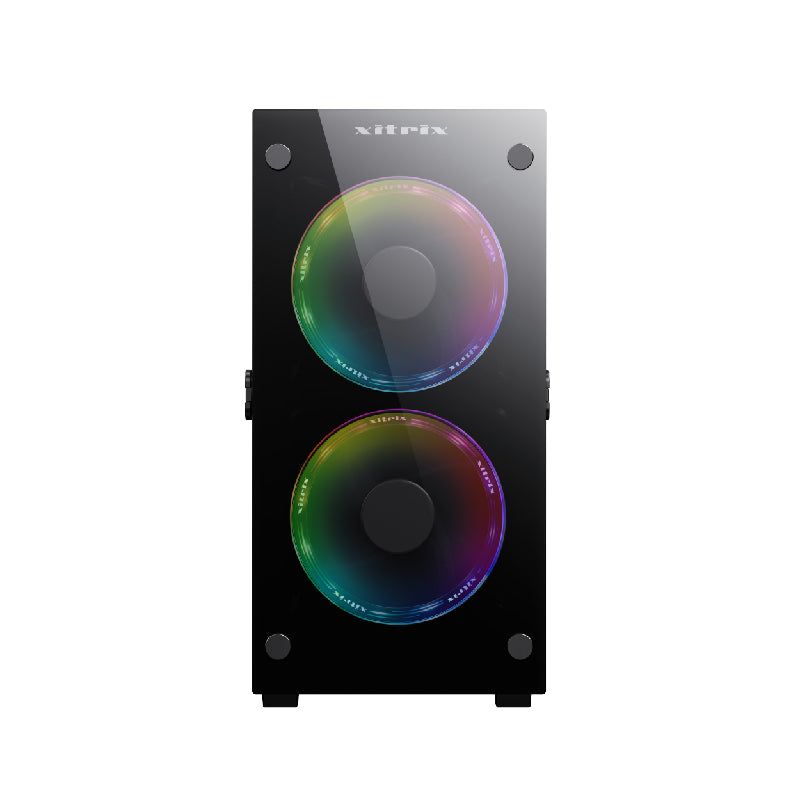

2 x 120mm RGB Cooling Fan ( Front)

2 x 120mm RGB Cooling Fan ( Top)

Supports 240mm AIO RGB Liquid Cooling System

Standard Warranty and Service Offerings

Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service

Optional 3 Years Next Business Day on-site

 Standard Warranty and Service Offerings

3 Years Warranty on Parts and Labor
