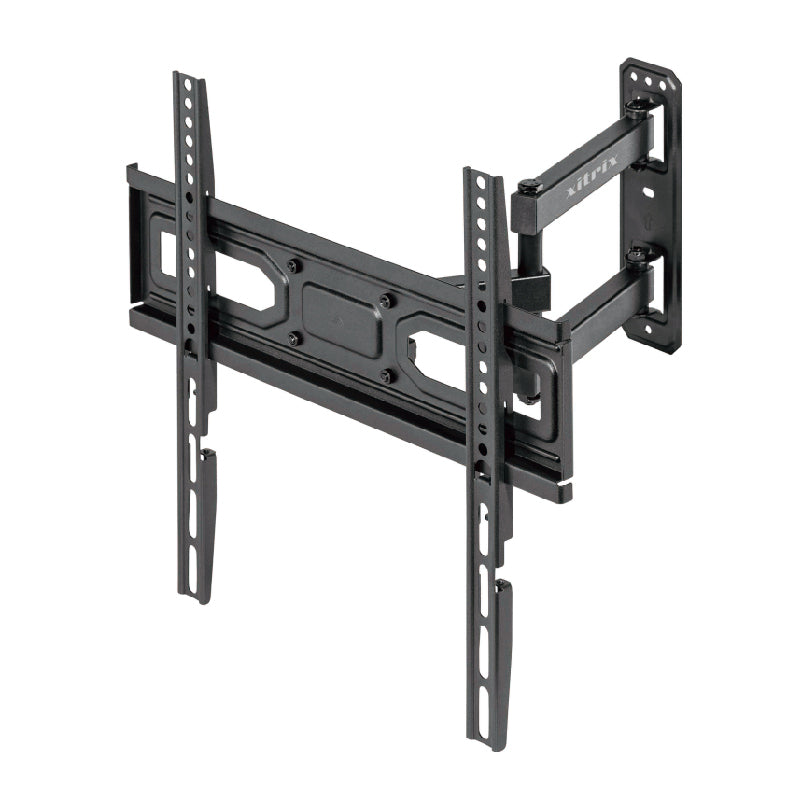

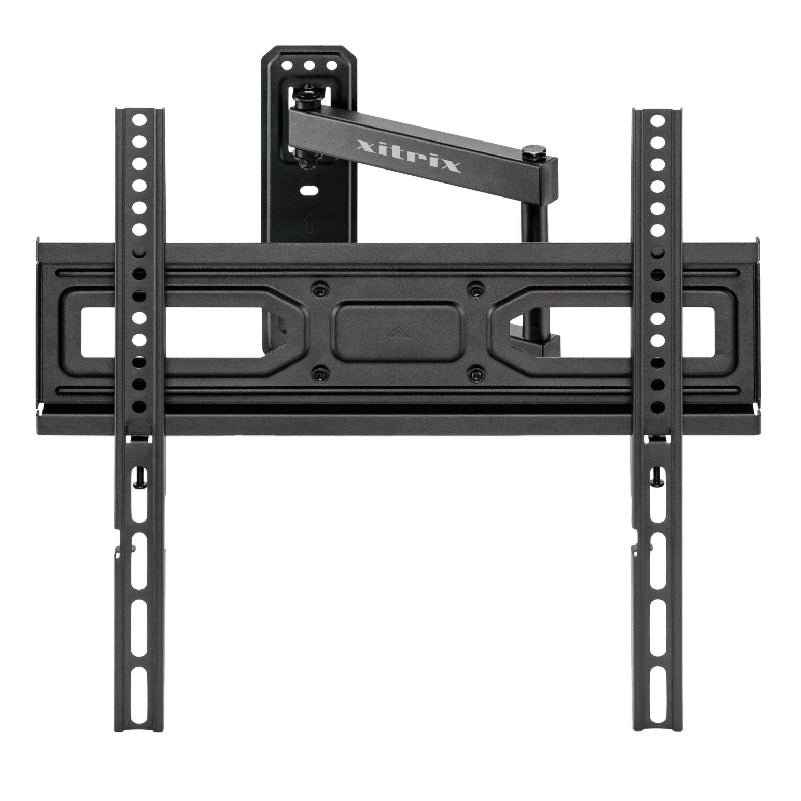

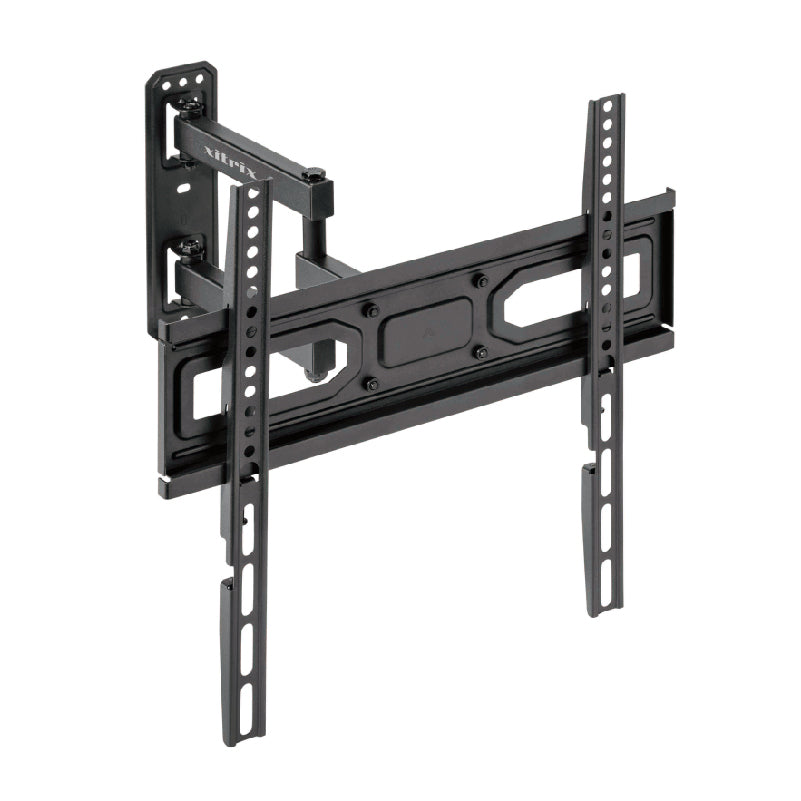

Xitrix® Basic Full-Motion TV Mount (Tilt and Swivel) Up to 60inch

• Brackets with 2-level height adjustment
• Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
• Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
• Leveling adjustments: allow TV to be perfectly positioned after hanging
• Cable Management: keeps everything organized

Product Category:            Full-motion TV Wall Mount

Material:              Steel,Plastic

Metal Sheet Thickness: Bracket Arm THK=1.2mm cold-rolled sheet,VESA Panel THK=1.5mm cold-rolled sheet,Wall Plate THK=1.8mm cold-rolled sheet (Bracket Arm THK=0.047" cold-rolled sheet,VESA Panel THK=0.059" cold-rolled sheet,Wall Plate THK=0.071" cold-rolled sheet)

Pipe Size:             30x20x1.5mm Square Steel Tube (1.2"x0.79"x0.059" Square Steel Tube)

Surface Finish:   Powder Coating

Color:    Fine Texture Black

Dimensions:       358x440x420mm (14.1"x17.3"x16.5")

Fit Screen Size: 32"-60"

Fit Curved TV:    Yes

Mounting Hole Pattern: VESA & Universal

VESA Compatible:                 100x100,100x150,150x100,100x200,200x100,150x150,200x200,300x200,400x200,300x300,400x300,400x400

Max. Mounting Hole:      400x400

Weight Capacity:              35kg (77lbs)

Strength Tested:                2 Times Approved

Profile: 63~358mm (2.5"~14.1")

Tilt Range:           +3°~-15°

Swivel Range:     +90°~-90°

Screen Level:      +3°~-3°

Screen Freely Tilting:       Yes

Installation:         Solid Wall,Single Stud

Panel Type:         Detachable Panel

Wall Plate Type:                Fixed Wall Plate

Direction Indicator:          Yes

Cable Management:        Yes

Anti-theft:           No

Bubble Level:     Hook-on Bubble Level(Included in Components Package)

Accessory Kit Package:   Normal/Ziplock Polybag,Compartment Polybag
