Overview

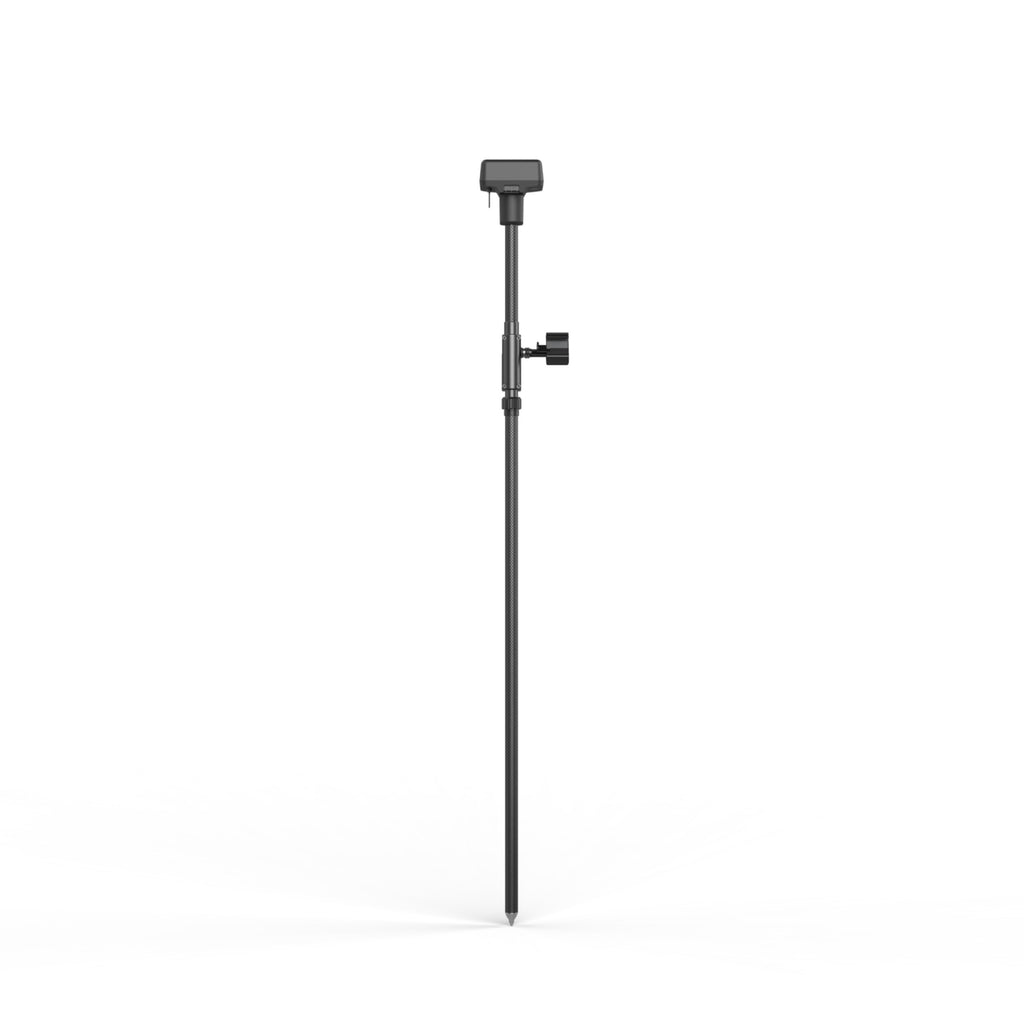

| Supports four global satellite navigation systems — BeiDou, GPS, Galileo, GLONASS, and 11-frequency satellite reception, providing real-time differential corrections to facilitate the aircraft in centimeter-level precision positioning. It also supports coordinated operations involving multiple drones and an IP65 protection rating. |
Highlights
|
Simultaneously receives: GPS: L1 C/A, L2, L5 BeiDou: B1, B2, B3 GLONASS: F1, F2 Galileo: E1, E5A, E5B Positioning Accuracy: Single Point Horizontal: 1.5 m (RMS) Vertical: 3.0 m (RMS) Horizontal (RTK FIX): 1 cm+1 ppm (RMS) Vertical (RTK FIX): 2 cm + 1 ppm (RMS) 1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less. For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station. IP65 Rating Operating Temperature: -20° to 55° C (4° to 131° F ) |
In The Box
|
Simultaneously receives: GPS: L1 C/A, L2, L5 BeiDou: B1, B2, B3 GLONASS: F1, F2 Galileo: E1, E5A, E5B Positioning Accuracy: Single Point Horizontal: 1.5 m (RMS) Vertical: 3.0 m (RMS) Horizontal (RTK FIX): 1 cm+1 ppm (RMS) Vertical (RTK FIX): 2 cm + 1 ppm (RMS) 1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less. For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station. IP65 Rating Operating Temperature: -20° to 55° C (4° to 131° F ) |
Specifications
|
Simultaneously receives: GPS: L1 C/A, L2, L5 BeiDou: B1, B2, B3 GLONASS: F1, F2 Galileo: E1, E5A, E5B Positioning Accuracy: Single Point Horizontal: 1.5 m (RMS) Vertical: 3.0 m (RMS) Horizontal (RTK FIX): 1 cm+1 ppm (RMS) Vertical (RTK FIX): 2 cm + 1 ppm (RMS) 1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less. For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station. IP65 Rating Operating Temperature: -20° to 55° C (4° to 131° F ) |
Compatibility
|
DJI Inspire 3 Phantom 4 RTK Matrice 350 RTK Matrice 300 RTK |
