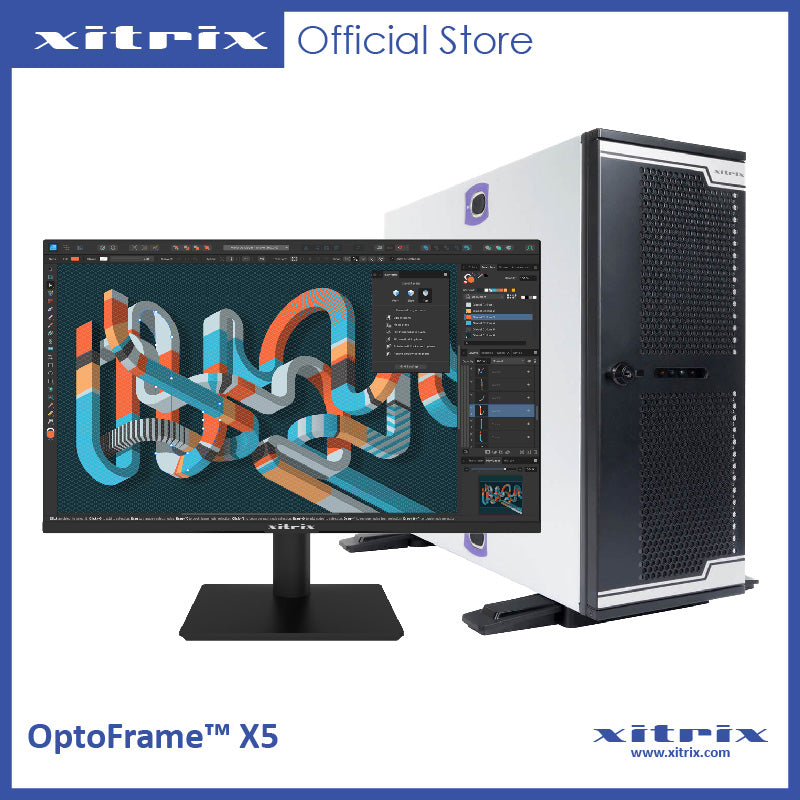

OptoFrame™ X5

  • Sale
  • Regular price ₱175,000.00
  • 5 available
Tax included.



Configuration

Ultimate workstation platform to power next gen compute-intensive professional workloads

  • Supports 4th Gen Intel® Xeon® W-3400 and W-2400 Processors ; Up to 56Cores and 112 Threads
  • Up to 2TB ECC DDR5 System Memory
  • Up to 5 Hot Swappable SATA / SAS Hard Drive
  • Supports RAID Configuration
  • Up to 48GB nVidia Quadro RTX Professional Graphic Card
  • Dual 10 Gigabit LAN and One 2.5 Gigabit LAN



Specification

Processors

Supports 4th Gen Intel® Xeon® W-3400 and W-2400 Processors ; Up to 56Cores and 112 Threads

Core Chipset

Intel® W790 Workstation chipset

Operating System

Microsoft® Windows® 11 Professional; 64bit version

System Memory

8 x DDR5 DIMM Slots; Up to 2TB DDR5 System Memory

Quad Channel DDR5 Memory Technology

Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS/ RDIMM-9x4) up to 6800+(OC)

Optional Graphics

Support for Dual PCI Express® x16 Gen 4 graphics cards

NVIDIA RTX Professional Graphic Card

M.2 Slots

- 1 x M.2 Socket supports type 2230/2242/2260/2280 PCIe Gen5x4 (128 Gb/s) mode

- 2 x M.2 Sockets support type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode

- 1 x M.2 Socket supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode

Hard Drive

SATA 6Gb/s connectors Support Raid 0, 1, 5, 10

Optional 8 Port SATA / SAS 12Gb/s RAID Card W/ Support for ( RAID 0, 1, 5, 6,10, 50, JBOD)

Standard Fixed Hard Drive Cage; Upgradeable to 5 Hotswappable 3.5inch Hard Drives or 2.5inch SSD Drives

I/O Ports

- 2 x Antenna Ports, 1 x Optical SPDIF Out Port

- 2 x USB4 Type-C Ports 40Gbps

- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)

- 4 x USB 3.2 Gen1 Ports

- 3 x RJ-45 LAN Ports

- 1 x BIOS Button

- 1 x Line Out Jack (Gold Audio Jack)

- 1 x Microphone Input Jack (Gold Audio Jack)

Expansion Capabilities

4 x PCIe 5.0 x16 Slots (PCIE1/PCIE3 at x16; PCIE2/PCIE5 at x8)

LAN Support

802.11ax Wi-Fi 6E Module Supports Dual-Band 2x2 with extended 6GHz band support

2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s

1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

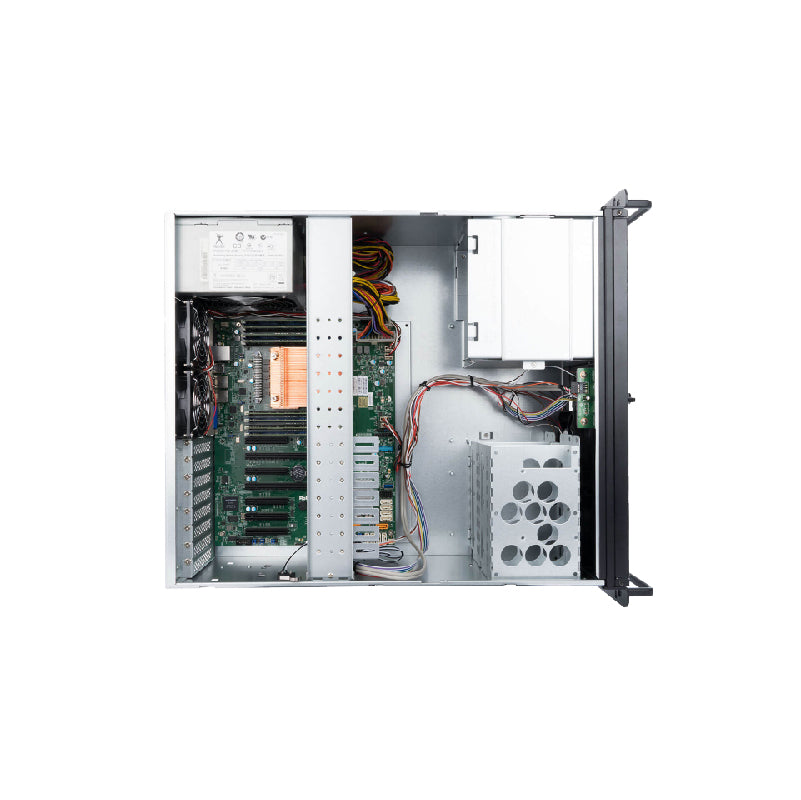

Chassis

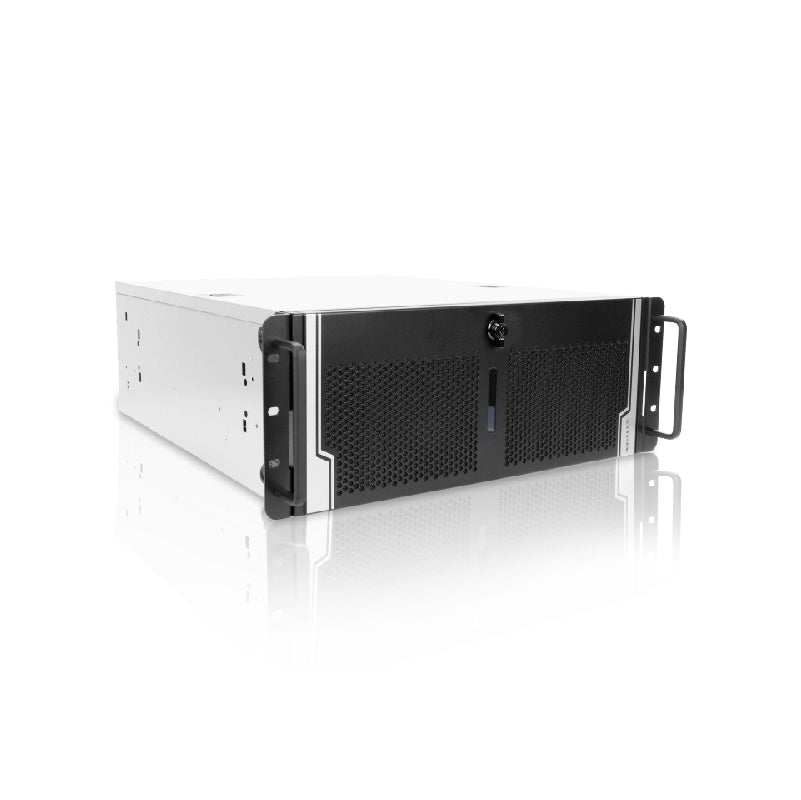

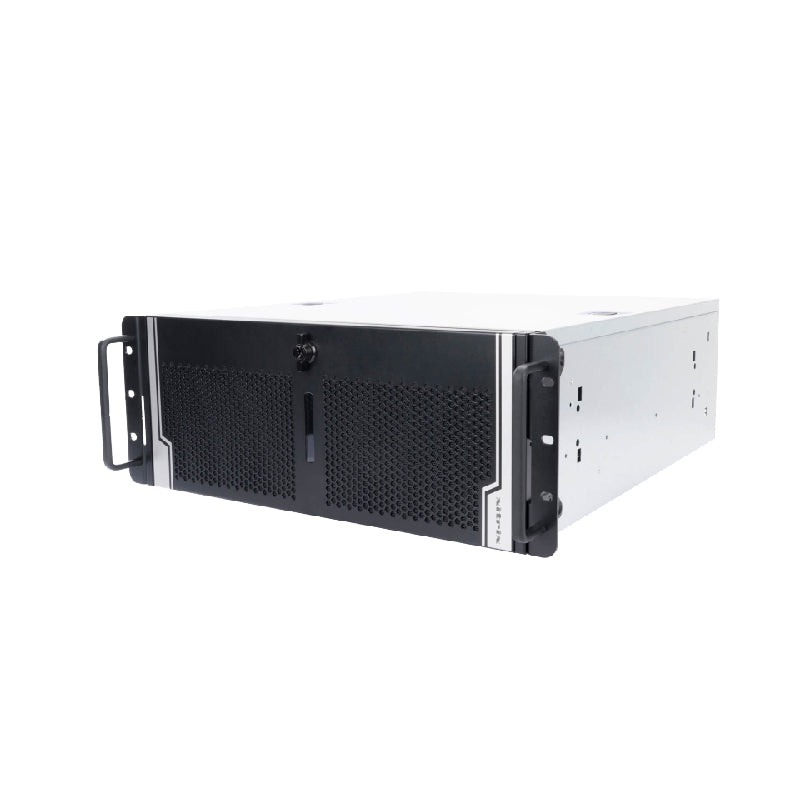

Industrial Grade Pedestal Server Chassis convertible to 4U Rack-Mount Server

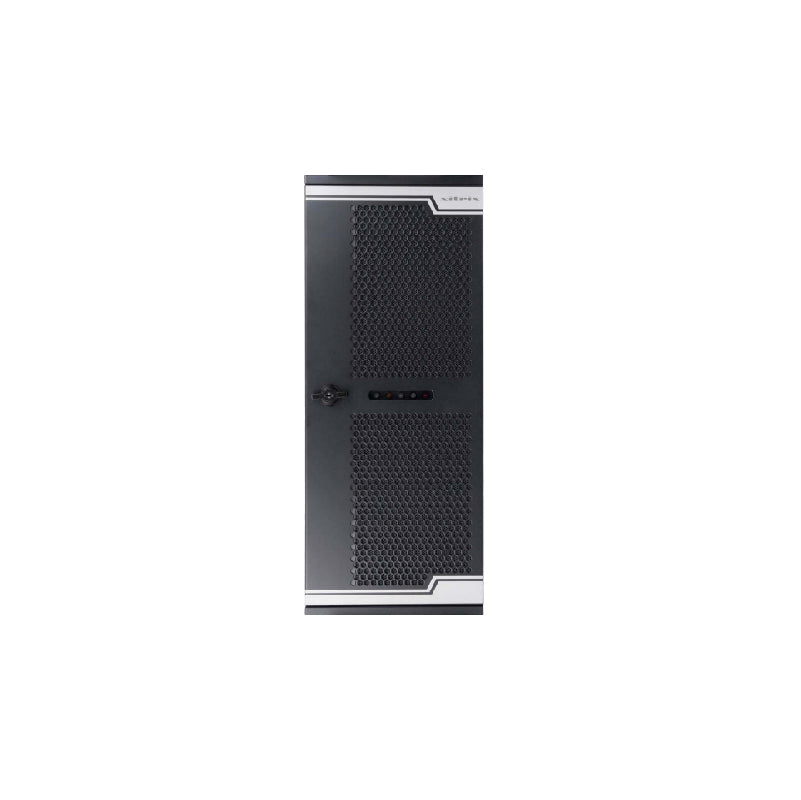

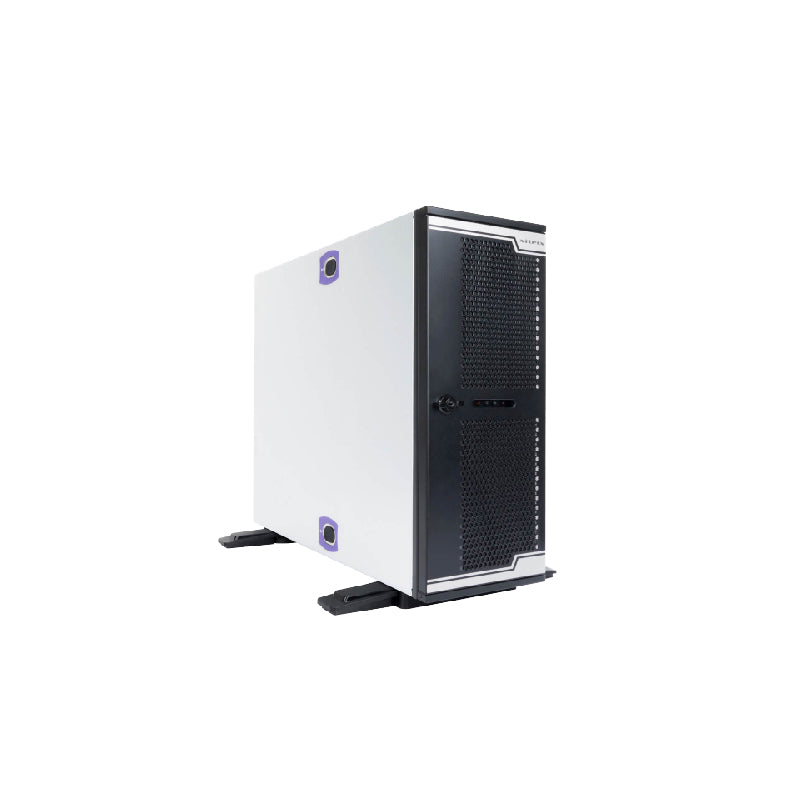

Supports Pedestal and 4U Rack Chassis

Product Dimensions (DxWxH; Chassis Only): 596x 430 x 174.8mm

Chassis Fan

• 80 x 25mm PWM rear fan x 2, 4500RPM

• 80 x 25mm PWM rear fan x 2 (optional), 4200RPM

• 80 x 25mm PWM rear fan x 2 (optional), 4500RPM

Power Supply

1050Watts High Efficiency 80Plus Gold Power Supply Supports SLI & Crossfire Multi-GPU VGA card (Single CPU Configuration) or 1,600w High Efficiency 80Plus Gold Rated Power Supply Supports SLI & Crossfire Multi-GPU VGA card (Multi CPU Configuration)

Standard Warranty

and Service

Offerings

Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service

Optional 3 Years Next Business Day on-site





Services
 Standard Warranty and Service Offerings
  • Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy;
  • 1-Year Next Business Day On-site Service
  • Optional 3 Years Next Business Day on-site



Downloads
Title Date Filename
X5 Product Brochure Data Sheet OS: Adobe Acrobat Reader Aug 2023 OptoFrameX5.pdf Download
