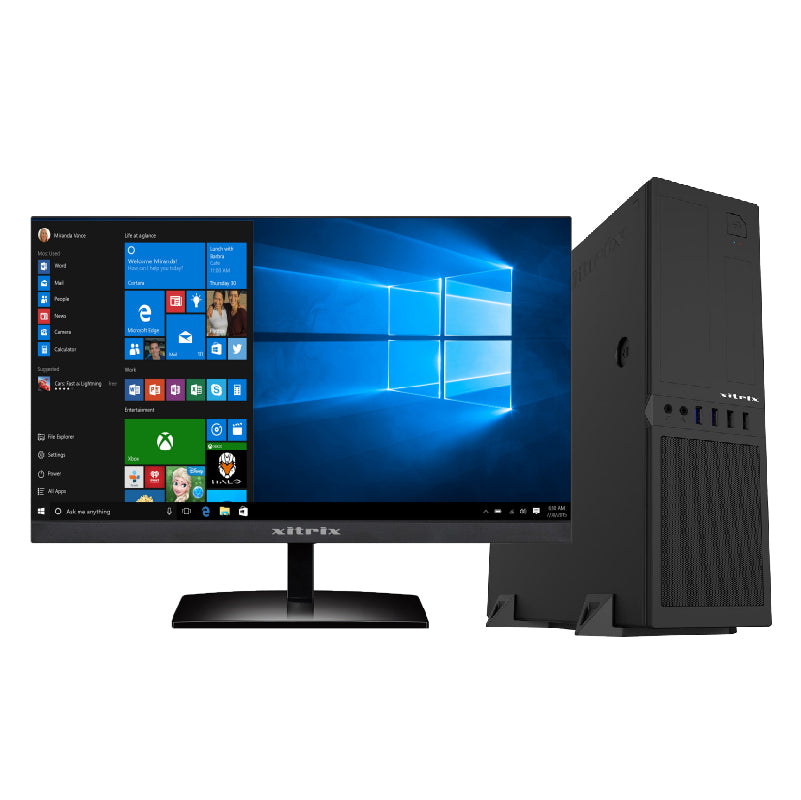

OptoFrame™ W130 SFF

Write a review
  • Sale
  • Regular price Currently Not Available
  • Will be in stock after
Tax included.





Features


Intel® Xeon® Processor E-2200 Family for Entry-Level Workstation:

  • The Intel® Xeon® E processor delivers enhanced performance, reliability and advanced security for the increasing demands and workflows of professional CAD, media and mobile workstations customers. Improvements in processor speed, enhanced memory capabilities, advanced hardware-enhanced security and reliability features available with support for 4K UHD Intel® graphics technology. With up to 8 cores and frequencies up to 5.0 GHz, the Intel Xeon E processor delivers enhanced performance for frequency-bound workstation applications.

Accelerate your Creativity with Nvidia® Quadro graphics processing units:

  • Designed, built and tested by NVIDIA, Quadro® desktop products are the #1 choice of millions of creative and technical users. Equipped with the world’s most powerful GPUs, large memory capacities, 8K display outputs, advanced features to drive real-time photorealistic rendering, AI-augmented workflows, VR environments and more, Quadro is built to accelerate a range of professional workflows.

Make room for your ideas

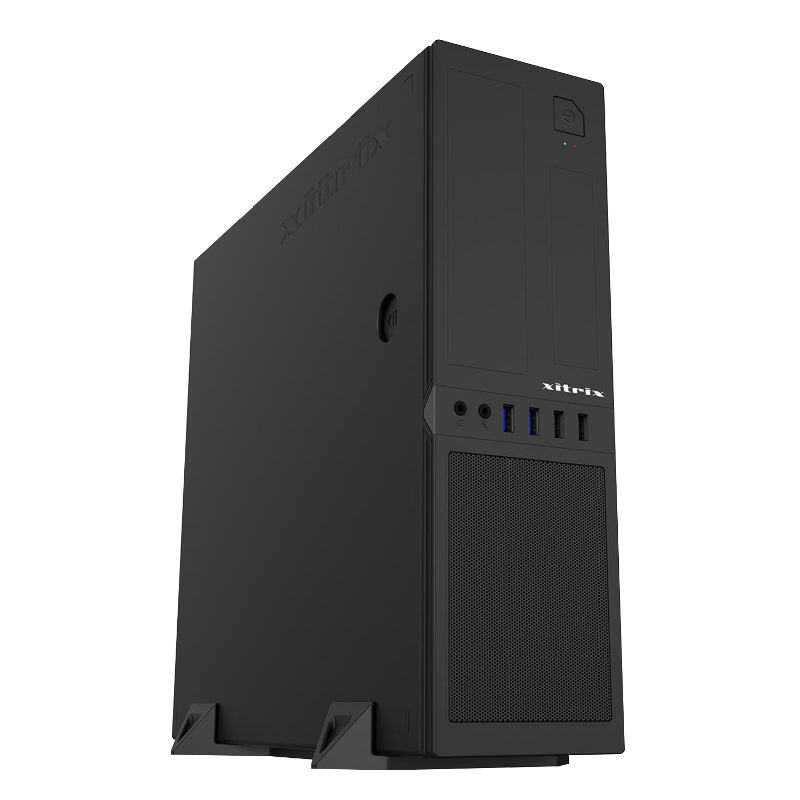

  • OptoFrame™ W-330 Small Form Factor features an industrial small form factor design that is ideal for space-constrained workspaces that need workstation-class performance and reliability.



Configuration

Entry Level Workstation built for Professional.

  • Support Intel® Xeon™ E-2200 Series Processors
  • Up to 128GB ECC DDR4 System Memory
  • Up to Dual Hard Drive Configuration; RAID Configuration
  • Optional Professional Graphic Cards NVIDIA Quadro P1000; NVIDIA Quadro P620; NVIDIA Quadro K420



Specification

Processors

Supports for Intel® Xeon® E- 2200 Series Processor

Support for 9th Intel® Core™ i3, i5 and i7 processor series in an LGA1151 socket

Core Chipset

Intel® C246 Express Chipset

Operating System

Genuine 64bit Microsoft® Windows® 10; Microsoft® Windows™ 10 Professional

System Memory

Two DDR4 SDRAM Dual Inline Memory Module (DIMM) sockets

Support for up to DDR4 2400/2666 MHz  ; Support for up to 32 GB of system memory

Graphics

Integrated Intel® HD graphics engine

Optional Graphics

Optional Professional Graphic Cards NVIDIA Quadro P1000; NVIDIA Quadro P620; NVIDIA Quadro K420

Hard Drive

Up to 18TB Serial ATA 6Gb/s Hard Drive

Up to 1TB SATA 6Gb/s SSD Solid State Drive

Supports Dual Hard Drive Configuration

Media Storage

Optional 24x DVD Writer Drive

Built in Media Card Reader

Audio

Intel® High Definition Audio (Intel® HD Audio); Built in Speaker Module

Peripheral Interfaces

Two Super Speed USB 3.0 front and Four USB 3.1 Rear ports

VGA Port and HDMI Port; PS2Port, Audio Ports, Dual Gigabit Network Port

Monitors

Choice of Xitrix® Branded Flat Panel LED Display

Slots

1 X PCI Express X16 Gen 3.0 slot(s)
1 X PCI Express X 1 Gen 2.0 slot(s)

LAN Support

(10/100/1000 Mb/s) LAN subsystem Gigabit Ethernet Controller
Intel® Dual Band Wireless-AC 3168 with Dual Mode Bluetooth®4.2 BLE

Chassis Type

Dimension

Power Supply

Xitrix DeskFrame SFF Tool Free Chassis
290*92.5*280mm
350Watts High Efficiency 80Plus Power Supply

Accessories

Xitrix Multimedia Keyboard and Optical Scroll Mouse

Standard Warranty and Service Offerings

Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service
Optional 3 Years Next Business Day on-site




Services
 Standard Warranty and Service Offerings
  • Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy;
  • 1-Year Next Business Day On-site Service
  • Optional 3 Years Next Business Day on-site



Downloads
Title Date Filename
W130-SFF Product Brochure Data Sheet OS: Adobe Acrobat Reader Sept 2020 OptoFrame W130-SFF.pdf Download
