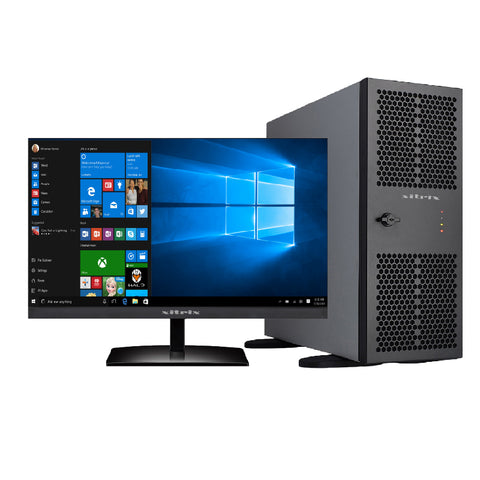

OptoFrame™ W-330

Write a review
  • Sale
  • Regular price Currently Not Available
  • Will be in stock after
Tax included.





Features


Intel® Xeon® Processor E-2100 Family for Entry-Level Workstation

  • The Intel® Xeon® E processor delivers enhanced performance, reliability and advanced security for the increasing demands and workflows of professional CAD, media and mobile workstations customers. Improvements in processor speed, enhanced memory capabilities, advanced hardware-enhanced security and reliability features available with support for 4K UHD Intel® graphics technology. With up to 8 cores and frequencies up to 5.0 GHz, the Intel Xeon E processor delivers enhanced performance for frequency-bound workstation applications.

Accelerate your Creativity with Nvidia® Quadro graphics processing units

  • Designed, built and tested by NVIDIA, Quadro® desktop products are the #1 choice of millions of creative and technical users. Equipped with the world’s most powerful GPUs, large memory capacities, 8K display outputs, advanced features to drive real-time photorealistic rendering, AI-augmented workflows, VR environments and more, Quadro is built to accelerate a range of professional workflows.

Built-in Dual Intel Gigabit LAN

  • For more reliable networking, the OptoFrame W-330 features built-in dual Intel® Gigabit LAN for lower CPU utilization and increased throughput. It achieves outstanding performance as well as better support for diverse operating systems.

All new 4U Industrial Server Chassis 21.5” depth, ideal for space-sensitive industrial applications

  • OptoFrame™ All new Industrial Workstation chassis supports up to 10 Hot Swappable 3.5inch Drives or 24 2.5inch Drives. The system also support fixed and Redundant Power Supply.


Configuration

Performance for Digital Content Creation

  • Support Intel® Xeon™ E-2100 Series Processors
  • Up to 128GB ECC DDR4 System Memory
  • Up to 5 Hot Swappable SATA / SAS Hard Drive
  • Supports RAID Configuration
  • Up to 48GB nVidia Quadro RTX Professional Graphic Card
  • Dual Intel® Server Gigabit LAN



Specification

Processors

Supports for Intel® Xeon® E-2200 Series Processor Up to 8 Cores and 16Threads  with 5GHz Turbo Frequency

Supports Intel® Core™ i7 K Series Unlocked Processor

Core Chipset

Intel® C246 Express Chipset

Operating System

Genuine 64bit Microsoft® Windows® 10; Microsoft® Windows™ 10 Professional

System Memory

Four DDR4 UDIMM ECC DDR4 2666/2400

Support for up to DDR4 2400/2666 MHz  ; Support for up to 128 GB of system memory

Optional Graphics

Optional Professional Graphic Cards NVIDIA Quadro Graphics

Optional Nvidia RTX Graphic Cards

Hard Drive

5 Hot swappable SATA or SAS Hard Drive ( 6GB/s SATA or 12GB/s SAS)

Up to 18TB Serial ATA 6Gb/s Hard Drive; Up to 1TB SATA 6Gb/s SSD Solid State Drive

Up to 2400 GB, 1800 GB, 1200 GB, 600 GB, 300 GB ( 12GB/s SAS 10,000 RPM)

Up to 900 GB, 600 GB, 300 GB (12GB/s SAS 15,000 RPM)

RAID

Built in Intel C246 RAID 0/1/10/5 (Intel RSTe)

Optional LSI 12GB/s SATA / SAS RAID Controller Card

Media Storage

Optional 24x DVD Writer Drive

Built in Media Card Reader

Audio

Intel® High Definition Audio (Intel® HD Audio); Built in Speaker Module

Peripheral Interfaces

Two Super Speed USB 3.0 front and Four USB 3.1 Rear ports

VGA Port and HDMI Port; PS2Port, Audio Ports, Dual Gigabit Network Port

Monitors

Choice of Xitrix® Branded Flat Panel LED Display

Slots

2X PCI Express X16 Gen 3.0 slot(s)

1 X PCI Express X 1 Gen 2.0 slot(s); 1 X PCI Express X 8 Gen 2.0 slot(s)

LAN Support

Dual Server Gigabit LAN (Intel® i210 + Intel® I219lm)

Chassis Type

Dimension

Power Supply

Industrial Grade Pedestal Server Chassis convertible to 4U Rack-Mount Server

146 x 42 x 180mm (Dimension WxHxD)

Up to 1200 Watts High Efficiency Power Supply

Standard Warranty and Service Offerings

Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy;
1-Year Next Business Day On-site Service
Optional 3 Years Next Business Day on-site




Services
 Standard Warranty and Service Offerings
  • Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy;
  • 1-Year Next Business Day On-site Service
  • Optional 3 Years Next Business Day on-site



Downloads
Title Date Filename
W330 Product Brochure Data Sheet OS: Adobe Acrobat Reader Sept 2020 OptoFrameW330.pdf Download
