PowerFrame™ R-130

Write a review
  • Sale
  • Regular price Currently Not Available
  • Will be in stock after
Tax included.





Features

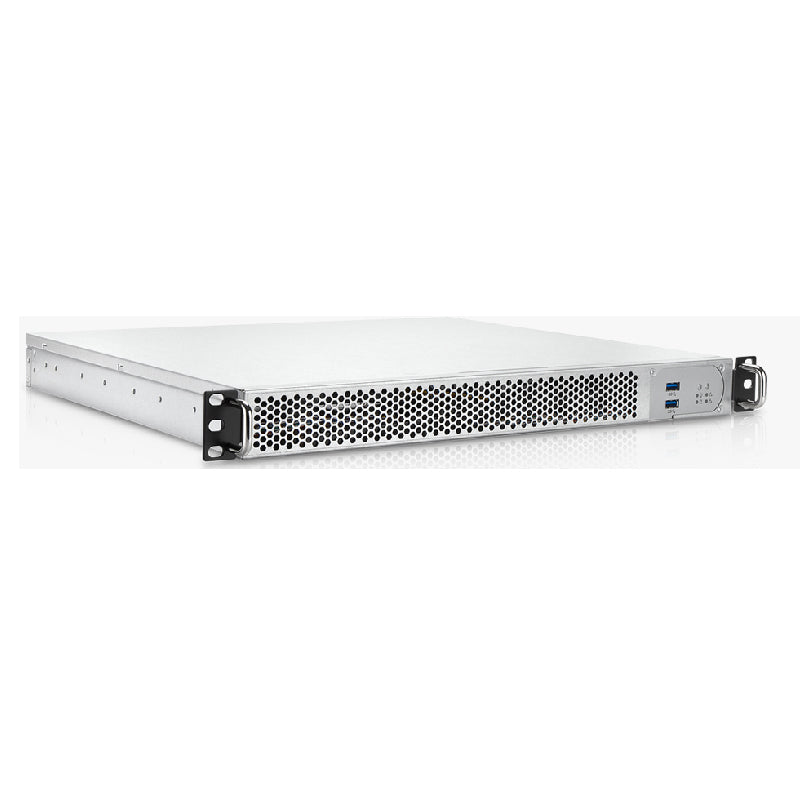

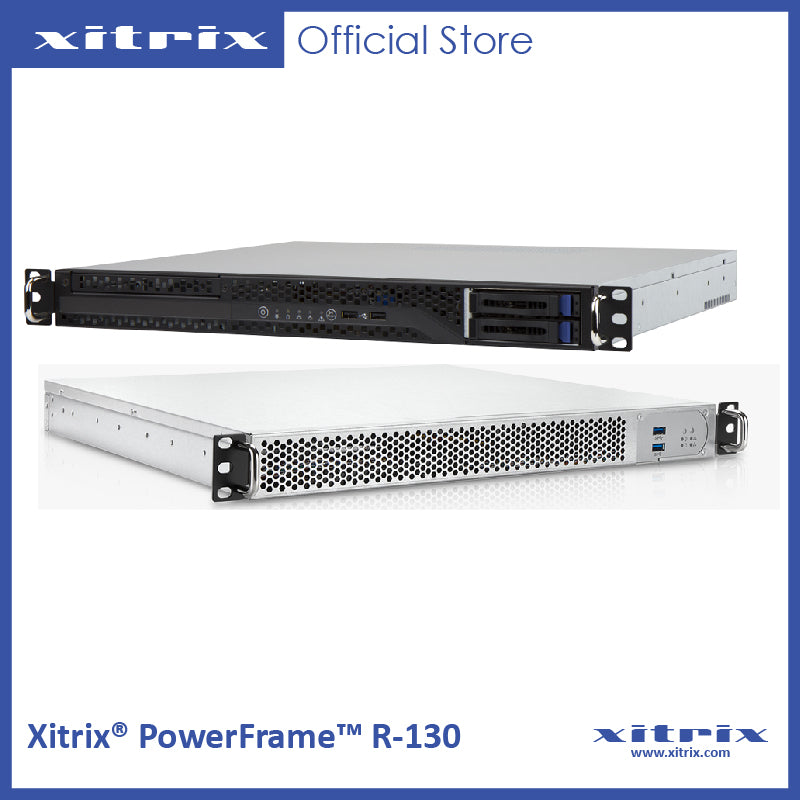

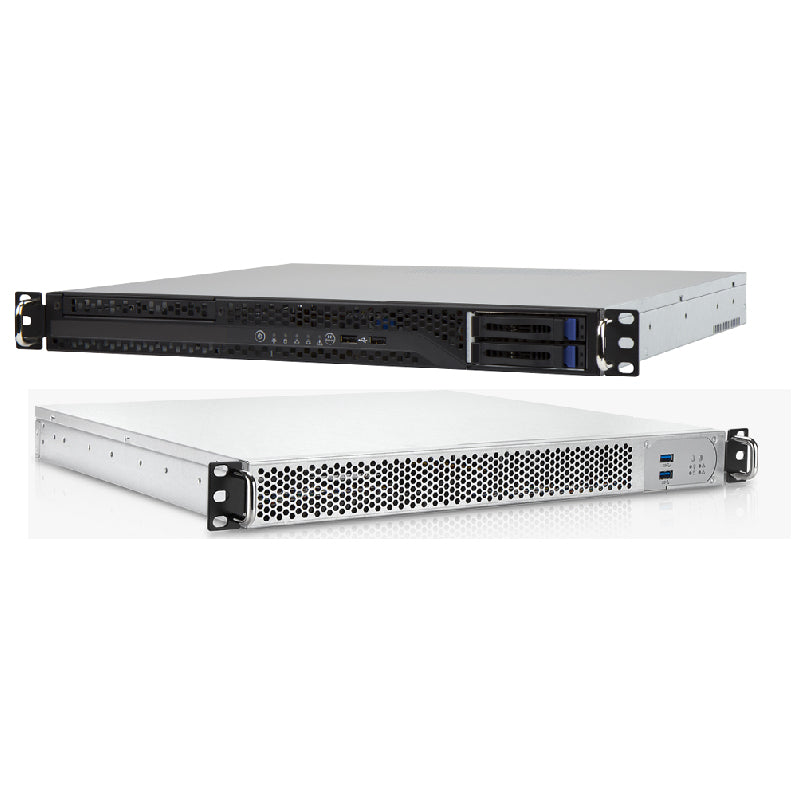

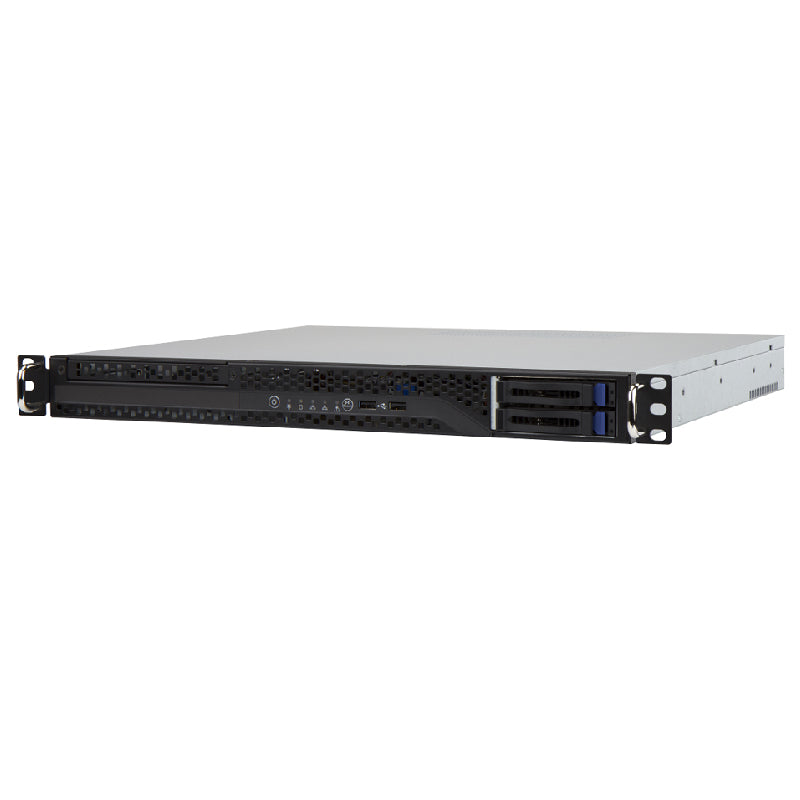

Xitrix® PowerFrame™ R-130

1U rack-optimized server system delivering highly integrated solutions for cost-sensitive customers

Xitrix® PowerFrame™ R-130 Entry-level server platforms featuring the all new Intel Xeon E-2100 Series processor product family are ideal for value-conscious companies looking for their first server or a robust and affordable alternative to desktop system used as a server. Built with advanced security features, this system is designed for 24/7 dependability and improve business productivity with industry leading performance. They are easy to set up and manage, and are ideal for use in secure data storage, file sharing, print and web services, and collaborative applications.

Intel® Xeon® processor E-2100 Series

 Improvements in processor speed, enhanced memory capabilities, hardware-enhanced security, and reliability all with support for the latest Intel® processor technology, the Intel® Xeon® E-2100 processor delivers a significant impact, especially compared with hardware that is just a few years old. With up to a 39% overall performance increase, compared to a 2017 Intel® Xeon® E3-1200 V6 processor, the Intel® Xeon® E-2100 processor delivers performance to manage today’s most demanding entry workloads. The Intel® Xeon® E-2100 processor supports up to 3.8 GHz base frequency with Intel® Turbo Boost Technology 2.0 frequency up to 4.7 GHz.

24x7 Dependability

PowerFrame™ R-130 Servers based on the Intel Xeon processor E-2100 product family are designed for continuous operation to keep your business up and running at all times. features, such as efficient power supplies, ECC Memory and quiet chassis options, increase system reliability.

Advanced Data Protection with ECC Memory

Avoid business interruptions with automatic data checking for errors, providing increased reliability for the storage of your business data and execution of your critical workloads. Intel® Xeon® E-2100 processor supports DDR4 memory speeds up to 2666 MHz



Stay Ahead of Data Center Demands with Enterprise SSD

Meet heavy 24/7 workload demands with Enterprise SSDs, optimized for server and data center environments. Experience a consistent level of performance with superb endurance, low latency and high-level Quality of Service (QoS). These powerful SSDs also provide enterprise-grade power-loss protection and low power consumption.

Intel® Rapid Storage Technology (Intel® RST)

Protect your critical business information with redundant storage capabilities that allow quick recovery in the event of a hard drive failure




Configuration
  • Supports Single Intel® Xeon™ E-2100 Series Processors; Up to 6 Core and 12 Threads
  • Supports Up to 64GB ECC DDR4 2666MHz System Memory
  • Two Hot Swappable 2.5inch SSD Drives with Up to 10TB internal 3.5inch Drive
  • Dual Intel® Gigabit Server LAN with Teaming function; Supports PXE; LAN1 supports NCSI
  • Dedicated 1GB Management Port with IPMI 2.0




Specification

Processors

The PowerFrame™ R-130 is equipped with a Single Socket Multi-Core Intel® Xeon® E-2100 series Processors

Supports up to 6 Cores and 12Threads

Core Chipset

Intel® C242 Server Chipset

Supported Operating System

Microsoft® Windows® Server 2016 (64 bit)

Linux

- RedHat Enterprise Linux Server 6.9 (64 bit) / 7.4 (64 bit)

- SUSE Enterprise Linux Server 11 SP4 (64 bit) /

12 SP3 (64 bit)

- Ubuntu 15.10 (64 bit) / 16.04 (64 bit)

*Please refer to our website for the latest OS support list.

System Memory

4 DIMMs sockets supporting up to 64GB of Unbuffered ECC DDR4 memory

Supported memory type: Two Channel Native 2133MHz/2444MHz/2666MHz

Hard Drive Controller

Intel® C242: 6x SATA3 6Gb/s (SATA0-5, SATA0 supports SATA DOM, and is shared with M.2(PCIE3.0(x2))/ SATA3)

Hard Drives

Up to one 3.5inch 10TB Enterprise SATA Drive 7200 RPM

Up to Two 2.5inch Enterprise SSD Drive

Up to 2 Hot Swappable 2.5inch SATA / SSD Drive

Chassis

1U Fixed Hard Drive Chassis

Two Fixed 2.5inch SATA / SSD Hard Drive or

One Fixed 3.5inch SATA /SSD and One Fixed 2.5inch Drive

1U Chassis with Two Hot Swappale Drive Bays

Two Hot Swappable 2.5inch SATA / SSD Drives

One Fixed 3.5inch SATA / SSD Drive

RAID Features

Integrated SATA SW RAID levels 0/1/10

SW RAID Options Intel® RSTe SATA RAID 0/1/10/5

Optional validated RAID Controllers

Optical Drive

Optional 8x DVD±R ± RW Drive w/dbl layer write capability

Network Controller

Embedded Dual Intel® i210 Dual Gigabit Controller and and

Dedicated 1 GbE management port with - Watch Dog and NMI

Supports Dual LAN with Teaming function; Supports PXE; LAN1 supports NCSI

Optional Intel® 10 Gigabit Dual Port Server Adapter via Add on Card

PCI Slots

One x8 PCI Express* Gen 3 PCI riser slot capable of supporting a low-profile PCI Express* add-in card which consumes power less than 15W

Graphics

Integrated graphics; Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

Input / Output

Four USB 3.0 Ports

Two Front USB 2.0 Ports

2 LAN Ports

1 Dedicated Gigabit Port for Management

1 VGA Port,Serial Port,

System status LED, Hard-drive activity LED, Power LED

Chassis

1U Rack-Mount Server

381 x 482.6 x 44.4 mm (15" x 19" x 1.75")

Power Supply

315-watt, non-redundant High Efficiency 80plus PFC Power Supply

System Cooling

Supports 40 x 28 mm PWM Fan x 3

Management

Hardware

Integrated IPMI 2.0 with KVM and Dedicated LAN

Server Software

Built in System Management Software

Standard Warranty

and Service

Offerings

Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy;
1-Year Next Business Day On-site Service
Optional 3 Years Next Business Day on-site




Services
 Standard Warranty and Service Offerings
  • Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy;
  • 1-Year Next Business Day On-site Service
  • Optional 3 Years Next Business Day on-site



Downloads
Title Date Filename
PowerFrame R-130 Product Brochure Data Sheet OS: Adobe Acrobat Reader July 7 2020 POWERFRAME R-130.pdf Download
