DeskFrame™ E310 SFF

  • Sale
  • Regular price ₱20,800.00
Tax included.



Features




Configuration
  • Support 14th Gen Intel® Core™ Series Processor
  • Up to 64GB DDR4 System Memory
  • Supports Dual Drive configuration
  • Small Form Factor Chassis
  • Wireless AC, with Bluetooth Module, Gigabit LAN
  • Energy Star Certified



Gallery





Specification

Processors

Support for 14th Gen Intel® Core™ i3, i5 and i7 processor series

Support for 12th and 13th Gen Intel® Core™ i3, i5 and i7 processor series

Supports Intel® Celeron™ Processor and Intel® Pentium™ Processor

Core Chipset

Intel® H610 Express Chipset

Operating System

Supports Microsoft Windows 11 Home and Professional; 64 bit; Supports Windows 10

System Memory

Two DDR4 SDRAM Dual Inline Memory Module (DIMM) sockets

Support for up to DDR4 3200 MHz  ; Support for up to 64 GB of system memory

Graphics

Integrated Intel® HD graphics engine

Optional 2GB nVidia GeForce GT710 and GT730/ 4GB GT730 Discrete Graphic Card

Storage Options

Up to 14TB Serial ATA 6Gb/s Hard Drive

Up to 4TB M.2 NVME SSD

Up to 4TB SATA 6Gb/s SSD Solid State Drive

Supports Dual Drive ( 3.5inch and 2.5inch)

Media Storage

Optional 8x DVD Writer Drive; Built in Media Card Reader

Audio

Intel® High Definition Audio (Intel® HD Audio)

Peripheral Interfaces

Standard Front Ports: Two Super Speed USB 3.0 front and Two USB 2.0 ports, 2x Audio Jack Ports, 1x Type C Port

Optional Front Ports: Four Super Speed USB 3.2 Type A front , 2x Audio Jack Ports, 1x USB 3.2 Type C Port

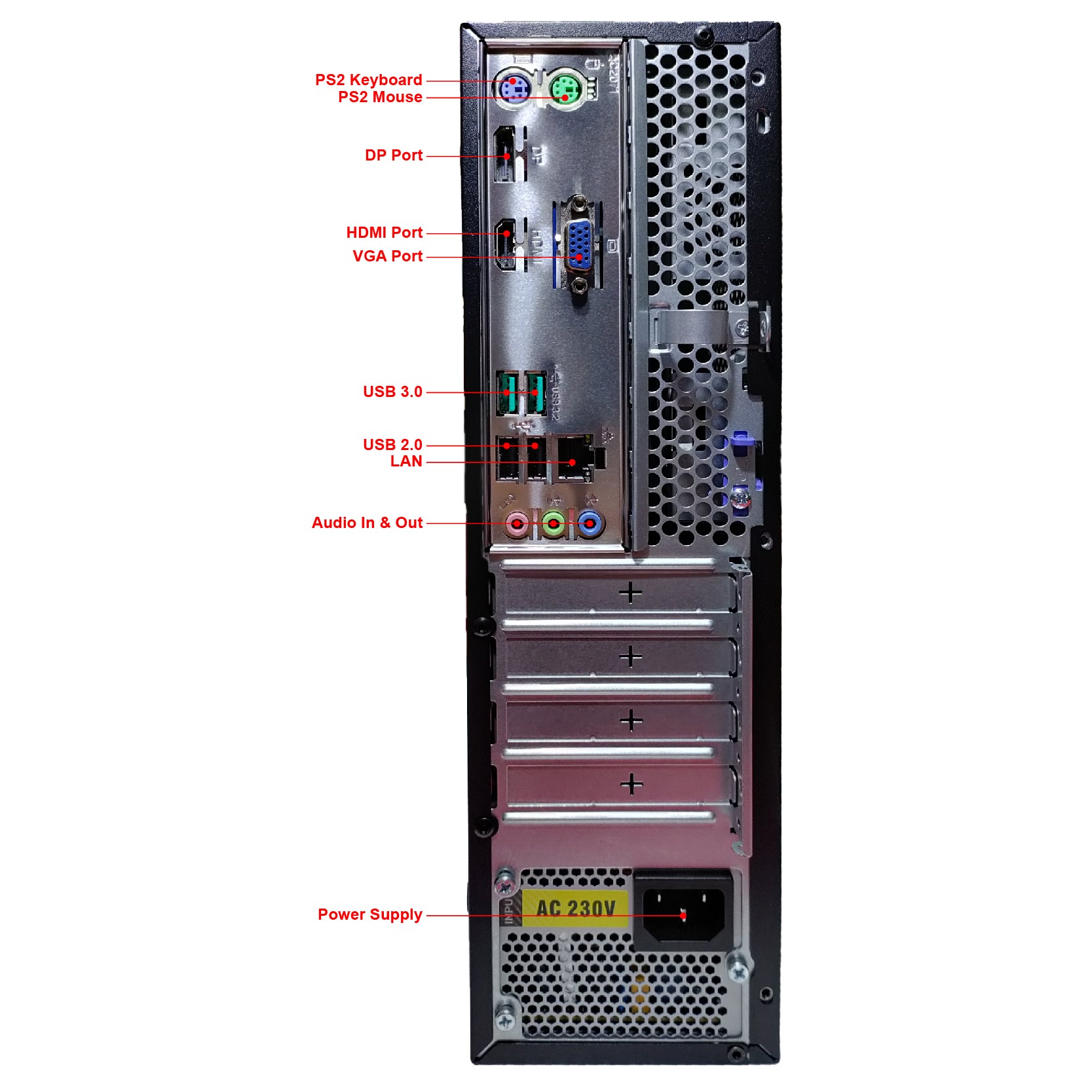

Rear Ports: 2 X USB 3.2 Gen 2x1 Type A port(s), 2 X USB2.0 port(s), 2x PS2 Ports, 3 Audio Jack Ports (Line Out/Line In/Mic In), 1 x HDMI 2.0 Port, 1 x VGA Port, 1 x Display Port, 1 x RJ45 Port

Monitors

Choice of Xitrix® Branded Flat Panel LED Display

Slots

1 X PCI Express X16 Gen 4.0 slot(s); 1 X PCI Express X 1 Gen 3.0 slot(s); 1 X M.2 2242/2280 Storage Slot, 1 x M.2 2230 Slot for Wifi

LAN Support

(10/100/1000 Mb/s) LAN subsystem Gigabit Ethernet Controller

Optional Intel® Dual Band Wi-Fi 6 AX201 2x2 AX + Bluetooth 5.2

Chassis Type

Dimension

Power Supply

Xitrix DeskFrame Small Form Factor 8.5L Tool Free Chassis; Optional Internal Chassis Audio Speaker

327x 95x 283mm(8.8L)With Front Panel

250Watts High Efficiency 80Plus Power Supply; Optional 350Watts High Efficiency 80Plus Power Supply

Accessories

Xitrix Ergonomic Design USB Business Keyboard and Mouse with Mouse Pad

Standard Warranty and Service Offerings

Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service

Optional 3 Years Next Business Day on-site





Services
 Standard Warranty and Service Offerings
  • Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service
    Optional 3 Years Next Business Day on-site



Downloads
Title Date Filename
E-310 SFF Product Brochure Data Sheet OS: Adobe Acrobat Reader Jan, 2024 Deskframe-E310-SFF.pdf Download
Driver Name OS (Operating System) Description
DeskFrame E310 Windows 10 64Bit Chipset Download
DeskFrame E310 Windows 10 64Bit ME Download
DeskFrame E310 Windows 10 64Bit LAN Download
DeskFrame E310 Windows 10 64Bit AUDIO Download
DeskFrame E310 Windows 10 64Bit VIDEO Download
DeskFrame E310 Windows 10 64Bit BIOS Download
