OptoFrame™ W530 3G

  • Sale
  • Regular price Available Soon!!!
  • Will be in stock after
Tax included.



Configuration

Expert workstation system for the most demanding design and analytic applications

  • Support Up two 3rd Gen Intel® Xeon® Scalable family
  • Up to 40Cores and 80 Threads per processor
  • Up to 2TB ECC DDR4 System Memory
  • Up to 5 Hot Swappable SATA / SAS Hard Drive
  • Supports RAID Configuration
  • Up to 48GB nVidia Quadro RTX Professional Graphic Card
  • Dual Intel® Server Gigabit LAN



Specification

Processors

Supports Up to Dual 3rd Generation Intel® Xeon® Scalable Processors

Core Chipset

Intel® C621 chipset

Operating System

Microsoft® Windows® 11 Professional; 64bit version

System Memory

16memory sockets; Capacity:  Support up to 512GB RDIMM/1,024GB LRDIMM/2,048GB LDRIMM

Memory Type: Supports DDR4 3200MHz R DIMM/LR DIMM

Optional Graphics

Support for Dual PCI Express® x16 Gen 4 graphics cards

NVIDIA RTX Professional Graphic Card

Optical Drive

24x DVD±R ± RW Drive

Hard Drive

SATA 6Gb/s connectors Support Raid 0, 1, 5, 10

Optional 8 Port SATA / SAS 12Gb/s RAID Card W/ Support for ( RAID 0, 1, 5, 6,10, 50, JBOD)

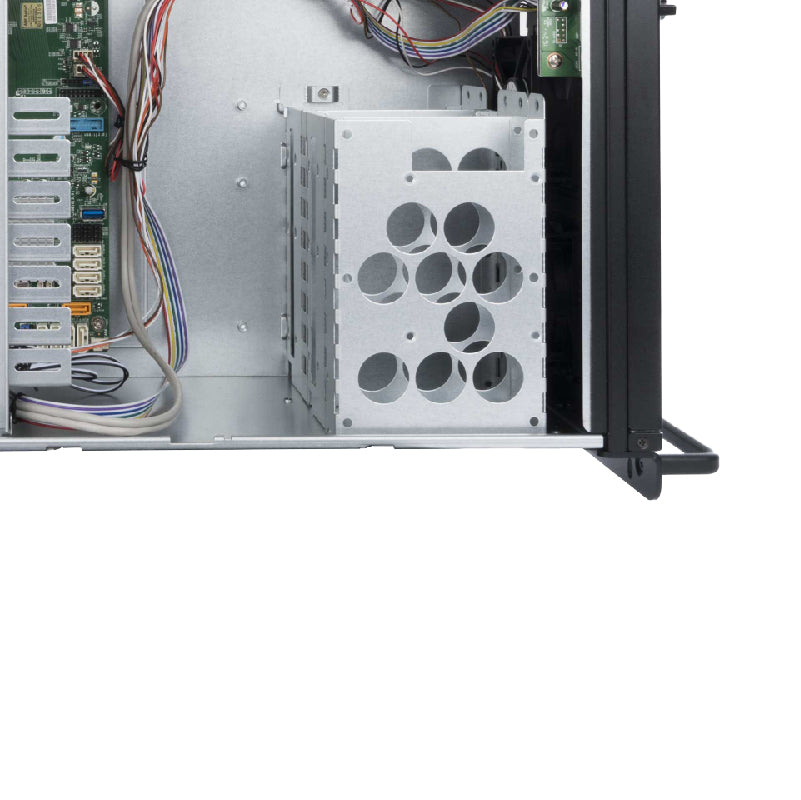

Standard Fixed Hard Drive Cage; Upgradeable to 5 Hotswappable 3.5inch Hard Drives or 2.5inch SSD Drives

I/O Ports

2 x LAN (RJ45) port(s);

2 x SuperSpeed USB 3.0; 4 x USB 2.0 (2 Front and 2 Rear)

3 x Back Audio Port

IEEE-1394 Firewire Rear Port ( Optional); 2 Front SuperSpeed USB 3.0 Port ( Optional)

Front Panel 5.25-inch All in Add on Kit ( 2x SuperSpeed USB 3.0 Ports, 1x USB 2.0 Port, 1x IEEE Firewire Port, E-SATA Port, Multi Card reader)

Monitors

Choice of Xitrix® Branded Flat Panel LCD and LED Display

Expansion Capabilities

Five PCI Express® x16 Gen Gen 4

One PCI-E Gen4 x8 slots

One NVME Gen 4 SSD

LAN Support

Dual Intel® I350 Gigabit LAN Controller(s); Optional Intel® Server Gigabit Quad Port via Add on Card

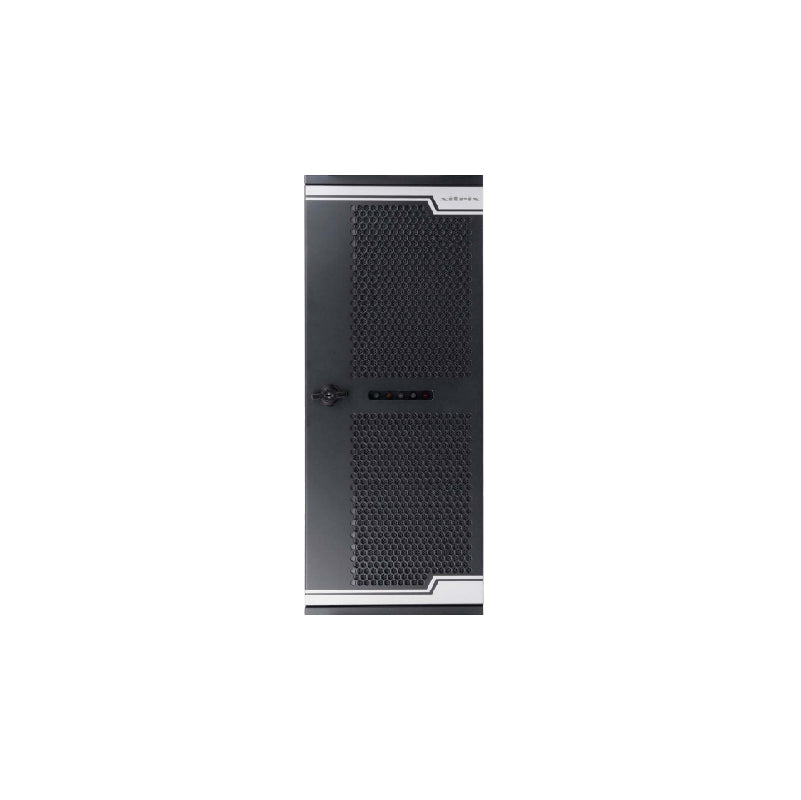

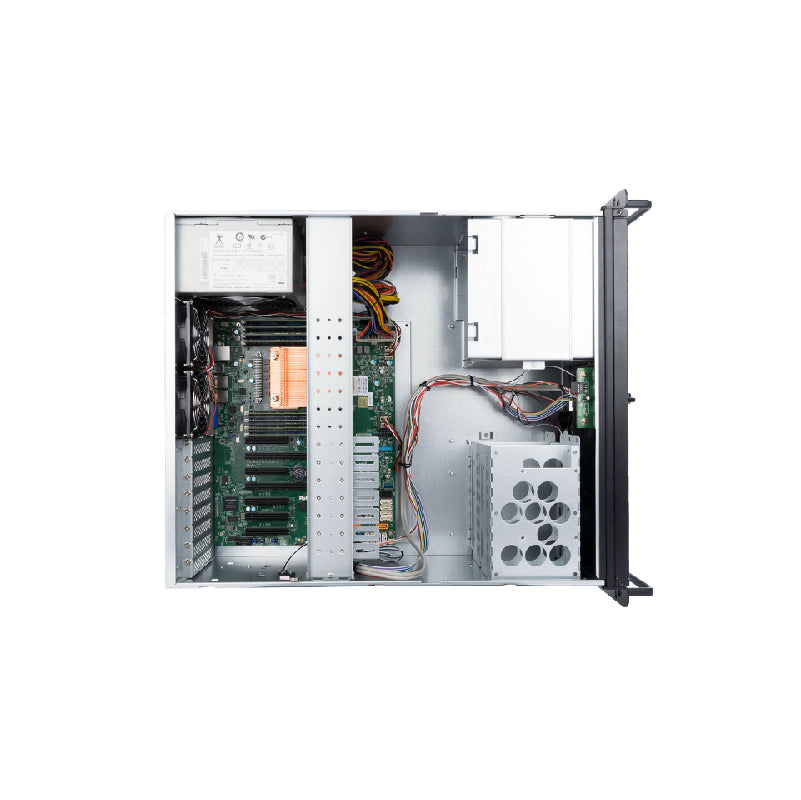

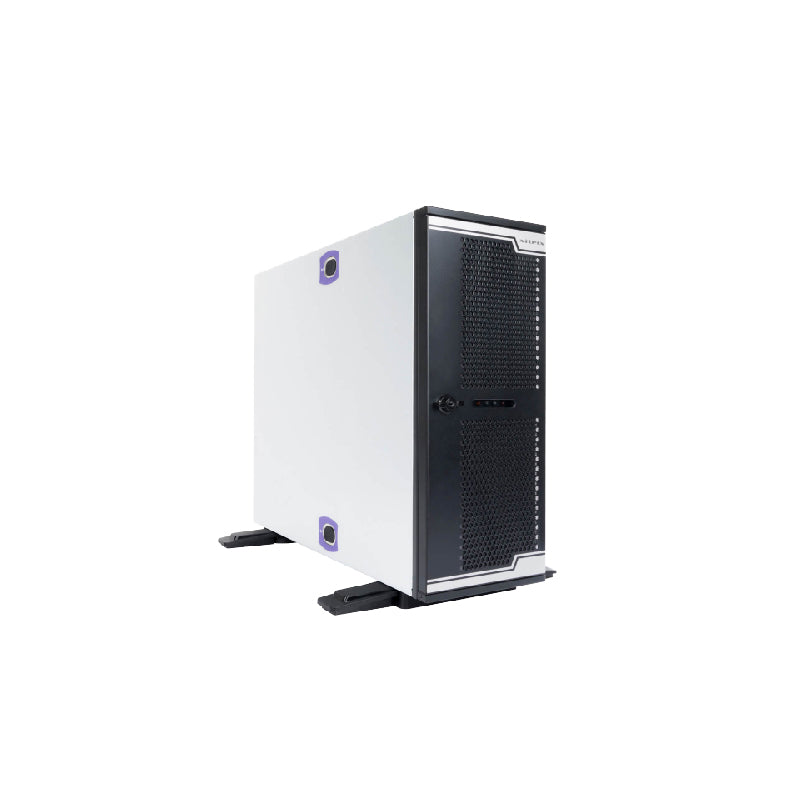

Chassis

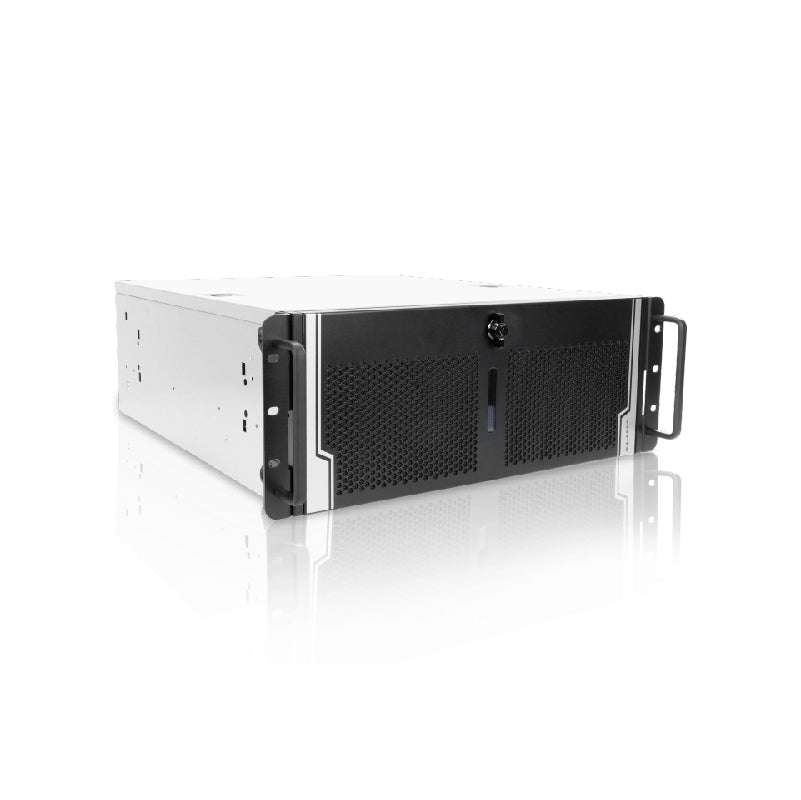

Industrial Grade Pedestal Server Chassis convertible to 4U Rack-Mount Server

Supports Pedestal and 4U Rack Chassis

 146 x 42 x 180mm (Dimension WxHxD)

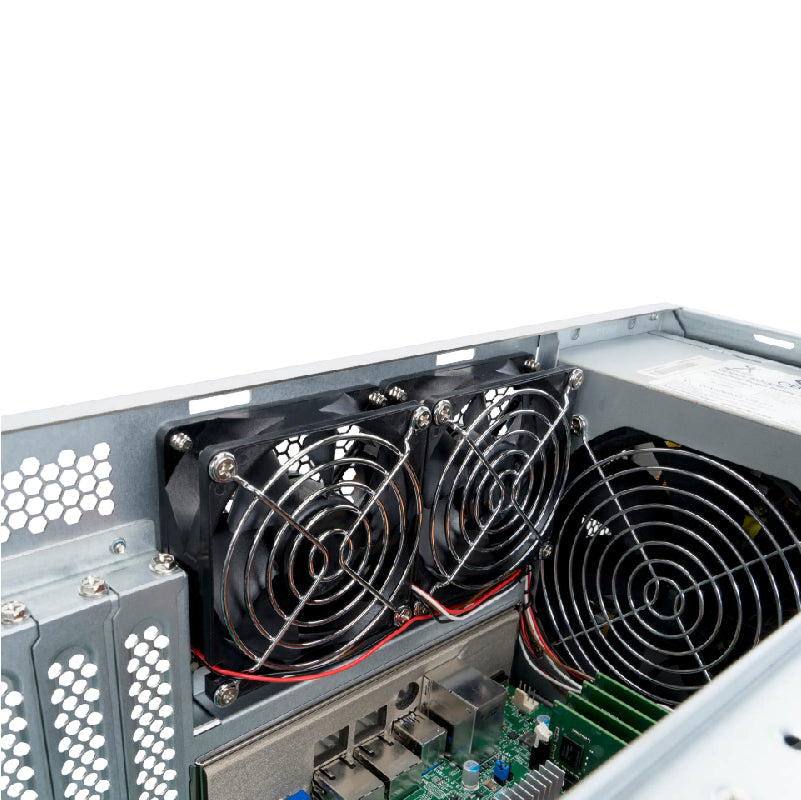

Chassis Fan

• 80 x 25mm PWM rear fan x 2, 4500RPM

• 80 x 25mm PWM rear fan x 2 (optional), 4200RPM

• 80 x 25mm PWM rear fan x 2 (optional), 4500RPM

Power Supply

1050Watts High Efficiency 80Plus Gold Power Supply Supports SLI & Crossfire Multi-GPU VGA card (Single CPU Configuration) or 1,600w High Efficiency 80Plus Gold Rated Power Supply Supports SLI & Crossfire Multi-GPU VGA card (Multi CPU Configuration)

Standard Warranty

and Service

Offerings

Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service

Optional 3 Years Next Business Day on-site



Services
 Standard Warranty and Service Offerings
  • Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy;
  • 1-Year Next Business Day On-site Service
  • Optional 3 Years Next Business Day on-site
