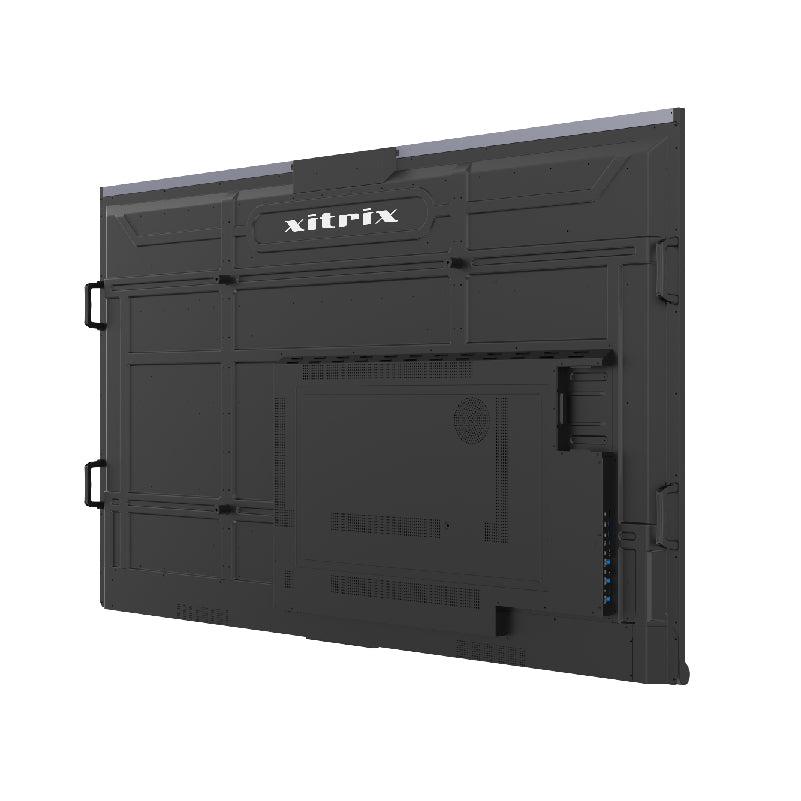

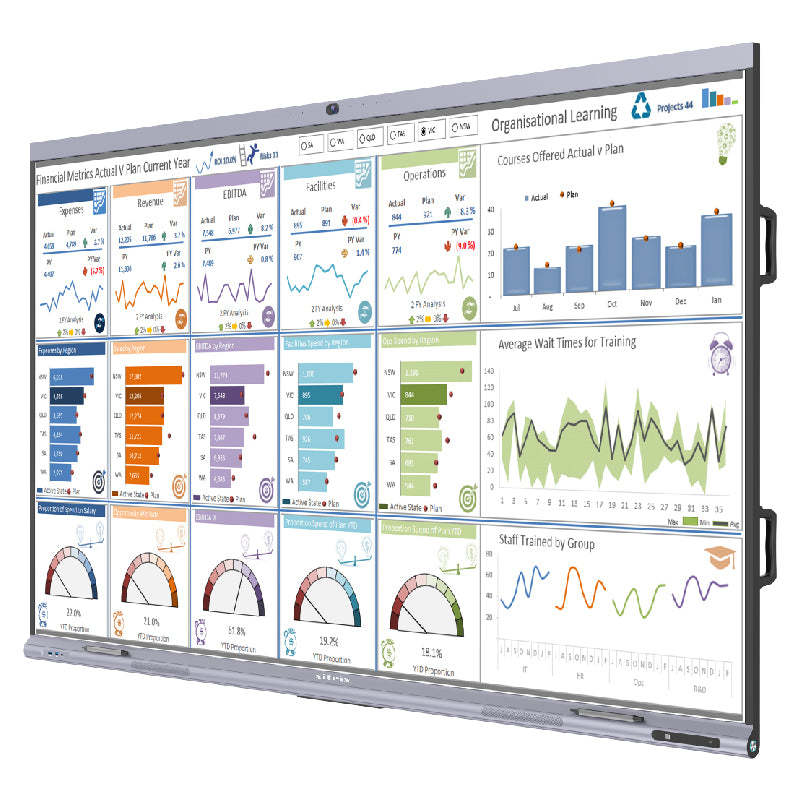

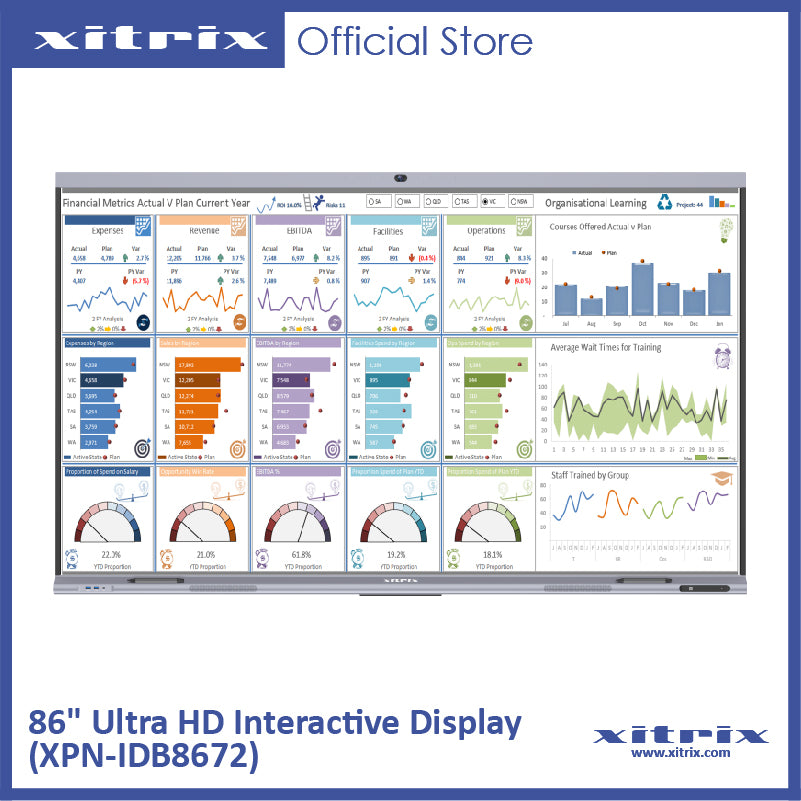

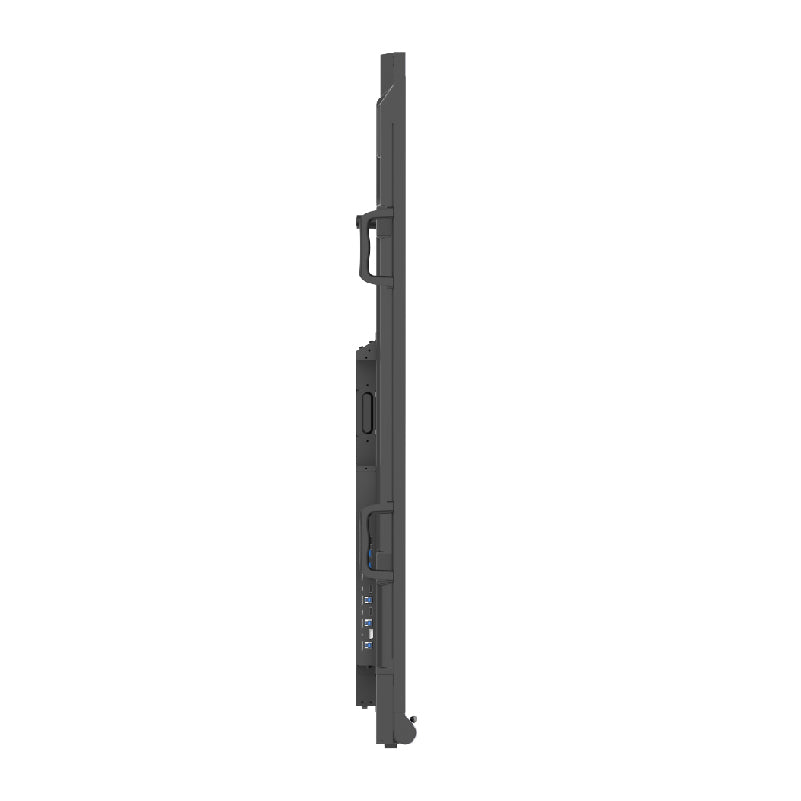

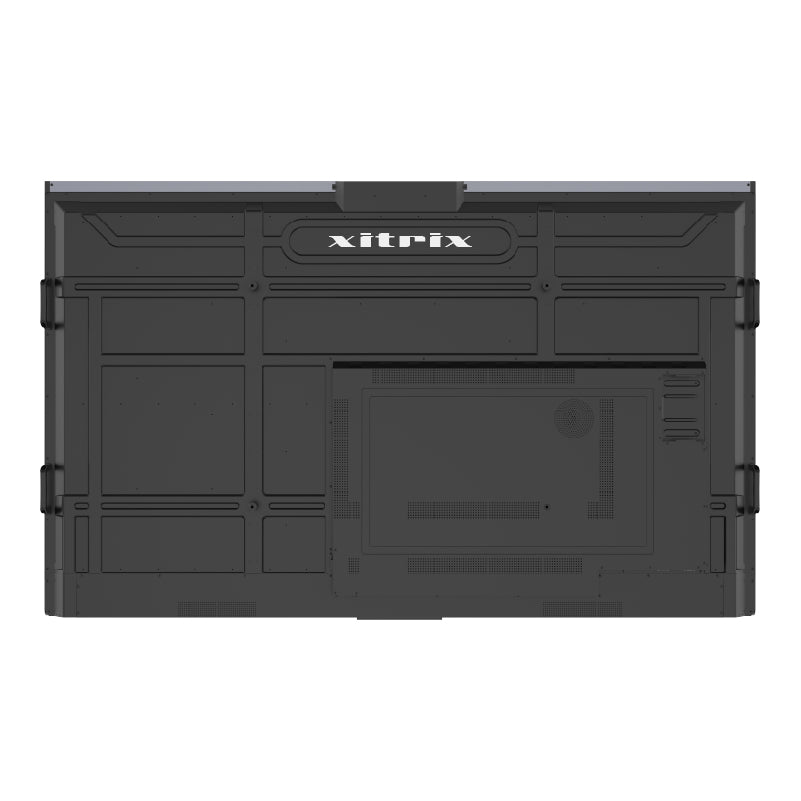

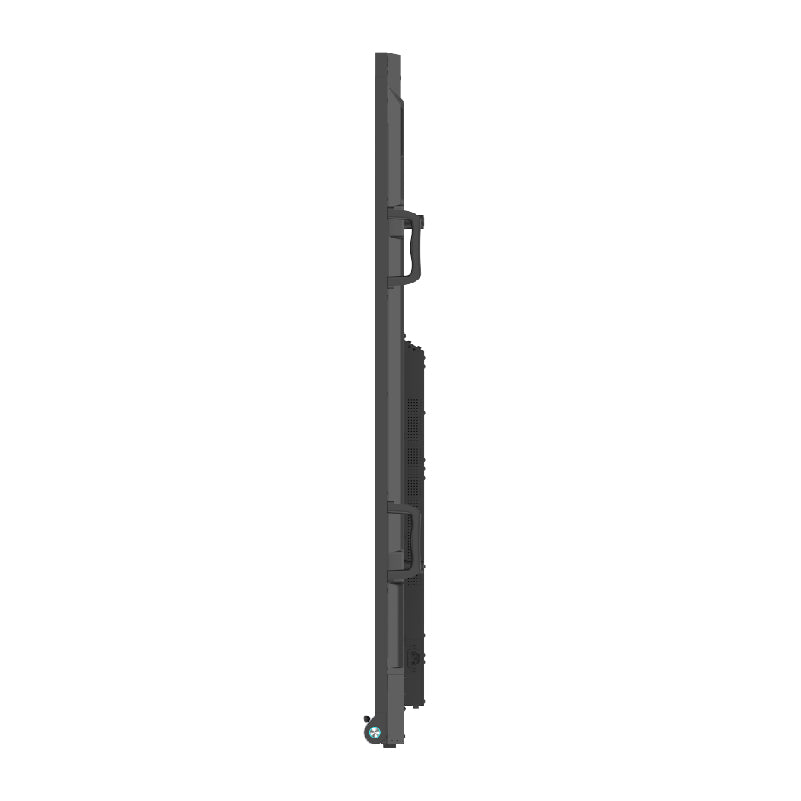

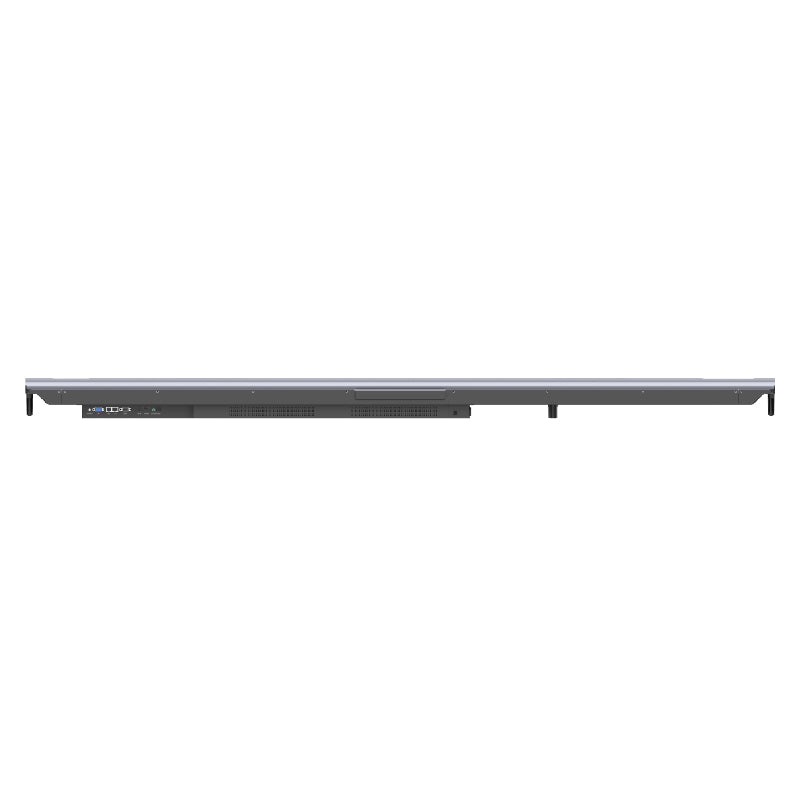

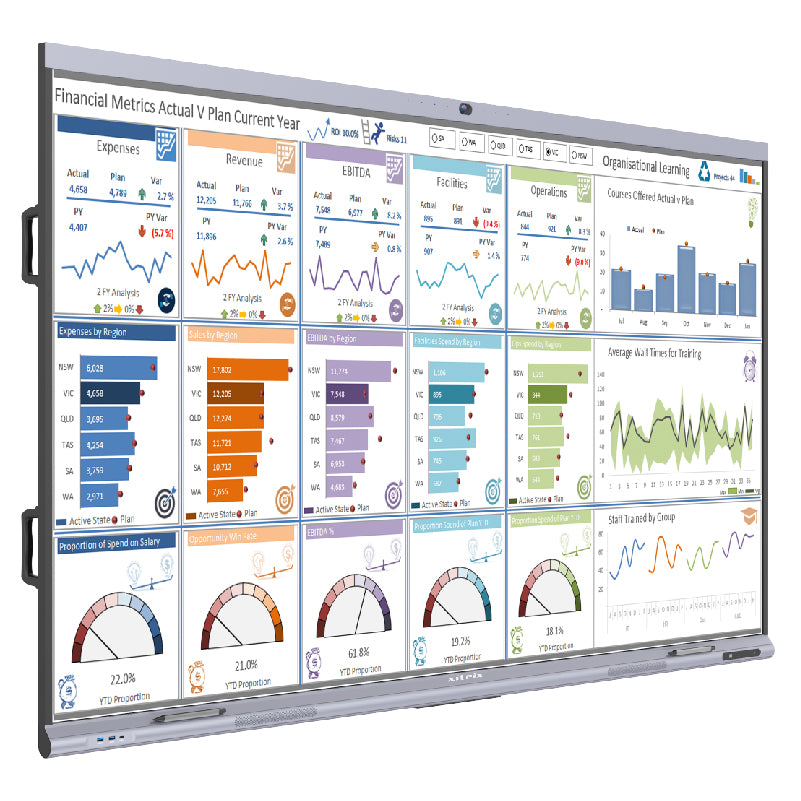

Xitrix® 86" Ultra HD Interactive Display (XPN-IDB8672)

  • Sale
  • Regular price Will be Available Soon!!!
  • Will be in stock after
Tax included.



Product Name XPN-IDB8672
Panel specifications Size 85.6"
Display scale 16:9
Backlight type D-LED edge Type
Maximum resolution 3840x2160(pixels)
Refreshing Frequency 60Hz
Brightness Min.:350nits;Typ.:400nits
Contrast ratio Typ:1200:1
Pixel Pitch 0.4935(H)x0.4935(V)
Viewing Area 1895.04(H)x1065.96(V)
Viewing angle H:178 º,V:178º
Response time Typ.:8ms
Display Colors 1.07B(10bit)
Life time 30,000hrs(min.)
Color Gamut(NTSC) 72%
Structure Net Weight 66±1.5kg
Gross Weight 77±1.5kg
Bezel U/D/L/R U:43mm , L/R:15.2mm  , D:56mm
Product Size(W  x D x H) 1961.8mm x105.6mm  x1207.7mm
Package Size(W x D x H) 2160mm x225mm x1310mm
Housing Material Aluminum/Metal
Housing Color Black
VESA 4-M8 Screw hole 800mmx600mm
Electrical Power requirements AC 100 V ~ 240 V, 50/60 Hz
Maximum Power consumption  without
OPS Power DC 18V/5A
Power consumption in standby mode <0.5W
Audio Output Power 2x15W/8 Ω
Motherboard  model   XPN-A311D2
Android CPU Cortex A73+A53,Max  2.2GHz ,Quad core
GPU MaliG52 MP8
RAM / ROM 4GB RAM / 64GB Flash Up to 8GB RAM /128GB Storage
OS Android 13
Lanugage OSD Chinese/English/Egypt/Denmark/Netherlands/finnish/French/German/Greek/Italian/Japanese/ Korea/Norwegian/Polish/Portugue/Romania/Russian/Spanish/Swedish/Turkish/Czech
Mainboard Interface HDMI IN(2.0) x2(HDMI1 support ARC)
DP IN (1.2) x1
Type-C USB x1(DFP Mode only)(PD 15W)
Audio IN x1
OPS(Optional) x1
LAN x2(10M/100M/1000Mbps  Base-T)
USB 2.0 x1
USB 3.0 x2
Touch-USB (3.0) x3
RS232 IN x1
Audio OUT x1
Front Interface Type-C x1
USB x2(USB3.0)
NFC standard ISO/IEC 14443 A / ISO/IEC 14443 B
Support card type MIFARE FeliCa
Read-write distance <30mm
Read/write speed 106 To 424kbps
Read and write latency <100ms
Dual WIFI(Optional) Main Chipset Mediatek MT7663BU+Realtek  RTL8822BU
Operating Frequency 2.4GHz/5GHz
WI-FI Standard 802.11a/b/g/n/ac
Bluetooth 2.1+EDR/4.2/5.0
Camera Size 8 MEGAPIXEL
Array Size MJPEG : 3840*2160(30fps),1920*1080(30fps),1280*720(30fps)
Array Mic Array quantity 8-mic
Pick up Area 8m(Angle:45°~135°)
AEC) support
AGC support
Speech enhancement support
Steady-state noise suppression capability 20dB
sensitivity -26(dB,dBFS@1kHz  1Pa)
output signal USB output
Touch Sensing Type Infrared Touch Frame
Surface Protection 3.2mm Toughened Glass
Infrared Touch 40 Points
Interpolation  Resolution 32768 x32768
Touch Accuracy the middle 90% area±1mm
Response Time ≤10ms
Output Mode HID Standard
Theory Clicks Unlimited
Minimum Touch Object Single touch ≥1.6mm,Multiple  touch ≥2mm
Connect Type USB2.0 Full Speed
Voltage DC+5V±5%
Power Consumption ≤2W
Windows 11/10/8/7,Android Multiple Touch
Environment Working Temperature 0℃ ~ 40℃
Storage Temperature -10℃ ~ 60℃
Operating Humidity 20% ~ 80% RH Non-Condensing
Storage humidity 10% ~ 80% RH Non-Condensing
Operating altitude ≤5000m
The longest service time (Hour x Day) 18 Hours x 7 days
Packaging / Accessories Remote Control x1
Touch Pen x2
3M Power Cord x1
3M USB A-B Cable x1
3M HDMI Cable x1
Instruction x1
Warranty card x1
Wall Mount x1
S21k infrared pressure sensitive pen x1(Optional)
