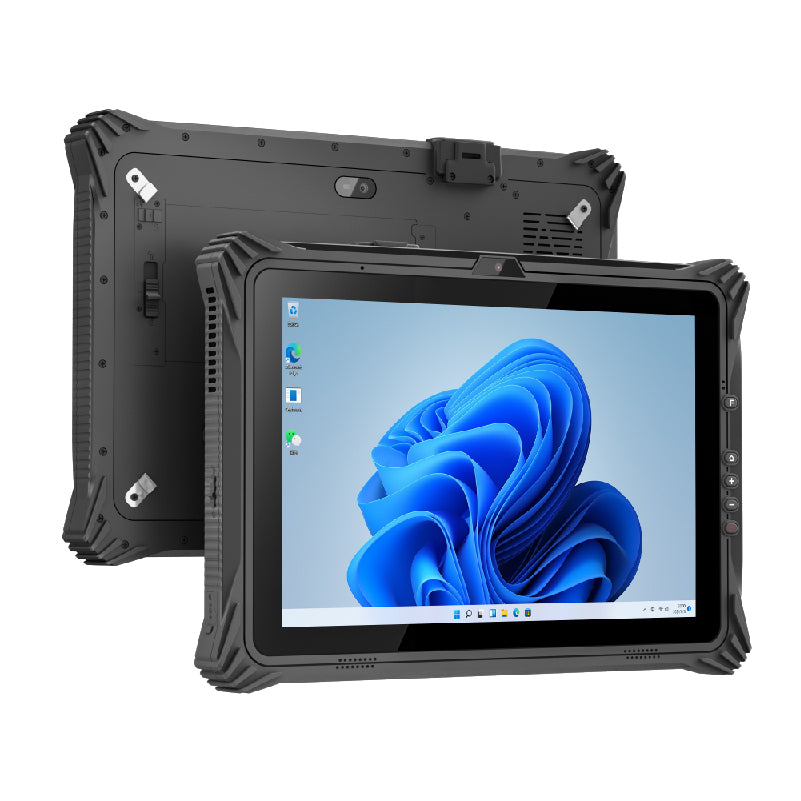

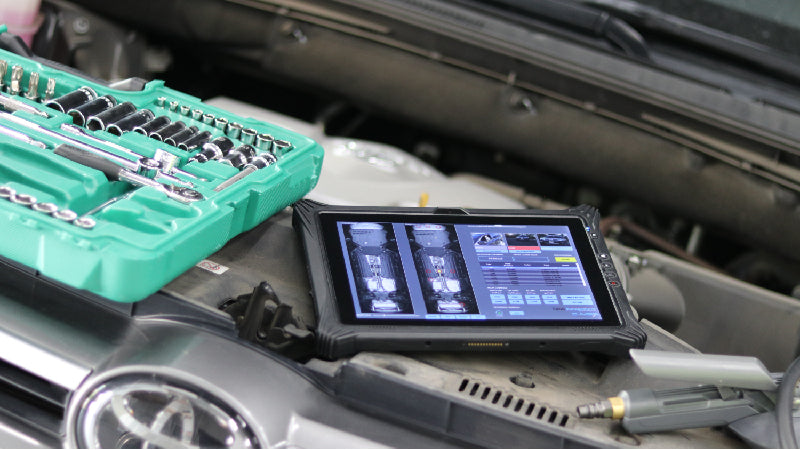

TravelPad™ W10-R

• 12th Gen Intel® Core™ i5 and i7 Processors

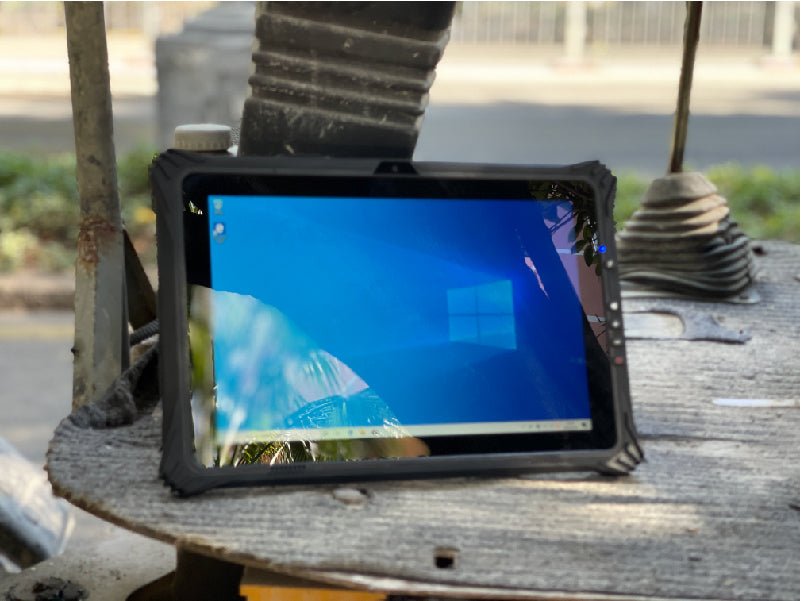

• 650nits Sunlight Readable 12.2” Display
• 10POINT Multi Touch Gorilla Glass
• 8GB /16GB DDR4 Up to 512GB SSD
• Microsoft Windows 11 Operating System

Supported Processors

Intel® Core™ i7-1255U Processor 12M Cache, up to 4.70 GHz (10 Cores / 12 Threads)

Intel® Core™ i5-1235U Processor 12M Cache, up to 4.40 GHz (10 Cores / 12 Threads)

Display Size

Size: 12.2 inch 16:10 1200*1920 Resolution

Brightness: 650cd/㎡

10 points capacity TP, G+G, Hardness over 7H, Scratch resistant, Support stylus

Operating System

Microsoft® Windows® 11 Home or Professional 64bit; Supports Windows 10

System Memory

Core™ i7-1255U (16GB DDR4 System Memory)

Core™ i5-1235U (8GB DDR4 System Memory)

Storage

256GB, 512GB M.2 NVME SSD Drive

Graphics

Intel® Iris® Xe Graphics

Connectivity

Built in 10/100/1000Mb Base-TX Ethernet LAN

Built in Intel® Dual Band Wi-Fi 6E AX201 2x2 AX + Bluetooth 5.1; CNVi M.2 2230

4G LTE Micro Sim

BT5.1 (BLE) class1  Transmited distance：10

Built in 2.0M HD Front video camera; 8.0M HD Rear video camera

Audio

8Ω/1W Waterproof Speaker *1

Sensitivity: - 44dB±3DB

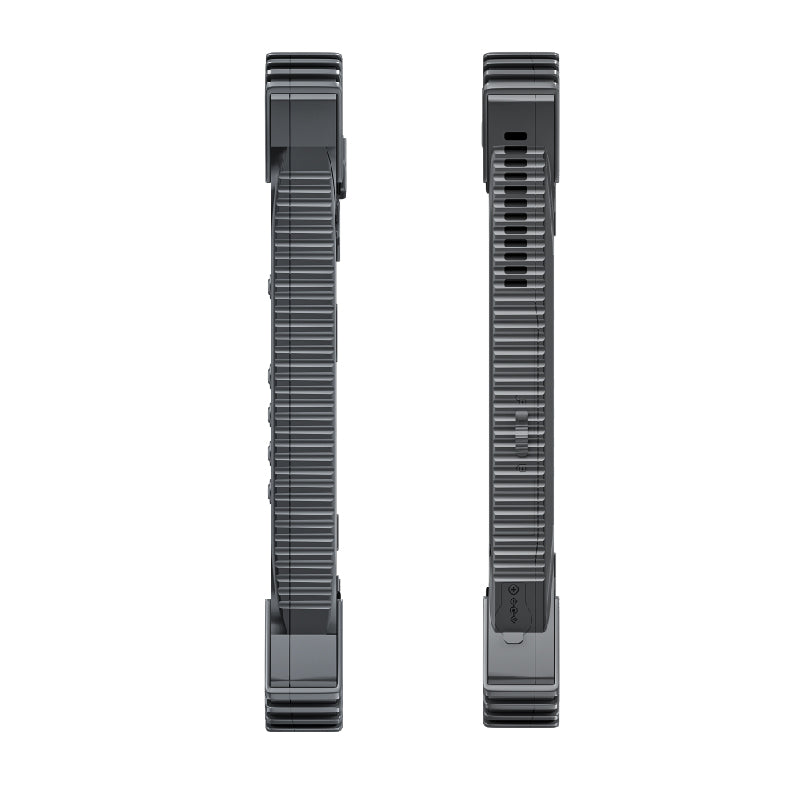

Side Buttons

Power *1

Volume Key + *1

Volume Key - *1

Windows Home *1

F Key *1 (Barcode Scanning, Customizable without barcode)

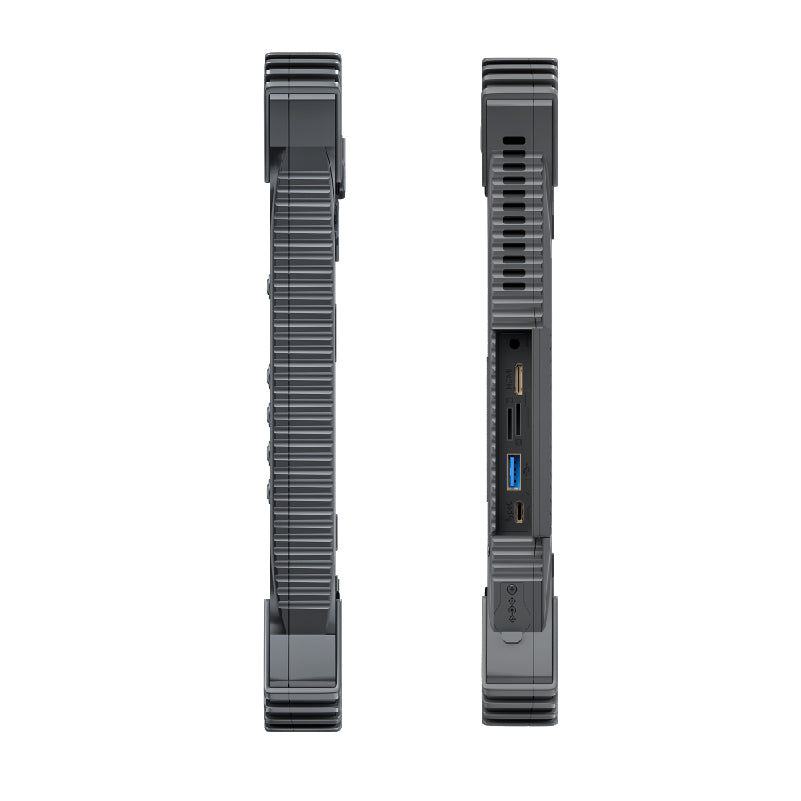

Ports

USB3.0 *1

Type C (USB3.0/HDMI/Charging) *1

∮3.5mm Standard earjack  *1

HDMI 1.4a mini *1

SIM card  *1, TF card *1，Max: 128GB

DC  19V 3.42A jack  *1

12PIN Pogo Pin (USB/Docking charging) *1

Power

AC100V ~ 240V, 19V 3.42A/65W Output

Build in Lithium-ion polymer battery,  Non-removable: 7.4V/700mAh 30mins ( 50% volume sounds, 200 nits brightness, 1080P HD video display by default )

Removable Li-polyment Battery 7.4V/6300mAh  4hrs ( 50% volume sounds, 200 nits brightness, 1080P HD video display by default )

Dimension

339.3*230.3*26 mm; 1500g

Standard Warranty and Service Offerings

Service Offerings 1-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service

• Service Offerings 1-Year Limited Parts Warranty & Technical Support Policy;
• 1-Year Next Business Day On-site Service
