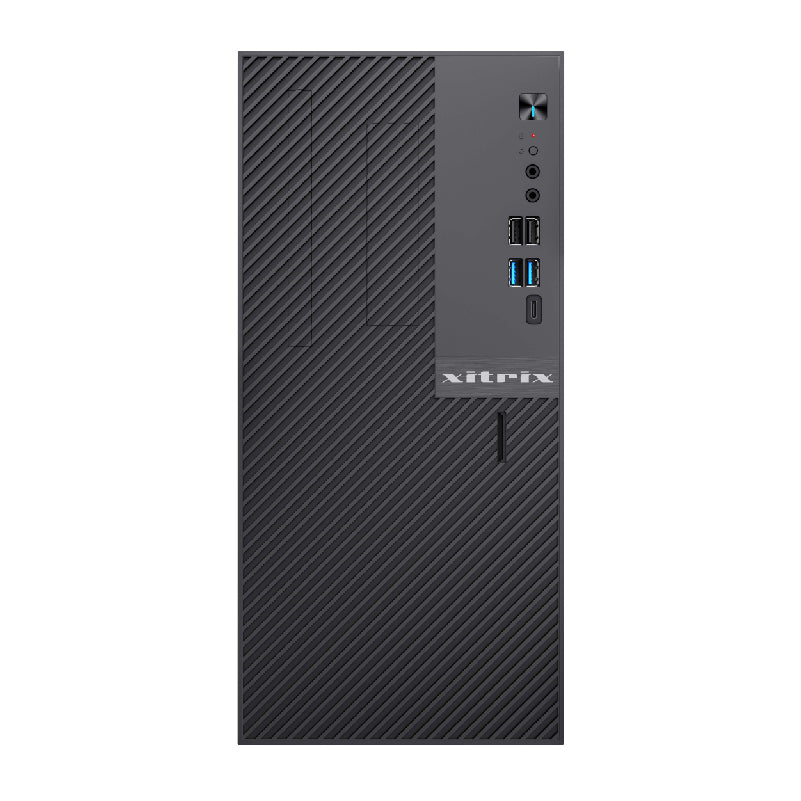

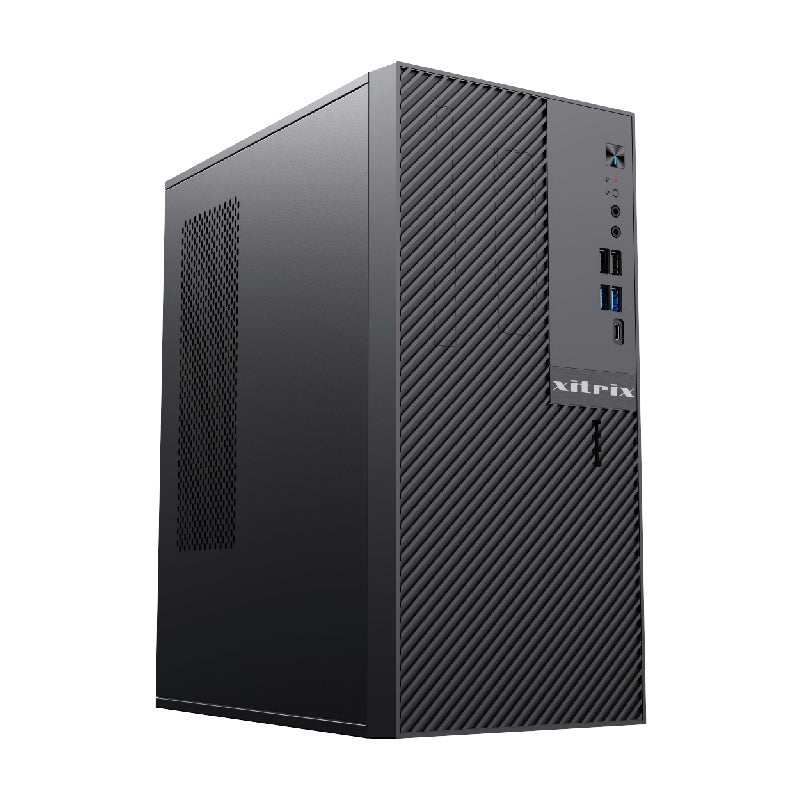

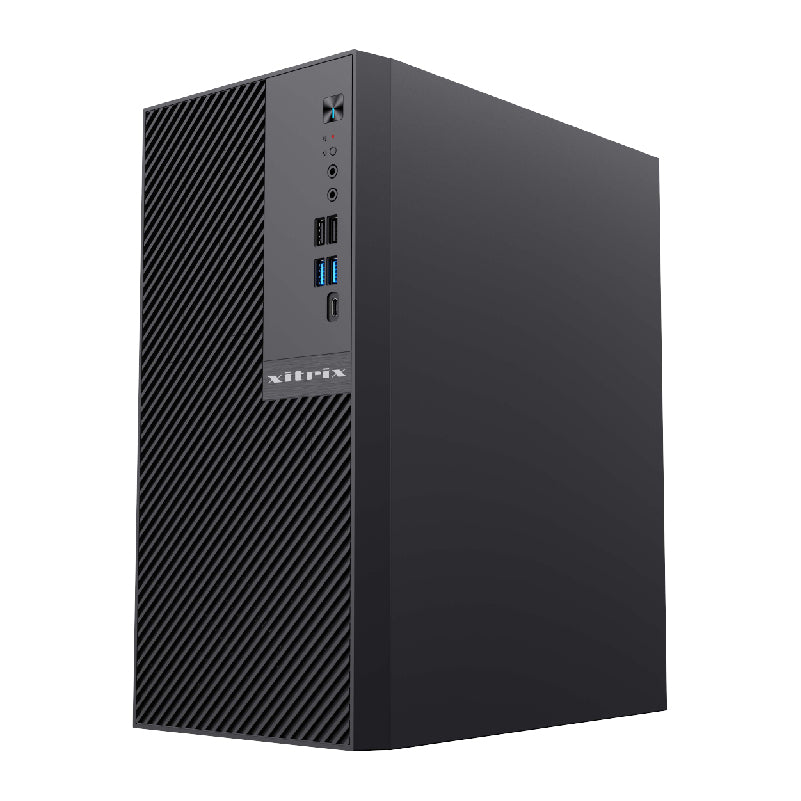

DeskFrame™ E310 Mid Tower (DDR5)

• Support 13th Gen Intel® Core™ Series Processor
• Up to 96GB DDR5 System Memory
• Supports Dual Drive configuration
• Built to order up to 1000 Watts Power Supply; Up to up to 320mm GPU
• Energy Star Certified

Processors

Support for 13th Gen Intel® Core™ i3, i5 and i7 processor series

Support for 12th Gen Intel® Core™ i3, i5 and i7 processor series

Supports Intel® Celeron™ Processor and Intel® Pentium™ Processor

Core Chipset

Intel® B760 Express Chipset

Operating System

Microsoft Windows 11 Home and Professional; 64 bit

System Memory

Two DDR5 SDRAM Dual Inline Memory Module (DIMM) sockets; Supports up to 96 GB Memory

Supports Dual Channel DDR5 4800/ 5200(OC)/ 5400(OC)/ 5600(OC)/ 6000+(OC)

Graphics

Integrated Intel® HD graphics engine

Optional 2GB nVidia GeForce GT710/GT730 / 4GB GT730 Discrete Graphic Card

Up to nVidia RTX4070 12GB GDDR6X / 21 Gbps / 192-bit Discrete Graphic Card

up to 320mm GPU / Video Card Length

Hard Drive

Up to 18TB Serial ATA 6Gb/s Hard Drive

Up to 4TB M.2 NVME SSD

Up to 4TB SATA 6Gb/s SSD Solid State Drive

Supports Triple Drive Configuration ( 1x 3.5inch and 2 x 2.5inch)

Media Storage

Optional USB 8x DVD Writer Drive; Optional Media Card Reader

Audio

Intel® High Definition Audio (Intel® HD Audio)

Peripheral Interfaces

Front Ports: Two Super Speed USB 3.0 front and Two USB 2.0 Front Port; 1x Audio Combo Jack Ports, 1x Type C Port

Rear Ports: 2 X USB 3.2 Type A port(s), 4 X USB2.0 port(s), 1x PS2 Port, 3 Audio Jack Ports (Line Out/Line In/Mic In), 1 x HDMI 2.0 Port, 1 x VGA Port, 1 x DVI Port, 1 x RJ45 Port, 1 x WIFI Antenna Port

Monitors

Choice of Xitrix® Branded Flat Panel LED Display

Slots

1 X PCI Express X16 Gen 4.0 slot(s); 1 X PCI Express X 1 Gen 3.0 slot(s); 1 X M.2 2242/2280 Storage Slot, 1 x M.2 2230 Slot for Wifi; up to 320mm GPU / Video Card Length

LAN Support

2.5GB LAN subsystem Gigabit Ethernet Controller 10/ 100/ 1000/ 2500 Mb/s

Optional Intel® Dual Band Wi-Fi 6 AX201 2x2 AX + Bluetooth 5.2

Chassis Type

Dimension

Power Supply

Xitrix DeskFrame Mid Tower Tool Free All Metal Chassis; Optional Internal Chassis Audio Speaker

(L)265*(W)168*(H)353mm

Standard: 300 Watts Energy Efficient 80 Plus Power Supply

Optional Built to Order Up to 1000 Watts High Efficiency 80Plus Power Supply

Accessories

Xitrix Ergonomic Design USB Business Keyboard and Mouse with Mouse Pad

Standard Warranty and Service Offerings

Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service

Optional 3 Years Next Business Day on-site
