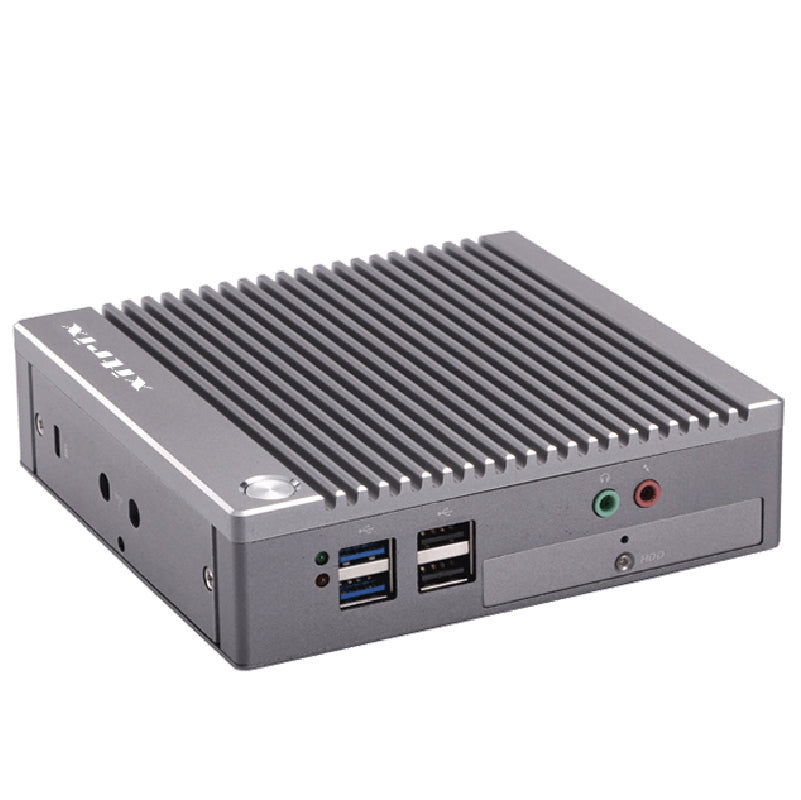

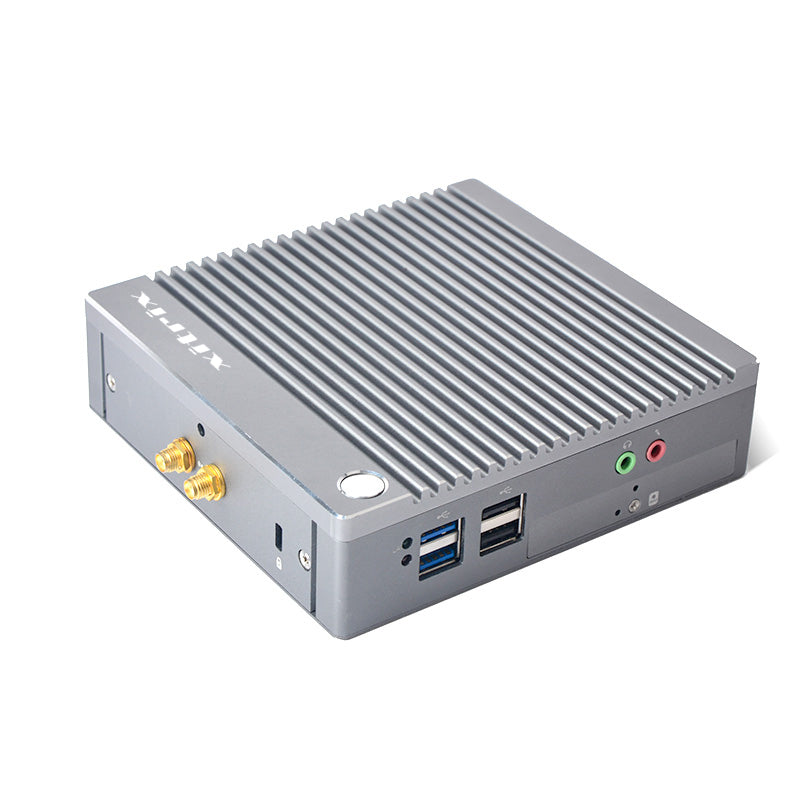

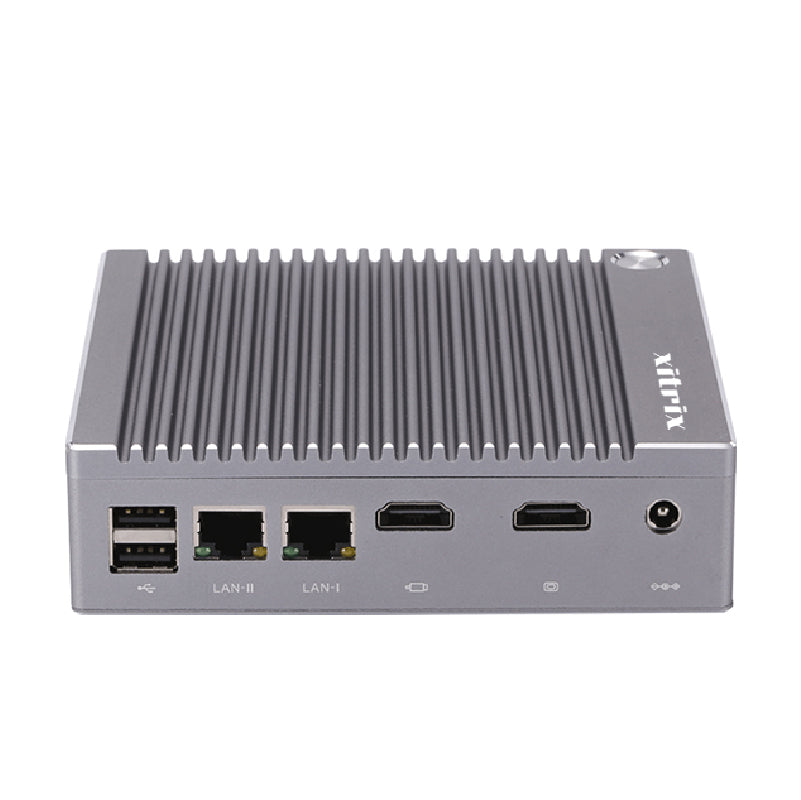

DeskFrame™ Mini B3

Reliable performance and affordable priced IPCs

• Support Quad Core Celeron Processor
• Built in 4GB System Memory
• Built in 64GB SSD; Up to 2TB SATA
• Built in Dual Gigabit Network
• Microsoft Windows 10 Operating System

Supported Processors

Quad Core Intel® Celeron® Processor N2940 (2M Cache, up to 2.25 GHz) w/ 2MB L2 Cache

Operating System

Microsoft Windows™ 10 Home or Professional

System Memory and Storage

4GB DDR3L System Memory; Up to 8GB
64GB eMMC Storage built-in
Up to 2TB 2.5inch SATA or SSD Drive
Up to 128GB Micro SD

Graphics

Integrated HD graphics engine

Audio

Integrated High Definition Audio

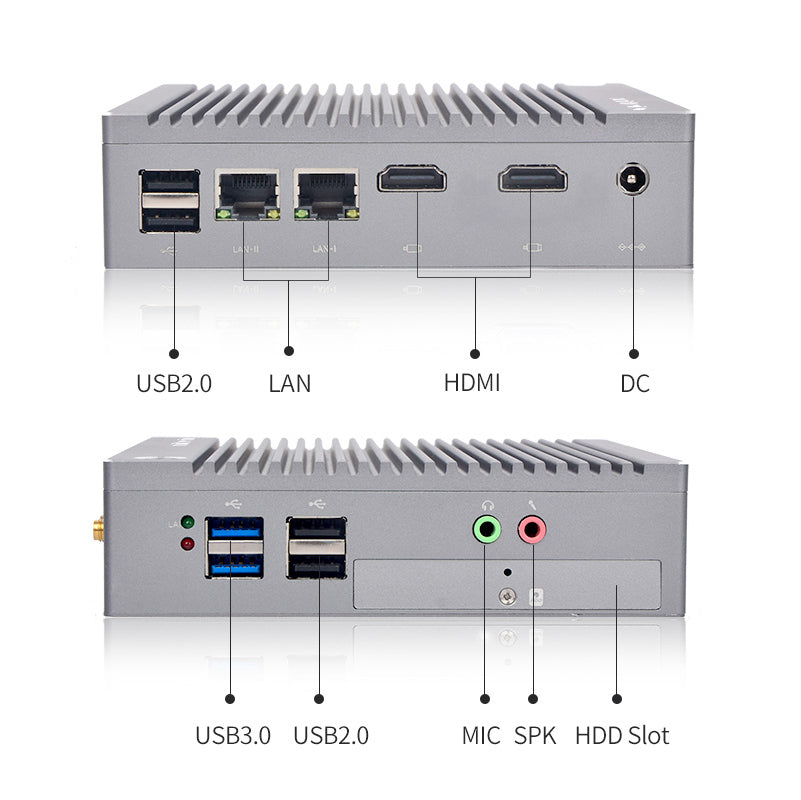

Connectivity

Integrated Dual 10/100/1000 Gigabit Ethernet Network Connection
Intel® Dual Band Wireless-AC 3165
Two SuperSpeed USB 3.0 port
Two Hi-Speed USB 2.0 ports
Two HDMI Port
Two Audio Jack
One DC IN Port

Power

Low Power AC Adapter 12V/3A Power adapter

Keyboard and Mouse

Standard Xitrix USB Multimedia Keyboard and Optical Scroll Mouse
Optional Wireless Keyboard and Mouse

Dimension

134X36.5X126XM

Operating Temperature

5% - 85% (non-condensing)

Packing Box

PC*1, 12V/3A Power adapter*1, power plug*1, user manual*1, warranty card*1, antenna*1, VESA mounting kit*1

Standard Warranty and Service Offerings

Service Offerings 1-Year Limited Parts Warranty & Technical Support Policy;
1-Year Next Business Day On-site Service
Optional 3 Years Next Business Day on-site

• Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy;
• 1-Year Next Business Day On-site Service
• Optional 3 Years Next Business Day on-site
