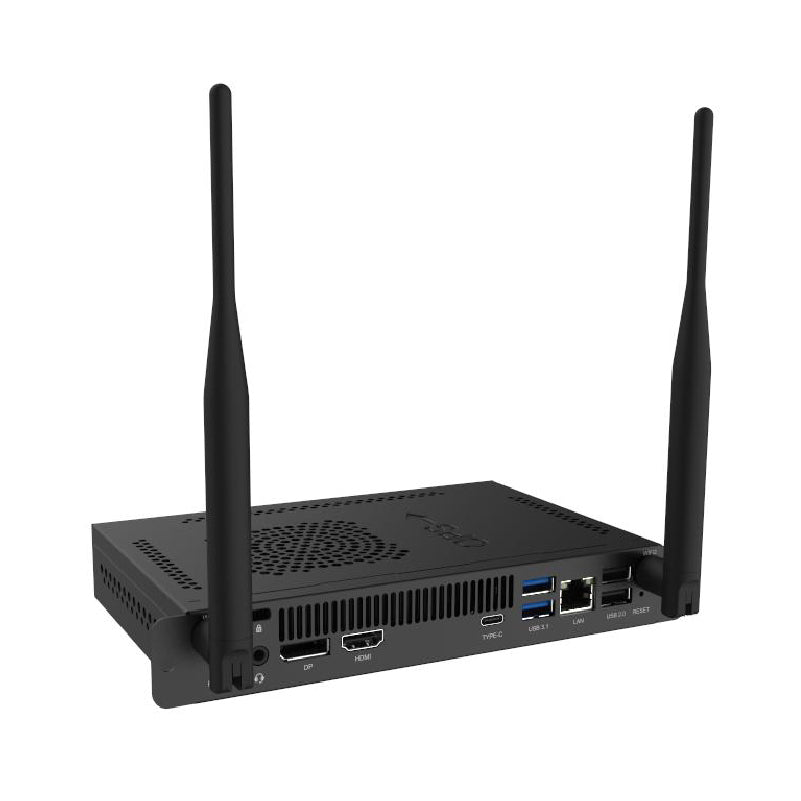

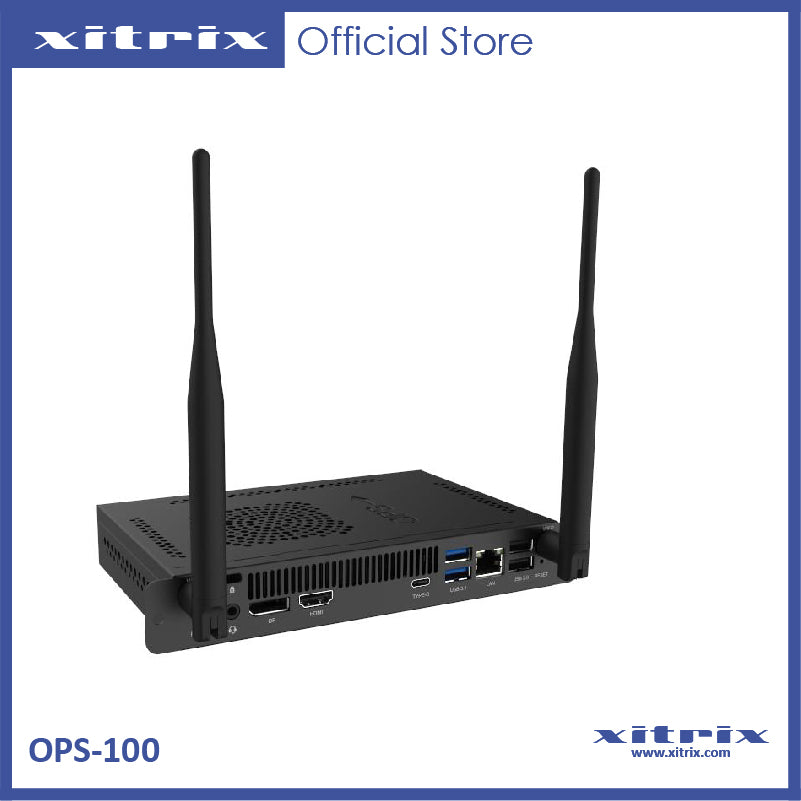

Xitrix® OPS-100

• Support 12th Gen and 13th Gen Intel® Core™ Series Processor
• Up to 64GB DDR4 System Memory
• Up to 4TB M.2 NVME SSD
• Small Form Factor Chassis
• Wireless AC, with Bluetooth Module, Gigabit LAN
• Comply with OPS standard module

Processors

Intel® Core™ i7-1355U Processor 12M Cache, up to 5.00 GHz ( 10 Cores / 12 Threads)

Intel® Core™ i5-1335U Processor 12M Cache, up to 4.60 GHz ( 10 Cores / 12 Threads)

Intel® Core™ i5-1235U Processor 12M Cache, up to 4.40 GHz ( 10 Cores / 12 Threads)

Intel® Core™ i7-1255U Processor 12M Cache, up to 4.70 GHz ( 10 Cores / 12 Threads)

Core Chipset

Intel SOC design

Operating System

Supports Microsoft Windows 11 Home and Professional; 64 bit; Supports Windows 10

System Memory

Two DDR4 SDRAM Dual Inline Memory Module (DIMM) sockets

Support for up to DDR4 3200 MHz  ; Support for up to 64 GB of system memory

Graphics

Integrated Intel® Xe graphics engine

Storage Options

Up to 4TB M.2 NVME SSD

Supoorts 256GB/512GB/1TB/2TB/4TB

Audio

Intel® High Definition Audio (Intel® HD Audio)

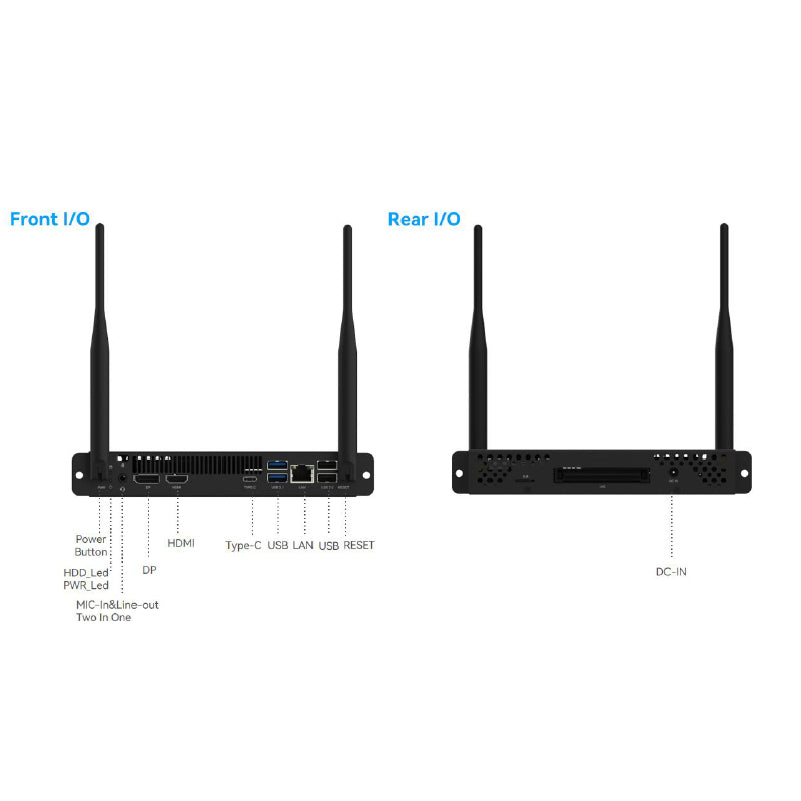

Front Panel  Interfaces

1 x DP1.4, 1 x HDMI1.4

2 x USB 2.0, 2 x USB 3.1, 1 x Type-C(USB3.1)

1 x RJ45

1 x Line out & MIC-In two in one connector

2 x Wi-Fi/BT ANT

OPS Interface

1 x 2.5/5.5 DC IN JACK

1 x HDMI2.0 4K60Hz output

1 x DP1.4 output

2 x USB2.0, 1 x USB3.0

1 x TTL

LAN Support

(10/100/1000 Mb/s) LAN subsystem Gigabit Ethernet Controller

Optional Intel® Dual Band Wi-Fi 6 AX201 2x2 AX + Bluetooth 5.2

Chassis Type

Dimension

Comply with OPS standard module，119(L) x 180(W) x 30(H) mm

Standard Warranty and Service Offerings

Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service

Optional 3 Years Next Business Day on-site
