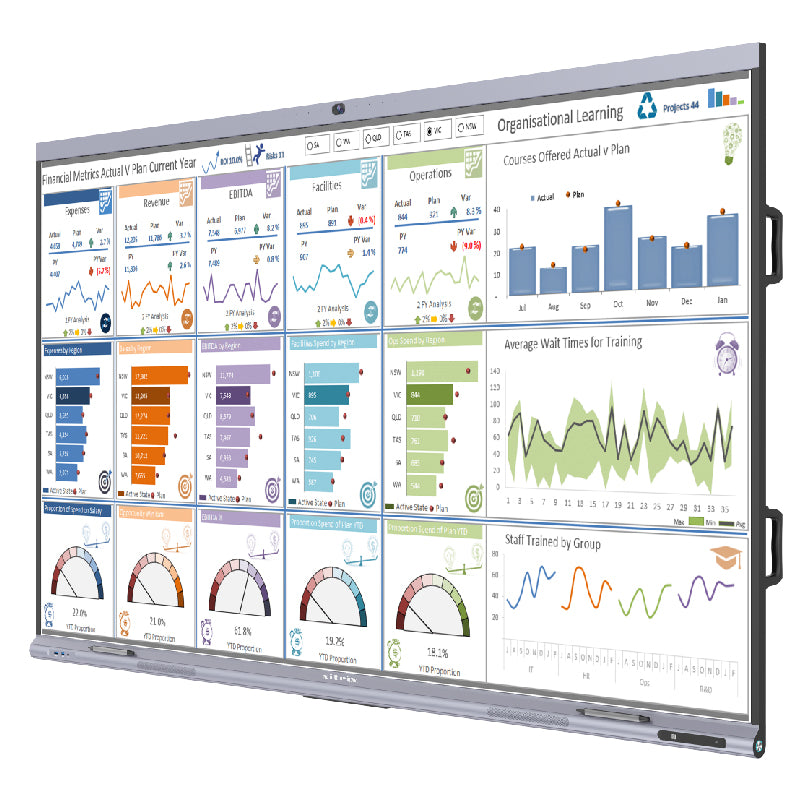

Product Name |
XPN-IDB6572 |
Panel specifications |
Size |
64.5" |
Display scale |
16:9 |
Backlight type |
D-LED edge Type |
Maximum resolution |
3840x2160(pixels) |
Refreshing Frequency |
60Hz |
Brightness |
Min.:300nits;Typ.:350nits |
Contrast ratio |
Typ:1200:1 |
Pixel Pitch |
0.372(H)x0.372(V) |
Viewing Area |
1428.48(H)x803.52(V) |
Viewing angle |
H:178º,V:178º |
Response time |
Typ.:8ms |
Display Colors |
1.07B(8bit+FRC) |
Life time |
30,000hrs(min.) |
Color Gamut(NTSC) |
72% |
Structure |
Net Weight |
38±1.5kg |
Gross Weight |
46±1.5kg |
Bezel U/D/L/R |
U:43mm , L/R:12.9mm , D:56mm |
Product Size(W x D x H) |
1482.1mm x105.6mm x936.7mm |
Package Size(W x D x H) |
1660mm x220mm x1010mm |
Housing Material |
Aluminum/Metal |
Housing Color |
Black |
VESA |
4-M8 Screw hole 600mmx400mm |
Electrical |
Power requirements |
AC 100 V ~ 240 V, 50/60 Hz |
Maximum Power consumption without OPS |
300W |
OPS Power |
DC 18V/5A |
Power consumption in standby mode |
<0.5W |
Audio Output Power |
2x15W/8 Ω |
Motherboard model |
|
XPN-A311D2 |
Android |
CPU |
Cortex A73+A53,Max 2.2GHz ,Quad core |
GPU |
MaliG52 MP8 |
RAM / ROM |
8GB RAM /128GB Storage |
OS |
Android 13 w/ Google Playstore |
Lanugage |
OSD |
Chinese/English/Egypt/Denmark/Netherlands/finnish/French/German/Greek/Italian/Japanese/ Korea/Norwegian/Polish/Portugue/Romania/Russian/Spanish/Swedish/Turkish/Czech |
Mainboard Interface |
HDMI IN(2.0) |
x2(HDMI1 support ARC) |
DP IN (1.2) |
x1 |
VGA IN |
x1 |
Type-C USB |
x1(DFP Mode only)(PD 15W) |
Audio IN |
x1 |
OPS(Optional) |
x1 |
LAN |
x2(10M/100M/1000Mbps Base-T) |
USB 2.0 |
x1 |
USB 3.0 |
x2 |
Touch-USB (3.0) |
x3 |
MIC IN |
x1 |
SPDIF |
x1 |
RS232 IN |
x1 |
HDMI OUT |
x1 |
Audio OUT |
x1 |
Front Interface |
Type-C |
x1 |
USB |
x2(USB3.0) |
NFC |
standard |
ISO/IEC 14443 A / ISO/IEC 14443 B |
Support card type |
MIFARE FeliCa |
Read-write distance |
<30mm |
Read/write speed |
106 To 424kbps |
Read and write latency |
<100ms |
Dual WIFI(Optional) |
Main Chipset |
Mediatek MT7663BU+Realtek RTL8822BU |
Operating Frequency |
2.4GHz/5GHz |
WI-FI Standard |
802.11a/b/g/n/ac |
Bluetooth |
2.1+EDR/4.2/5.0 |
Camera |
Size |
8 MEGAPIXEL |
FOV |
DIAGONAL 103° |
Array Size |
MJPEG : 3840*2160(30fps),1920*1080(30fps),1280*720(30fps) |
Array Mic |
Array quantity |
8-mic |
Pick up Area |
8m(Angle:45°~135°) |
AEC) |
support |
AGC |
support |
Speech enhancement |
support |
Steady-state noise suppression capability |
20dB |
sensitivity |
-26(dB,dBFS@1kHz 1Pa) |
output signal |
USB output |
Touch |
Sensing Type |
Infrared Touch Frame |
Surface Protection |
3.2mm Toughened Glass |
Infrared Touch |
40 Points |
Interpolation Resolution |
32768 x32768 |
Touch Accuracy |
the middle 90% area±1mm |
Response Time |
≤10ms |
Output Mode |
HID Standard |
Theory Clicks |
Unlimited |
Minimum Touch Object |
Single touch ≥1.6mm,Multiple touch ≥2mm |
Connect Type |
USB2.0 Full Speed |
Voltage |
DC+5V±5% |
Power Consumption |
≤2W |
Windows 11/10/8/7,Android |
Multiple Touch |
Environment |
Working Temperature |
0℃ ~ 40℃ |
Storage Temperature |
-10℃ ~ 60℃ |
Operating Humidity |
20% ~ 80% RH Non-Condensing |
Storage humidity |
10% ~ 80% RH Non-Condensing |
Operating altitude |
≤5000m |
The longest service time (Hour x Day) |
18 Hours x 7 days |
Packaging / Accessories |
Remote Control |
x1 |
Touch Pen |
x2 |
3M Power Cord |
x1 |
3M USB A-B Cable |
x1 |
3M HDMI Cable |
x1 |
Instruction |
x1 |
Warranty card |
x1 |
Wall Mount |
x1 |
S21k infrared pressure sensitive pen |
x1(Optional) |
