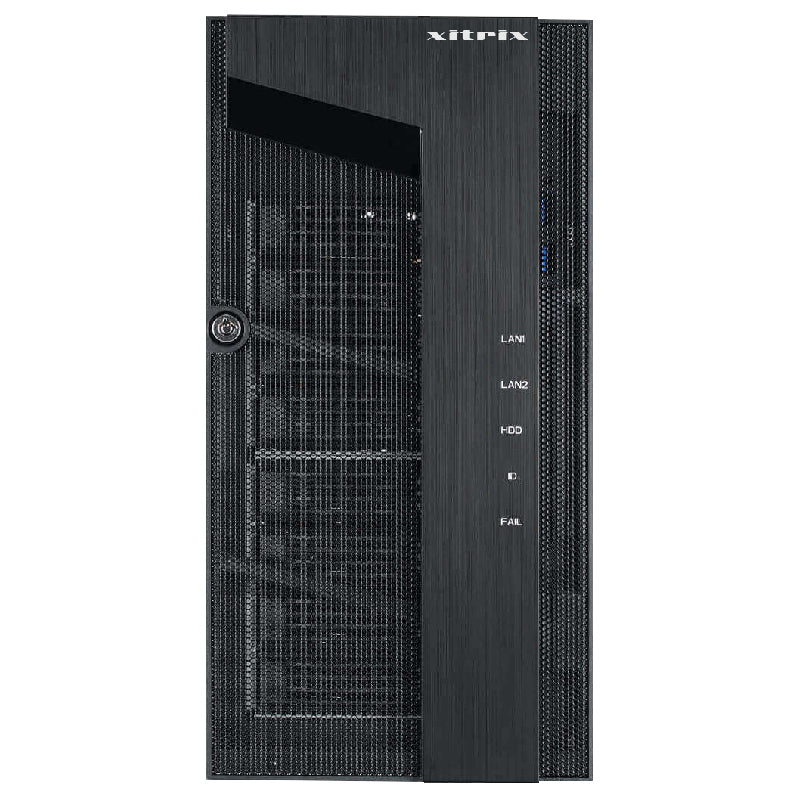

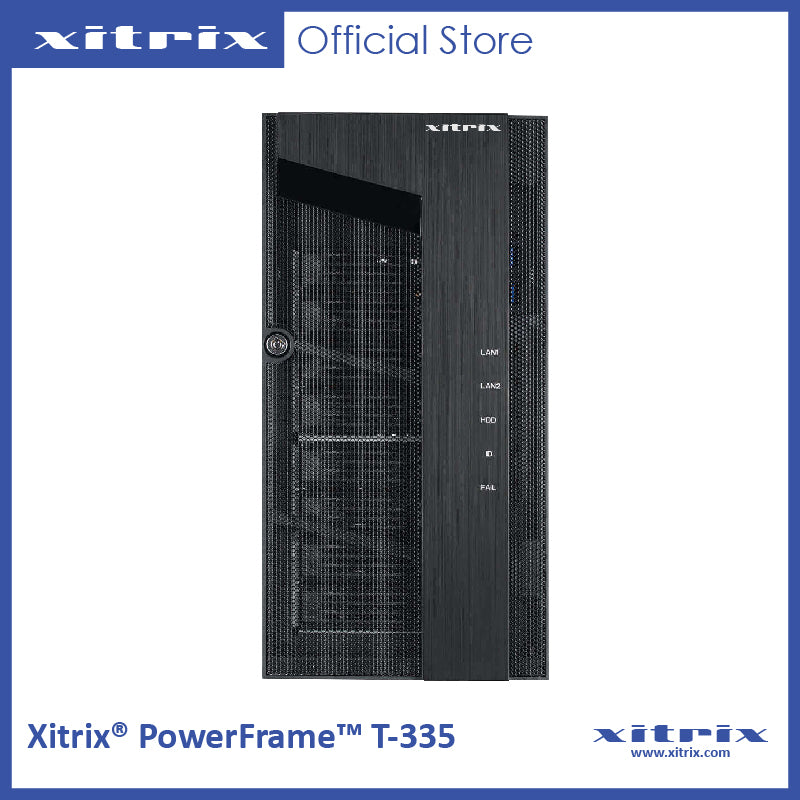

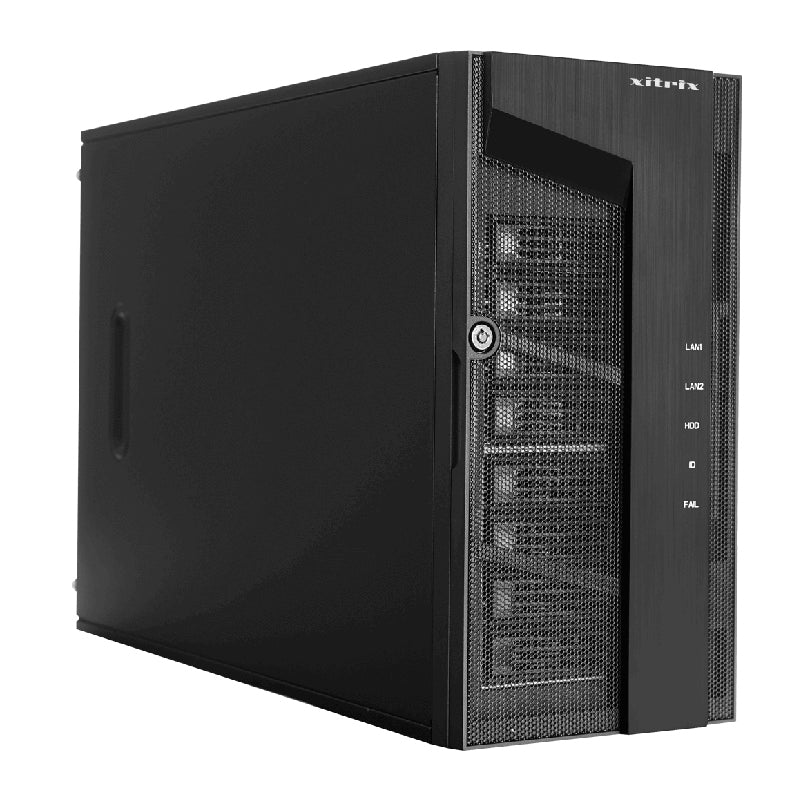

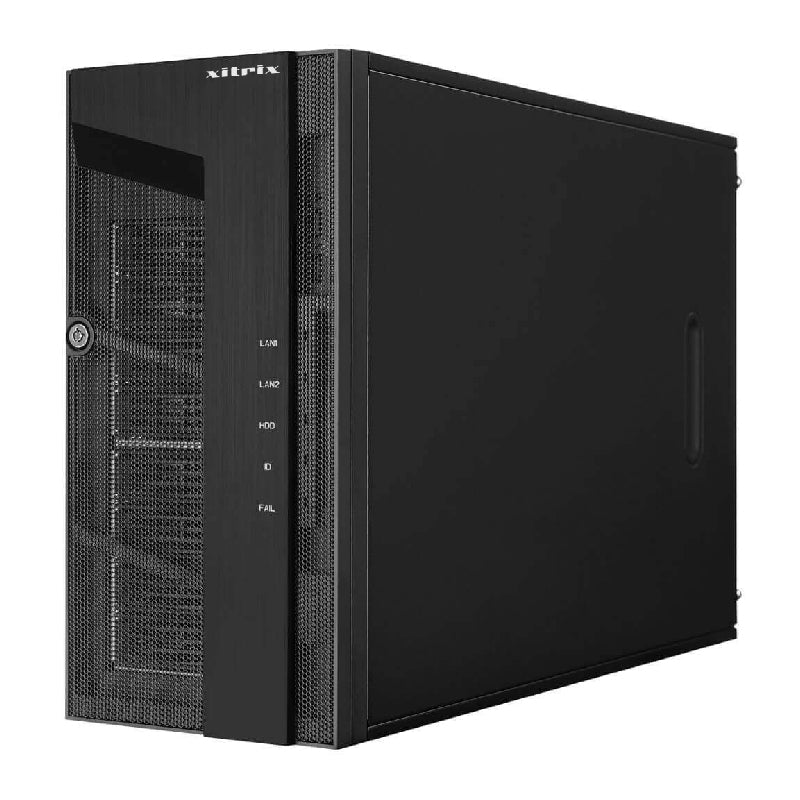

PowerFrame™ T335

• Support Latest Intel® Xeon™ E-2200 Series Processor
• Up to 64GB ECC DDR4 System Memory
• Up to 128TB Hot Swappable Storage and Dual Solid State Drive
• Dual Server Gigabit LAN and Dedicated 1GB Management Port with IPMI 2.0

Processors

The PowerFrame™ S-335 is equipped with a Single Socket Multi-Core Intel® Xeon® E2200 series Processors with Up to Eight Cores and Sixteen Threads

Core Chipset

Intel® C242 Server Chipset

System Memory

4 DIMMs sockets supporting up to 128GB of Unbuffered ECC DDR4 memory
Supported memory type: Two Channel Native 2133MHz/2444MHz/2666MHz

Operating System

Microsoft® Windows® Server 2016 (64 bit)
- RedHat Enterprise Linux Server 6.9 (64 bit) / 7.4 (64 bit);
- SUSE Enterprise Linux Server 11 SP4 (64 bit) / 12 SP3 (64 bit);
- Ubuntu 15.10 (64 bit) / 16.04 (64 bit)
*Please refer to our website for the latest OS support list.

Hard Drive Controller

Intel® C242: 6x SATA3 6Gb/s (SATA0-5, SATA0 supports SATA DOM, and is shared with M.2(PCIE3.0(x2))/ SATA3)

Hard Drives

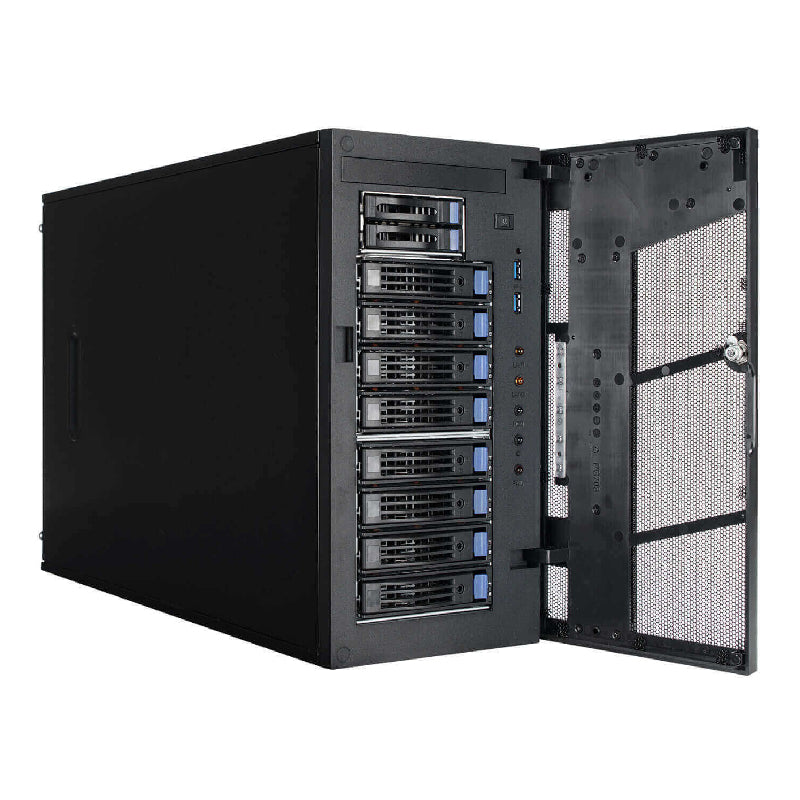

Eight Hot Swappable 3.5inch / 2.5inch SATA or SAS Drives
Option Two Hot Swappable 2.5inch SATA / SAS Drives

RAID Features

Integrated SATA SW RAID levels 0/1/10; SW RAID Options Intel® RSTe SATA RAID 0/1/10/5
Optional LSI MegaRAID® SAS 9341-8i 12Gb/s SAS and SATA RAID controller card

Optical Drive

Optional 8x DVD±R ± RW Drive w/dbl layer write capability

Network Controller

Embedded Dual Intel® i210 Dual Gigabit Controller and Dedicated 1 GbE management port with - Watch Dog and NMI
Supports Dual LAN with Teaming function; Supports PXE; LAN1 supports NCSI

Slots

PCIe 3.0 x 16, PCIe 3.0 x 8, PCIe 3.0 x 4

Graphics

Integrated Graphics Video Memory

Input / Output

Six USB 3.0 Ports ( 2 Front and 4 Rear)
2 LAN Ports and 1 Dedicated Gigabit Port for Management; 1 VGA Port, 1 Com Port

Chassis

PowerFrame High Availability Mini Server Chassis
Chassis Dimensions (D x W x H)w/o Front Panel:  480.3 x 169.95 x 339.95

Power Supply

Standard 500watts High Efficiency Power Supply

System Cooling

Middle Fan: 80 x 25mm PWM fans x 2, 4500RPM ; Rear Fan : 80 x 25mm PWM fans x 2, 3800RPM

Management

Hardware

Integrated IPMI 2.0 with KVM and Dedicated LAN

Standard Warranty

and Service

Offerings

Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy;
1-Year Next Business Day On-site Service
Optional 3 Years Next Business Day on-site

• Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy;
• 1-Year Next Business Day On-site Service
• Optional 3 Years Next Business Day on-site
