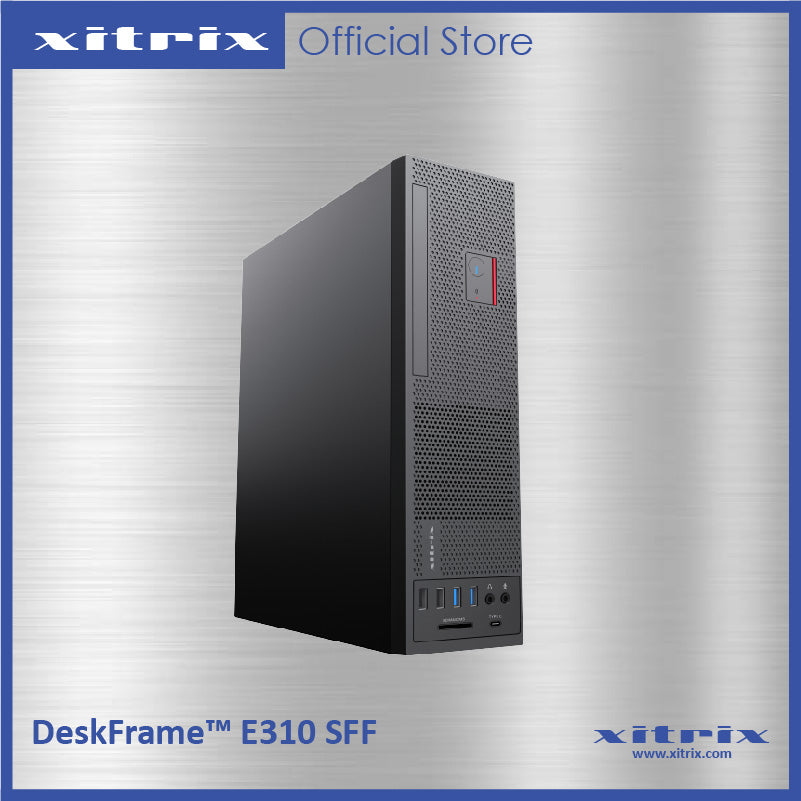

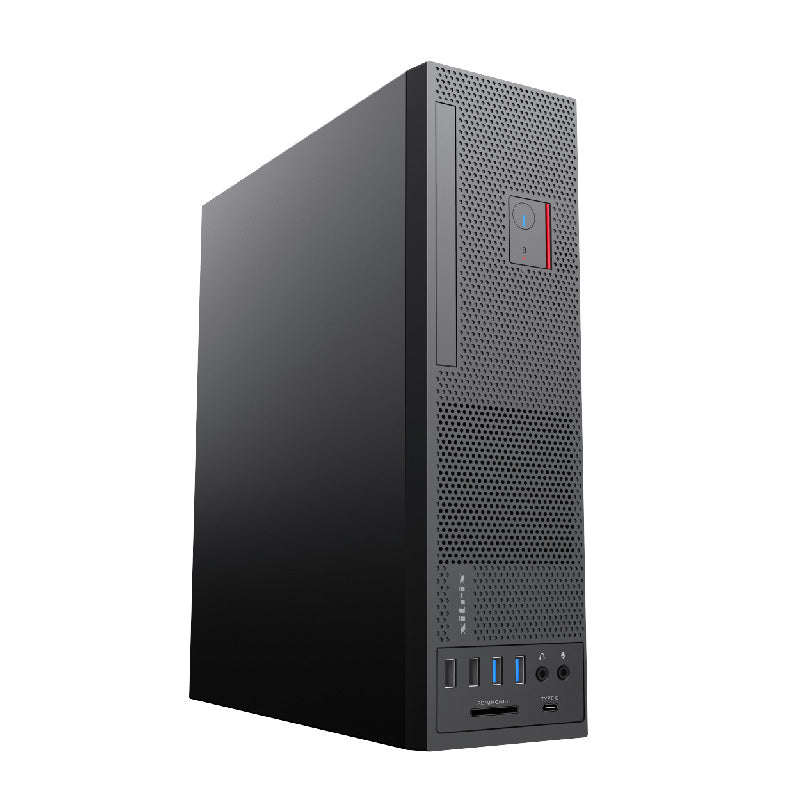

DeskFrame™ E310 SFF (DDR5)

• Support 13th Gen Intel® Core™ Series Processor
• Up to 64GB DDR5 System Memory
• Supports Dual Drive configuration
• Small Form Factor Chassis
• Wireless AC, with Bluetooth Module, Gigabit LAN
• Energy Star Certified

Processors

Support for 13th Gen Intel® Core™ i3, i5 and i7 processor series Support for 12th Gen Intel® Core™ i3, i5 and i7 processor series Supports Intel® Celeron™ Processor and Intel® Pentium™ Processor

Core Chipset

Intel® B760 Express Chipset

Operating System

Supports Microsoft Windows 11 Home and Professional 64 bit

System Memory

Two DDR5 SDRAM Dual Inline Memory Module (DIMM) sockets; Supports up to 96 GB Memory Supports Dual Channel DDR5 4800/ 5200(OC)/ 5400(OC)/ 5600(OC)/ 6000+(OC)

Graphics

Integrated Intel® HD graphics engine

Optional 2GB nVidia GeForce GT710 / 4GB GT730 Discrete Graphic Card

Hard Drive

Up to 14TB Serial ATA 6Gb/s Hard Drive

Up to 4TB M.2 NVME SSD

Up to 4TB SATA 6Gb/s SSD Solid State Drive Supports Dual Drive ( 3.5inch and 2.5inch)

Media Storage

Optional 8x DVD Writer Drive; Built in Media Card Reader

Audio

Intel® High Definition Audio (Intel® HD Audio)

Peripheral Interfaces

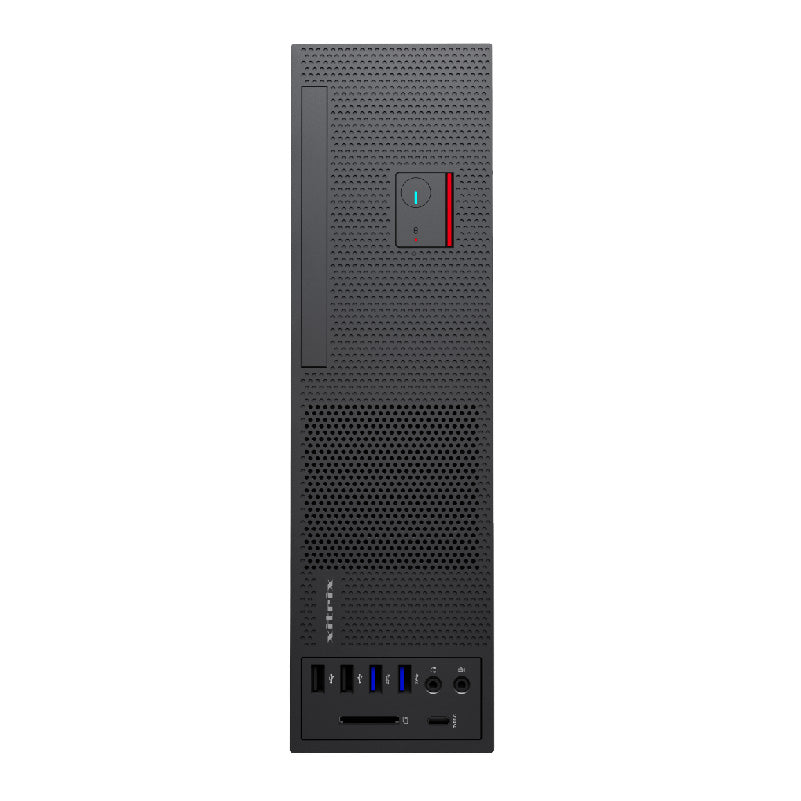

Front Ports: Two Super Speed USB 3.0 and Two USB 2.0 ports, 2x Audio Jack Ports, 1x Type C Port, Card Reader  Rear Ports: 2 X USB 3.2 Type A port(s), 4 X USB2.0 port(s), 1x PS2 Port, 3 Audio Jack Ports (Line Out/Line In/Mic In), 1 x HDMI 2.0 Port, 1 x VGA Port, 1 x DVI Port, 1 x RJ45 Port, 1 x WIFI Antenna Port

Monitors

Choice of Xitrix® Branded Flat Panel LED Display

Slots

1 X PCI Express X16 Gen 4.0 slot(s); 1 X PCI Express X 1 Gen 3.0 slot(s); 1 X M.2 2242/2280 Storage Slot, 1 x M.2 2230 Slot for Wifi

LAN Support

2.5GB LAN subsystem Gigabit Ethernet Controller 10/ 100/ 1000/ 2500 Mb/s Optional Intel® Dual Band Wi-Fi 6 AX201 2x2 AX + Bluetooth 5.2

Chassis Type Dimension Power Supply

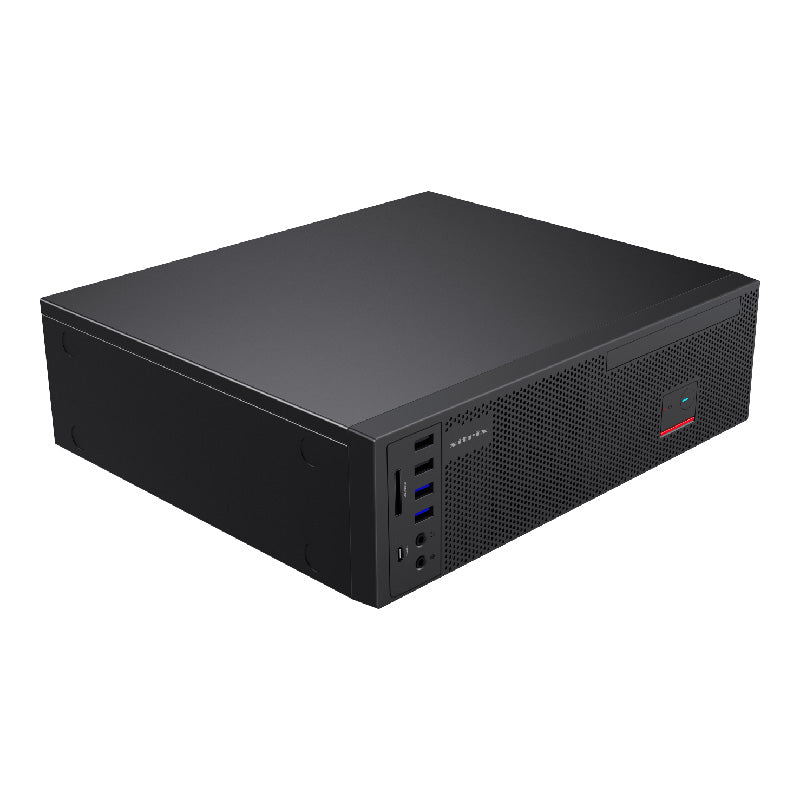

Xitrix DeskFrame Small Form Factor 8.5L Tool Free Chassis; Optional Internal Chassis Audio Speaker 327x 95x 283mm（8.8L）With Front Panel

250Watts High Efficiency 80Plus Power Supply; Optional 350Watts High Efficiency 80Plus Power Supply

Accessories

Xitrix Ergonomic Design USB Business Keyboard and Mouse with Mouse Pad

Standard Warranty and Service Offerings

Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service

Optional 3 Years Next Business Day on-site

• Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service
  Optional 3 Years Next Business Day on-site
