OptoFrame™ W530

Write a review
  • Sale
  • Regular price Currently Not Available
  • Will be in stock after
Tax included.





Features

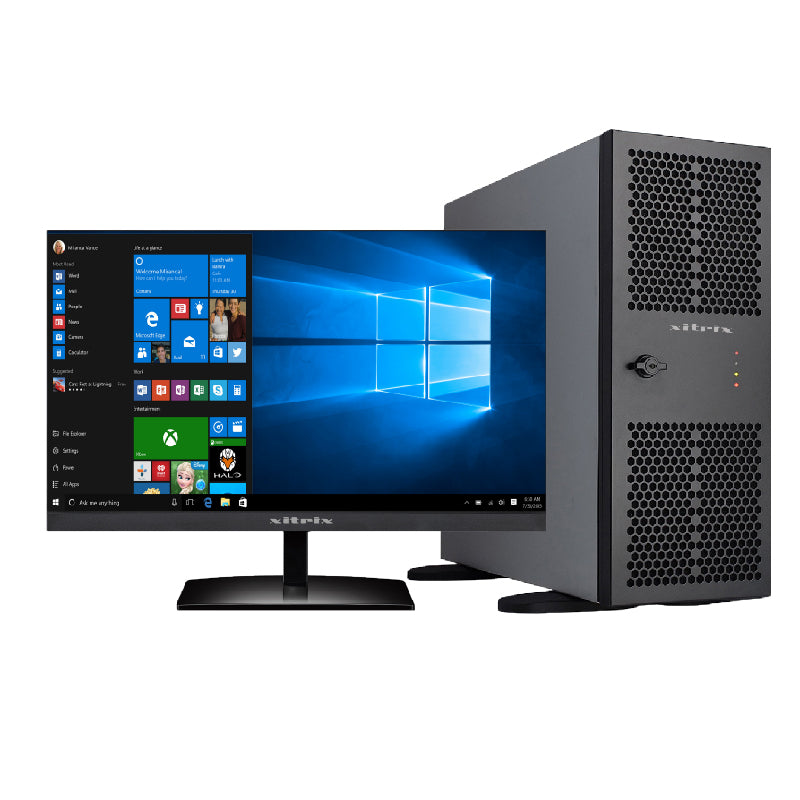

Xitrix® OptoFrame™ W-530
Expert workstation system providing maximum performance and high-end I/O capacity for the most demanding design and analytic applications
Xitrix® OptoFrame™ W-530 Graphics Workstation delivers outstanding performance to graphics intensive applications with NVIDIA® Quadro or ATI® graphics cards. Based on Intel® C621 chipset the system can operate up to a total of 56 processing cores with the new Intel® Xeon® Scalable Series processors, the system can support up to 2TB of DDR4 System memory and Up to 4 PCIe* Gen3 x16 Graphics slots adapters for enhanced graphics capacity/flexibility


 New Intel® Xeon® Scalable Processors Deliver World Class Performance for Expert Workstation Professionals

  • Delivering breakthrough performance for real-time design, modeling, content creation, and data insights. These advanced workstation processors accelerate the widest range of workstation software applications, enable stunning professional quality VR experiences, and power AI workloads.

 NVIDIA Quadro RTX 8000. The World’s Most Powerful Ray Tracing GPU

  •  NVIDIA® Quadro RTX™ 8000, powered by the NVIDIA Turing™ architecture and the NVIDIA RTX™ platform, combines unparalleled performance and memory capacity to deliver the world’s most powerful graphics card solution for professional workflows. Designers and artists can now wield the power of hardware-accelerated ray tracing, deep learning, and advanced shading to dramatically boost productivity and create amazing content faster than ever before.

Equipped to Detect and Repair. ECC Memory

  • Error correcting code (ECC): Error correcting code, or ECC memory, automatically detects and repairs single-bit errors on-the-fly to keep workstation applications running reliably and free of data corruption; Up to 2TB System Memory

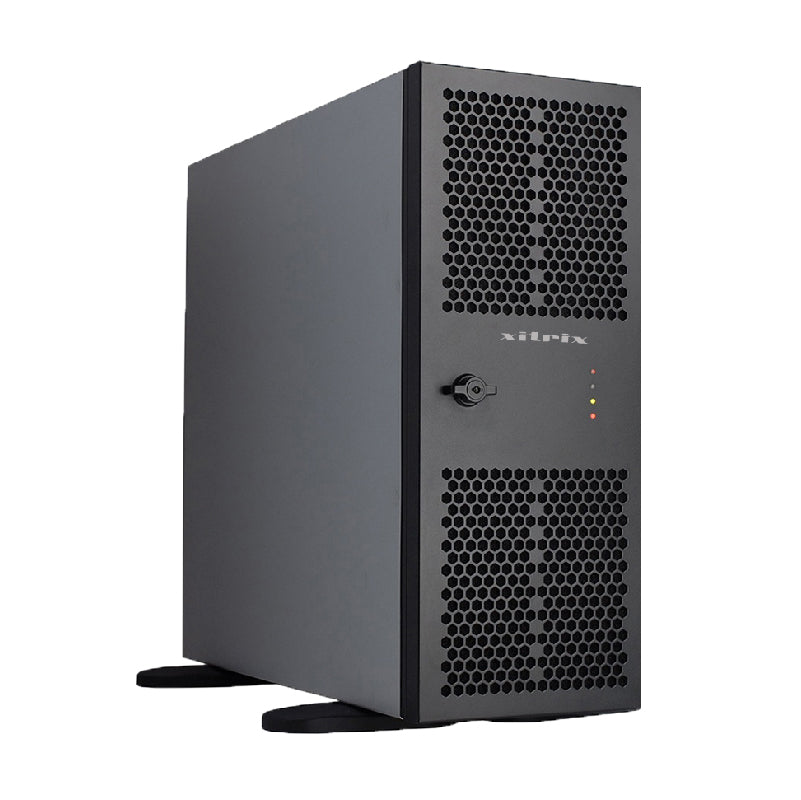

All new 4U Industrial Server Chassis 21.5” depth, ideal for space-sensitive industrial applications

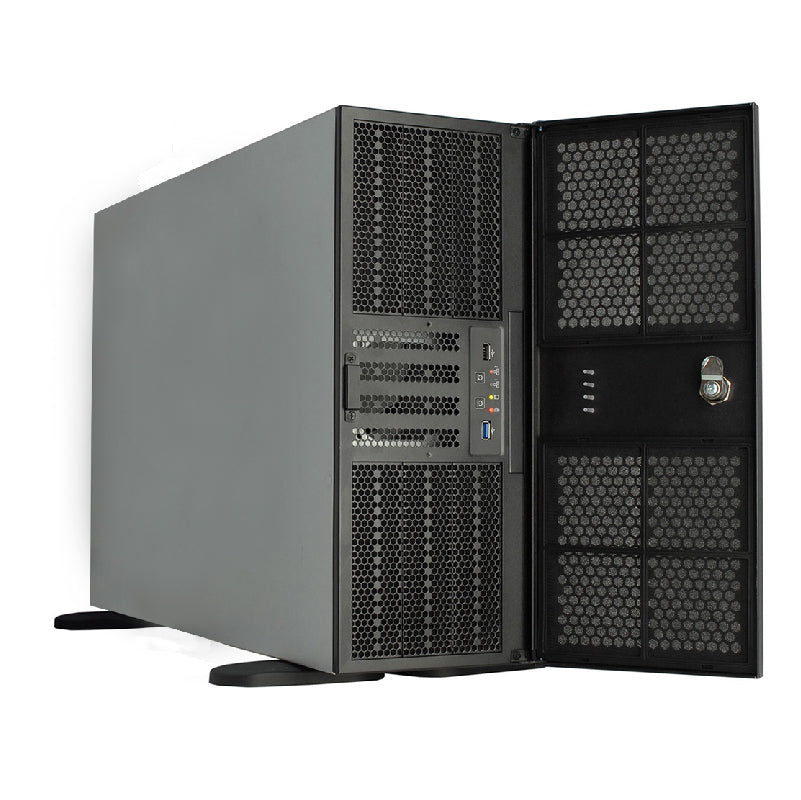

  • OptoFrame™ All new Industrial Workstation chassis supports up to 10 Hot Swappable 3.5inch Drives or 24 2.5inch Drives. The system also support fixed and Redundant Power Supply.

    Configuration

    Expert workstation system for the most demanding design and analytic applications

    • Support two Intel® Xeon® processor Scalable family
    • Up to 56Cores and 112 Threads per processor
    • Up to 2TB ECC DDR4 System Memory
    • Up to 5 Hot Swappable SATA / SAS Hard Drive
    • Supports RAID Configuration
    • Up to 48GB nVidia Quadro RTX Professional Graphic Card
    • Dual Intel® Server Gigabit LAN



    Specification

    Processors

    Support for one or two Intel® Xeon® processor Scalable family

    Up to 56Cores and 112 Threads per processor

    Core Chipset

    Intel® C621 chipset

    Operating System

    Genuine Microsoft® Windows® 10 Professional; 64bit versions

    System Memory

    16memory sockets; Capacity:  Support up to 512GB RDIMM/1,024GB LRDIMM/2,048GB LDRIMM

    Memory Type: Supports DDR4 2666/2400/2133 R DIMM/LR DIMM

    Memory Size: 32GB, 16GB, 8GB RDIMM/ 64GB, 32GB LRDIMM

    Optional Graphics

    Support for Four PCI Express® x16 Gen 2 or Gen 3 graphics cards

    ATI® Radeon™ Professional Graphic Cards or nVidia® Quadro™ Professional Graphic Cards

    Optical Drive

    24x DVD±R ± RW Drive or Blu-Ray Player

    Hard Drive

    SATA 6Gb/s connectors Support Raid 0, 1, 5, 10

    Optional 8 Port SATA / SAS 6Gb/s RAID Card W/ Support for ( RAID 0, 1, 5, 6,10, 50, JBOD)

    Standard Fixed Hard Drive Cage; Upgradeable to 4 or 8 Hotswappable 3.5inch Hard Drives or 2.5inch SSD Drives

    I/O Ports

    2 x LAN (RJ45) port(s);

    2 x SuperSpeed USB 3.0; 4 x USB 2.0 (2 Front and 2 Rear)

    3 x Back Audio Port

    IEEE-1394 Firewire Rear Port ( Optional); 2 Front SuperSpeed USB 3.0 Port ( Optional)

    Front Panel 5.25-inch All in Add on Kit ( 2x SuperSpeed USB 3.0 Ports, 1x USB 2.0 Port, 1x IEEE Firewire Port, E-SATA Port, Multi Card reader)

    Audio

    High Definition Audio Subsystem using Realtek ALC892-GR High Definition Audio

    Monitors

    Choice of Xitrix® Branded Flat Panel LCD and LED Display

    Expansion Capabilities

    Four PCI Express® x16 Gen Gen 3 graphics cards

    (3) PCI-E Gen3 x8 slots

    LAN Support

    Dual Intel® I350 Gigabit LAN Controller(s); Optional Intel® Server Gigabit Quad Port via Add on Card

    Chassis

    Industrial Grade Pedestal Server Chassis convertible to 4U Rack-Mount Server

    Supports Pedestal and 4U Rack Chassis

    146 x 42 x 180mm (Dimension WxHxD)

    Power Supply

    700watts High Efficiency 80Plus Power Supply Supports SLI & Crossfire Multi-GPU VGA card (Single CPU Configuration) or 900watts or 1,200w High Efficiency 80Plus Gold Rated Power Supply Supports SLI & Crossfire Multi-GPU VGA card (Multi CPU Configuration)

    Standard Warranty

    and Service

    Offerings

    Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service

    Optional 3 Years Next Business Day on-site




    Services
     Standard Warranty and Service Offerings
    • Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy;
    • 1-Year Next Business Day On-site Service
    • Optional 3 Years Next Business Day on-site



    Downloads
    Title Date Filename
    W530 Product Brochure Data Sheet OS: Adobe Acrobat Reader Sept 2020 OptoFrameW530.pdf Download
