DeskFrame™ E305R Mid Tower AMD Desktop

• Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
• Up to 64GB DDR4 System Memory
• Supports Dual Drive configuration
• Small Form Factor Chassis / Compact Tool Free Chassis

Processors

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors

Core Chipset

AMD A520 Chipset

Operating System

Microsoft Windows 11 Professional; 64 bit

System Memory

8GB DDR4 3200MHz System Memory

Two DDR4 SDRAM Dual Inline Memory Module (DIMM) sockets

Support for up to DDR4 2666/2933/3200 MHz  ; Support for up to 64 GB of system memory

Graphics

Integrated on Processor AMD Radeon™ Graphics

Optional 2GB nVidia GeForce GT710 / GT730 GT1030 Discrete Graphic Card

Hard Drive

256GB M.2 NVME SSD Drive and 1TB 7200RPM SATA Hard Disk Drive

Up to 14TB Serial ATA 6Gb/s Hard Drive

Up to 4TB M.2 NVME SSD

Supports Dual Drive ( 3.5inch and 2.5inch)

Media Storage

Optional 8x DVD Writer Drive; Built in Media Card Reader

Audio

Intel® High Definition Audio (Intel® HD Audio)

Peripheral Interfaces

Front Ports: Two Super Speed USB 3.0 front and Two USB 2.0 ports, 2x Audio Jack Ports, 1x Type C Port

Rear Ports: 4 X USB 3.2 Gen 2x1 Type A port(s), 2 X USB2.0 port(s), 2x PS2 Ports, 3 Audio Jack Ports (Line Out/Line In/Mic In), 1 x HDMI 2.0 Port, 1 x VGA Port, 1 x Display Port, 1 x RJ45 Port

Monitors

Choice of Xitrix® Branded Flat Panel LED Display

Slots

1 X PCI Express X16 Gen 4.0 slot(s); 1 X PCI Express X 1 Gen 3.0 slot(s); 1 X M.2 2242/2280 Storage Slot

LAN Support

(10/100/1000 Mb/s) LAN subsystem Gigabit Ethernet Controller

Intel® Dual Band Wi-Fi 6 AX201 2x2 AX + Bluetooth 5.2

Chassis Type

Dimension

Power Supply

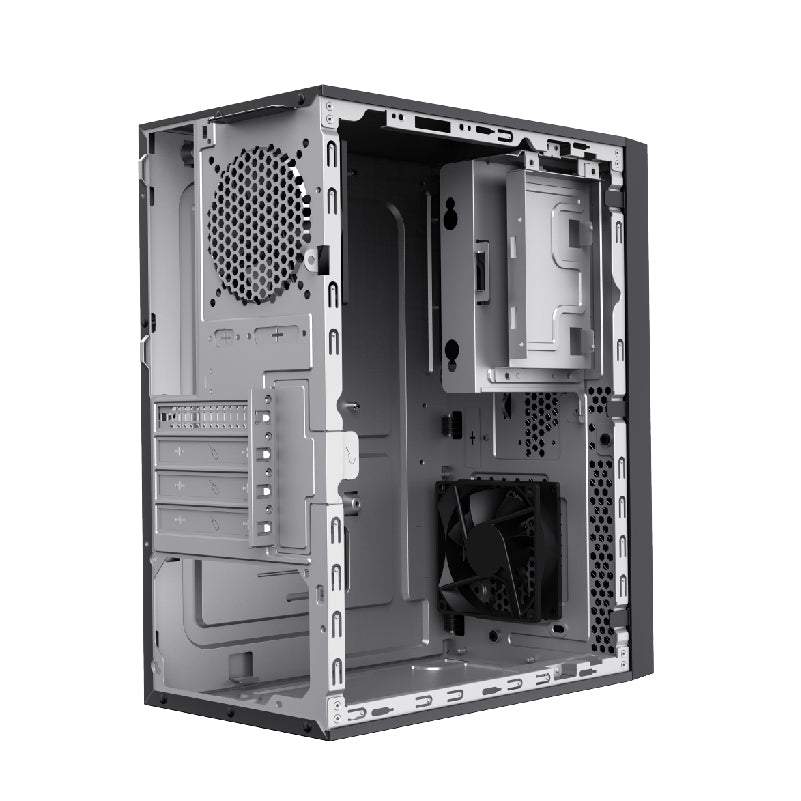

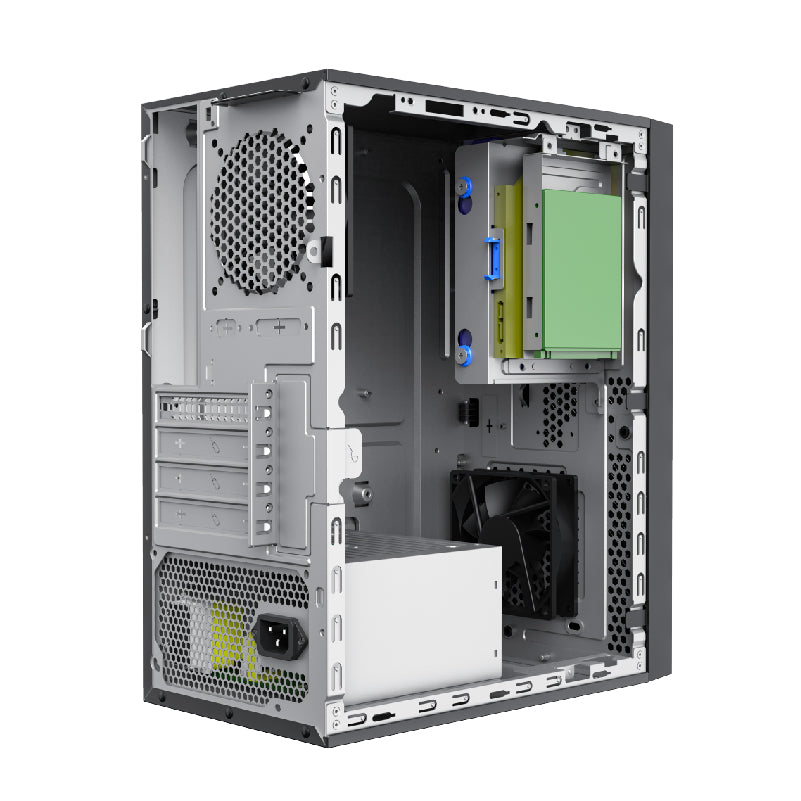

Xitrix DeskFrame Mid Tower Tool Free All Metal Chassis; Optional Internal Chassis Audio Speaker (L)343*(W)173*(H)353mm

250Watts High Efficiency 80Plus Power Supply

Accessories

Xitrix Ergonomic Design USB Business Keyboard and Mouse (KM120) with Mouse Pad

Standard Warranty and Service Offerings

Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service

Optional 3 Years Next Business Day on-site

• Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service
  Optional 3 Years Next Business Day on-site
