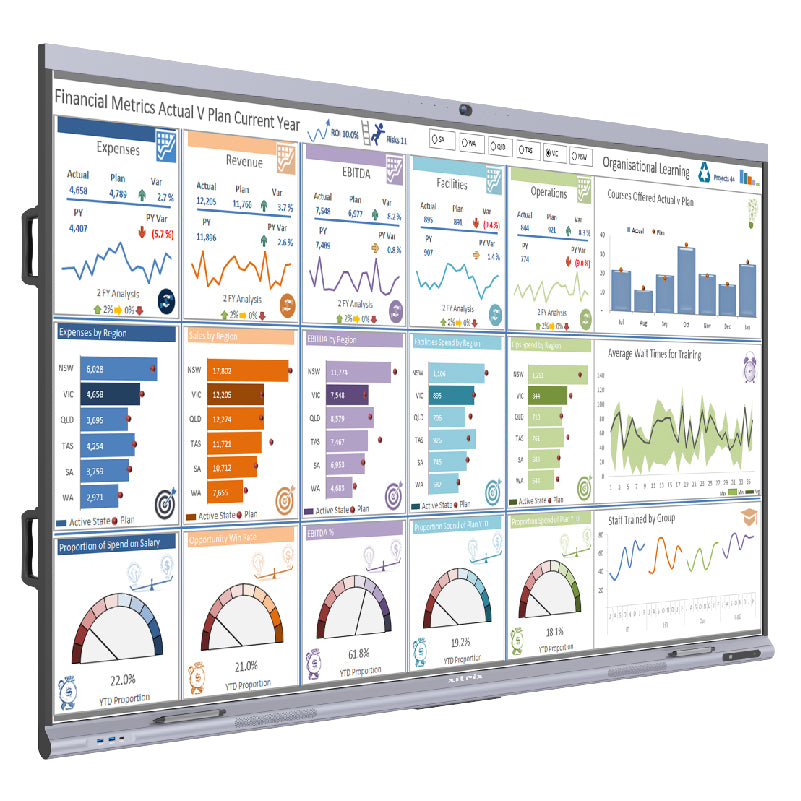

Xitrix® 75" Ultra HD Interactive Display

Model Name

XPN-IDB7522

Active Screen Size ("inch)

75"

Display Backlight

new OD28-DLED

Display Area
(Horizontal * Vertical)

1650.24*928.26 mm

Display Ratio

16:9

Resolution

3840*2160 Pixel (4K)

Display Colors

8bit+FRC (1.07 billion color)

LCD Brightness (Typical ,after cover class)

min:400 cd/m²,Type:450cd/m²

Contrast Ratio (Typical)

4000:1

Response Time (Typical ,G to G)

Type:8.5 ms  Max：12 ms

Viewing Angle

178∘

Life time (working hours/day)

minimum 30,000 hours

Power Consumption

Power Rating  ≤400W
Standby Mode <0.5W

Working Voltage

AC 100-240V, 50/60Hz

Display Orientation

Landscape

Touch Surface Material

Tempered glass

Cover Glass Bonding

Air Bonding / Zero Bonding

Cover Glass Thickness

3.0±0.2mm

Transparency

>88%

Haze

2%~5%

Touch Surface Hardness

8H

Touch Sensor

Infrared Touch

Touch Resolution

32767*32767

Touch Points

android 20 Points，windows 40 points

Touch Screen Writing Tools

3mm Pen tip as windows digitizer;   8mm pen or finger as windows touch

Touch height

<3mm

TOUCH Response time (Single point)

≤10ms

Cursor Speed

100Point/s

Positioning Accuracy

±1mm within 90% working area

Communication Interface

Dual USB

Speaker Position

bottom front

Speaker Rated Impedance

6Ω

Speaker Freq.Response

250Hz-20KHz  SPL -10dB

Speaker Max.Power Output

20W*2

Transmission Range

5M

Storage Temperature/Humidity

-20℃~60℃/20%～90%

Working Temperature/Humidity

0℃-40℃/20%～80%

Installation Method (optional)

Wall-mounted / Floor Stand

Outline Dimension
(without wall mount bracket thickness)

1735*1047*102mm

Packing Dimension

1859 x 227 x 1160 mm

Net Weight

TBD

Gross Weight

TBD

VESA Mount installation position

800 x 400mm

Chipset

MTK9666

CPU

M9666-A55*4

GPU

Mali G52MP2

RAM

4GB

ROM

32GB

Android Version

Android 11

OPS PC

Available, 80pin, 4K@60Hz/30Hz

Wireless casting

Available

Wireless Module

Wi-Fi6 + BT5.2,
Adpter with slider module

Ethernet

10M/100M/1000M

Camera

Optional, CMOS Sensor, 1/2.8, 4K@30fps, D-FOV:116±3° H-FOV:106±3° V-FOV:70±3°

Ports

Front Interface Inputs

HDMI IN(2.0)*1,
Touch(USB2.0 Type-B)*1,
USB3.0(Public Type-A)*2,
Type C(65W+4K60+USB2.0) *1,
Mic in(Aux3.5)*1

AV Inputs

HDMI IN(2.0)*1,
DP IN(1.2)  *1,
VGA*1,
VGA AUDIO IN(Aux3.5)*1

AV Outputs

Earphone *1 Aux3.5,
HDMI OUT（2.0） *1,
SPDIF Out*1

Other

USB 2.0(android)*1,
USB 2.0(public)*2,
Touch USB(2.0 Type-B)*1 ,
RS232*1,
OPS Slots*1
Type-C(For camera，USB 2.0)
RJ45*2 (on Wi-Fi module)
