Features
Configuration

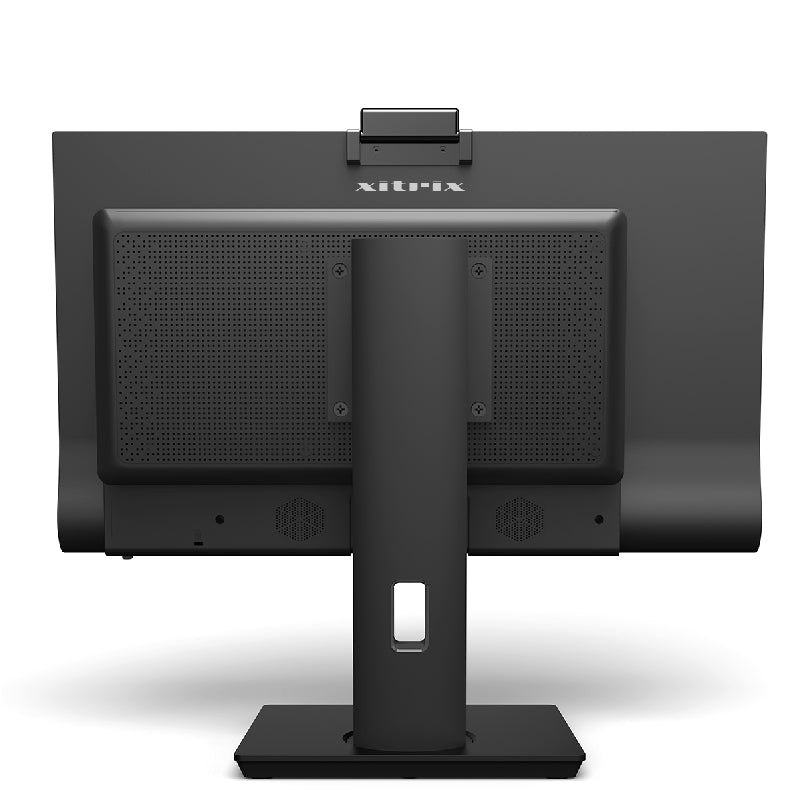

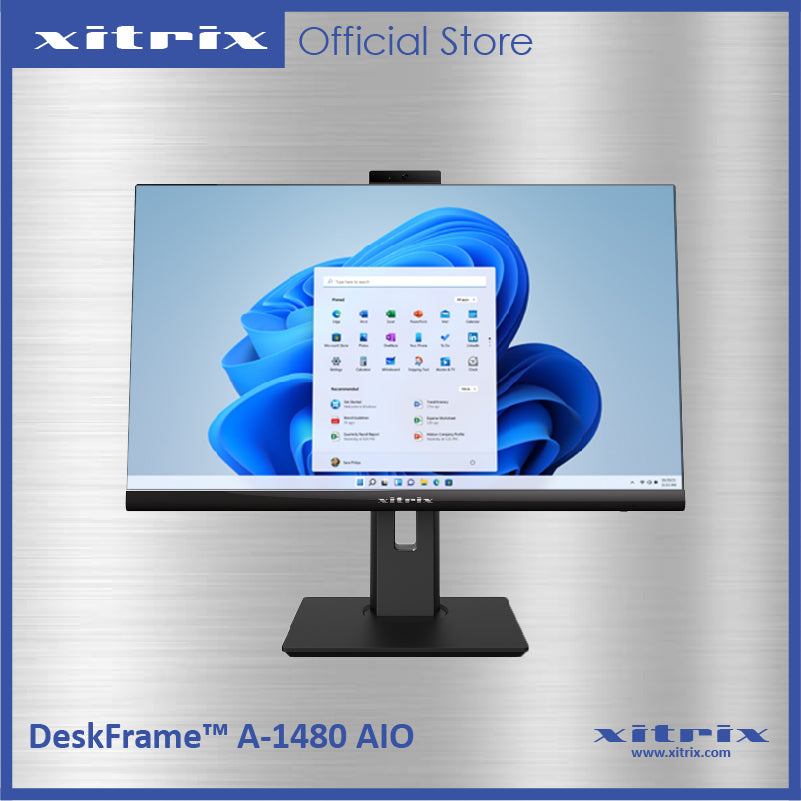

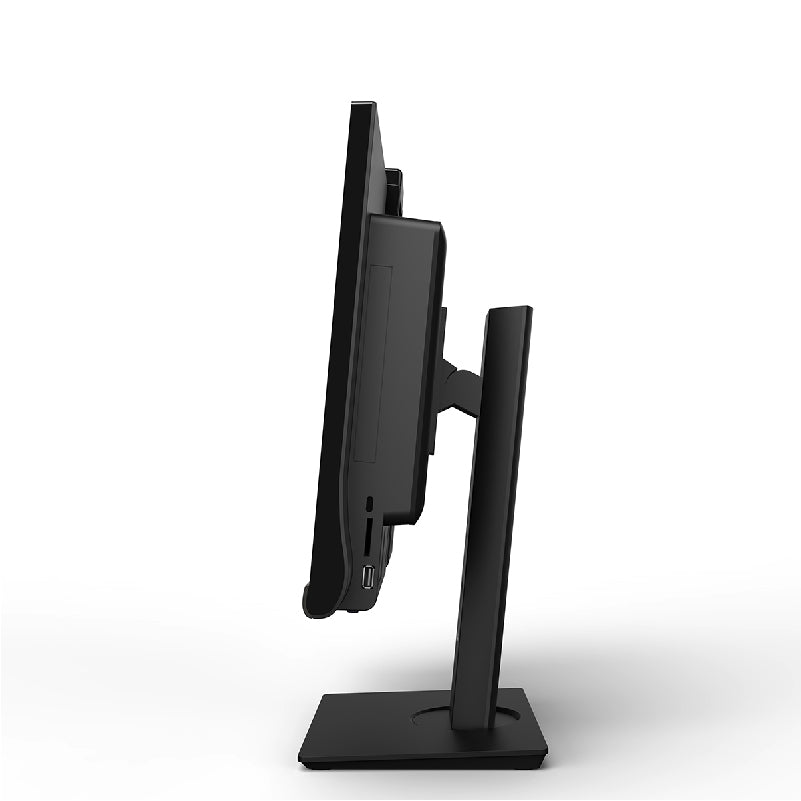

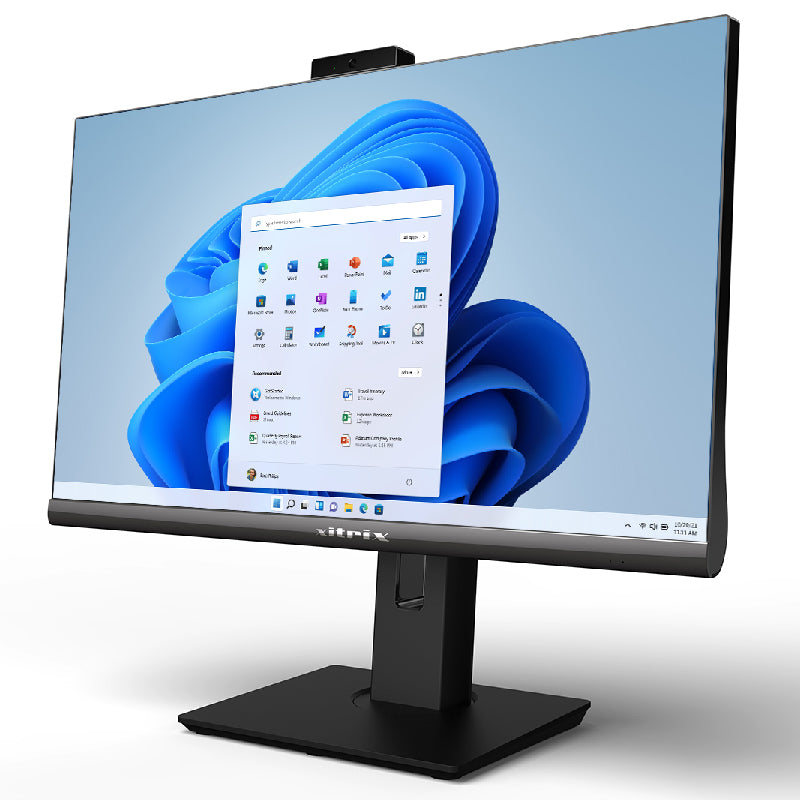

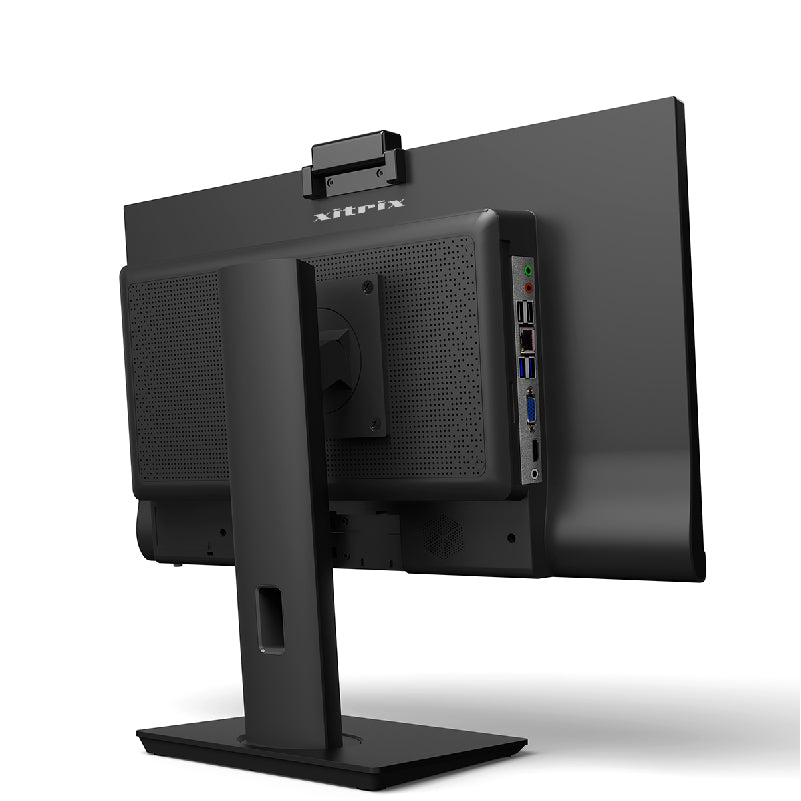

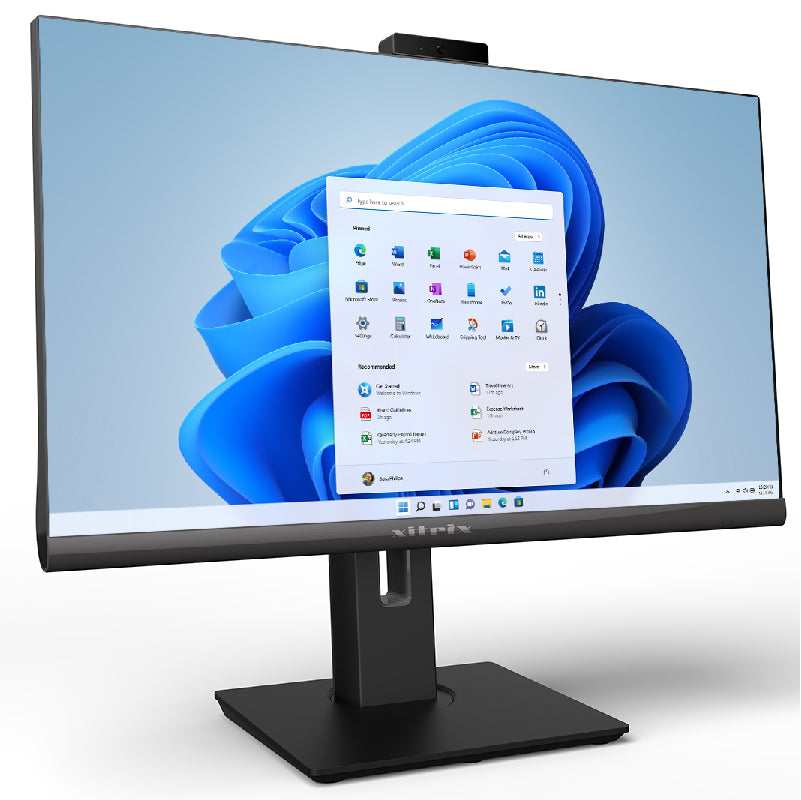

DeskFrame A1480 All in One
|
Specification
Supported Processors | Supports Latest 9th Generation Intel® Core™ i3, i5 and i7 Processors
Supports Latest Intel® Celeron™ and Pentium™ Processors |
Core Chipset | Intel® H310 Express Chipset |
Display Size | 23.8inch Full HD 1920 x 1080 screen Resolution |
Operating System | Genuine Microsoft® Windows® 10 SL; Microsoft® Windows™ 10 Professional 32BIT AND 64BIT OPTIONS |
System Memory | Dual Channel DDR4 Memory Technology
Support for up to DDR4 2666 MHz ; Support for up to 32 GB of system memory |
Graphics | Integrated Intel® GMA HD graphics engine
DVI and VGA connector for processors with Intel® HD Graphics |
Optical Drive | 8x SATA DVD±R ± RW Drive w/dbl layer write capability;
Built in Multi in one Card Reader |
Hard Drive | Up to 2TB Serial ATA 6Gb/s Hard Drive; Up to 2TB SATA 6Gb/s SSD Solid State Drive
Up to 1TB M.2 SSD |
Audio | Intel® High Definition Audio; with 2x 3watt speaker |
Peripheral Interfaces | Two Super Speed USB 3.0 port
Four USB 2.0 Port Multi in One Card Reader; HDMI In and HDMI Out Port Audio Ports, Gigabit Network Port; |
Communication | (10/100/1000 Mb/s) LAN subsystem Gigabit Ethernet Controller
Wireless AC + Bluetooth v4.0+LE Combo 2M Integrated Camera w/ Dual High sensitive & Voice Clear Mic |
Dimension | 538 x 418 x 71mm (including base)
100-240V ac 50-60Hz Output ; DC 19v – 6.3A |
Pre-installed Softwares | Microsoft Office 2016 60 Days Trial , Free Factory Installed Microsoft Security Essentials , Adobe Acrobat Reader |
Standard Warranty and Service Offerings | Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service
Optional 3 Years Next Business Day on-site |
Services
Standard Warranty and Service Offerings
|
Downloads
Title | Date | Filename | |
Product Brochure Data Sheet OS: Adobe Acrobat Reader | August 2020 | DESKFRAME-A-1480_AIO.pdf | Download |
