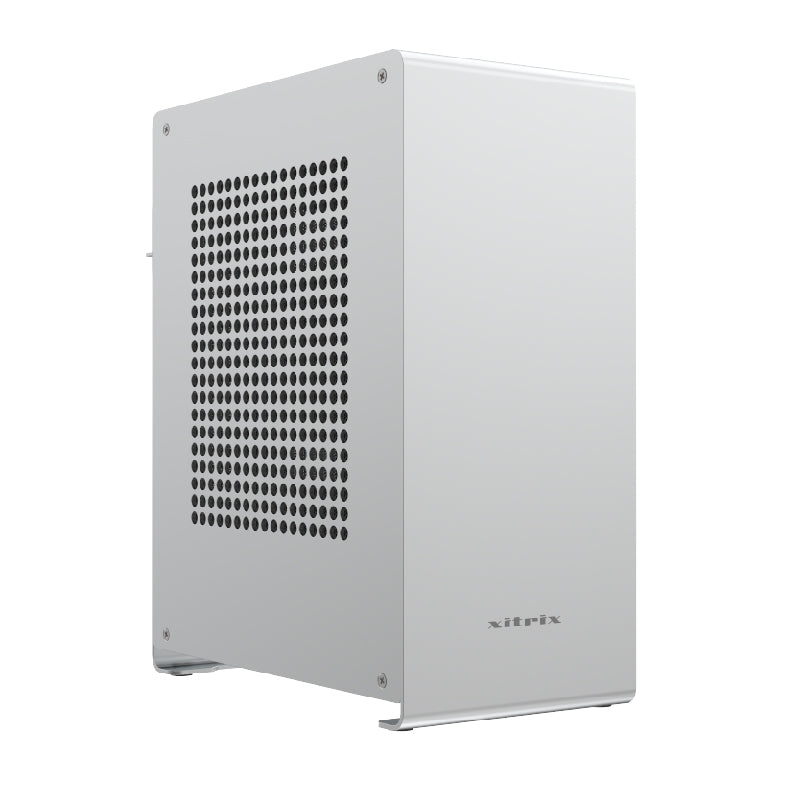

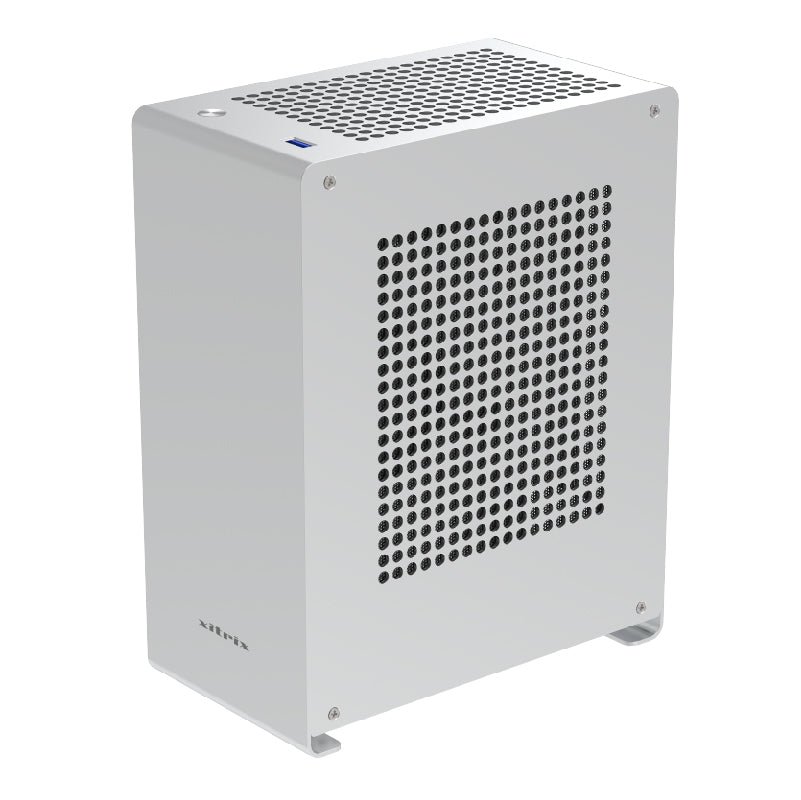

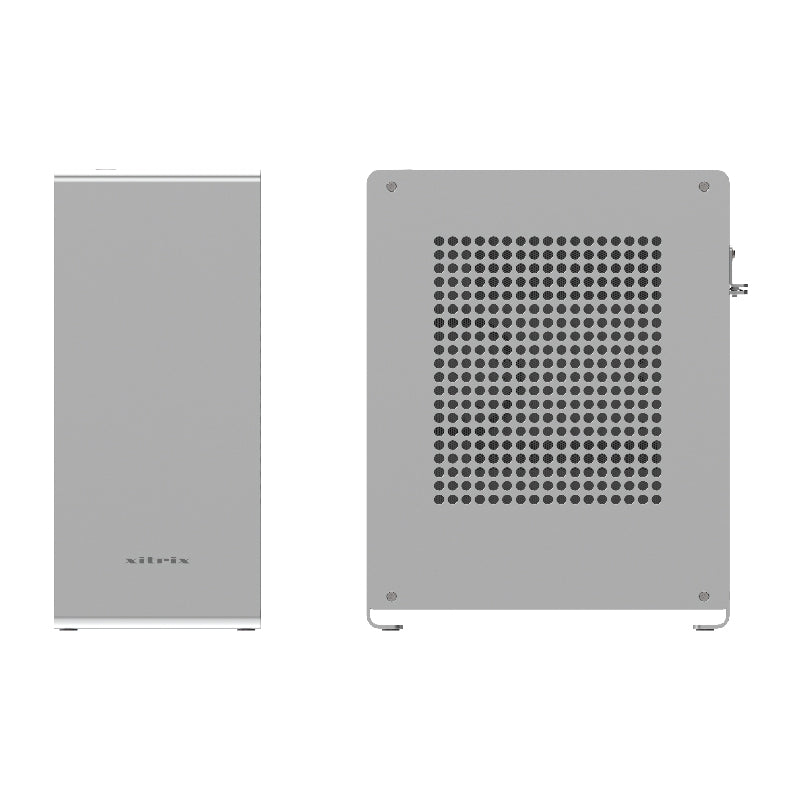

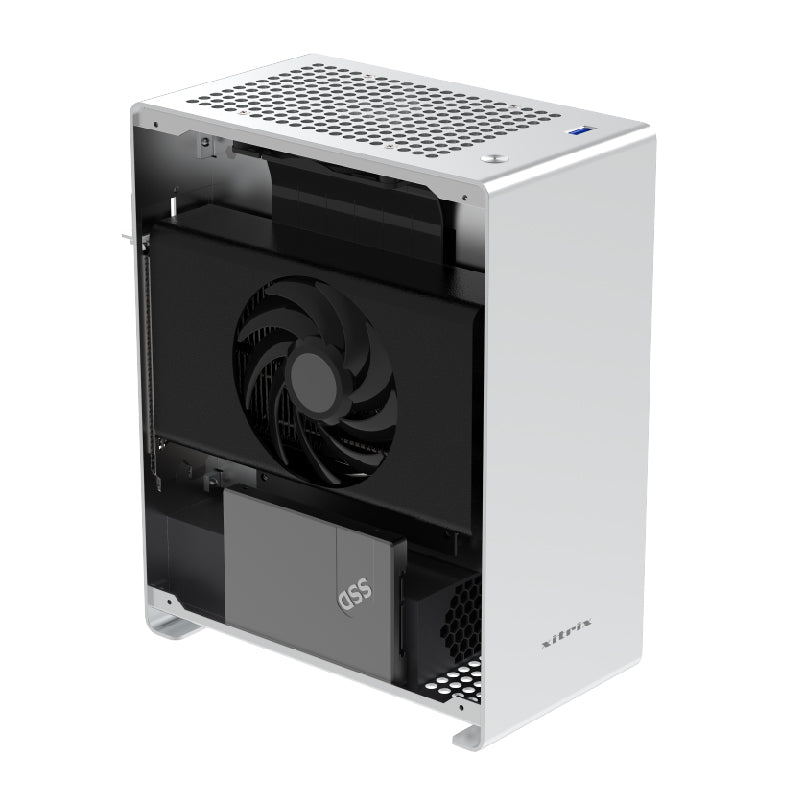

Xitrix® GX1R NANO AMD Gaming PC

Xitrix® GX1R NANO AMD Gaming PC

• Support AMD Ryzen 5000 Series Processor
• AL-MG Magnesium Aluminum Alloy ITX Chassis
• Up to 64GB Memory; M.2 PCIe 4.0 SSD and 2.5” HDD
• Supports Up to GTX and RTX-30 Series Graphic Cards
• Gigabit LAN and 802.11ac WiFi Module

Supported Processors

Supports AMD Ryzen™ 5000 Series Processors

Core Chipset

AMD® B550 Express Chipset

Operating System

Support Microsoft® Windows® 10 and Windows™ 11

System Memory

Two DDR4 DIMM Slots; Dual Channel DDR4 Memory Technology

Support for up to 64GB of system memory; 3600MHz

Supported Graphics

nVidia GeForce RTX-3060 (12GB GDDR6 / 15 Gbps / 192-bit)

nVidia GeForce RTX-3050 (8GB GDDR6 / 14 Gbps / 128-bit)

nVidia GeForce GTX-1650 (4GB GDDR6 / 12 Gbps / 128-bit)

nVidia GeForce GTX-1050Ti (4GB GDDR5 / 7 GHz / 128-bit)

Slots

1 x PCI Express x16 Gen 4 Graphic Slot

1 x M.2 Socket, supports type 2280 SATA3 6.0 Gb/s PCIe Gen4x4 (64 Gb/s) modes

1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)

Hard Drive

Up to 1 x 2.5inch SATA Solid State Drive

Up to 1 x M.2 Socket SSD Solid State Drive

Audio

7.1 CH HD Audio (Realtek ALC887 Audio Codec)

Peripheral Interfaces

- 2 x Antenna Ports

- 1 x PS/2 Mouse/Keyboard Port

- 1 x HDMI Port

- 1 x DisplayPort 1.4

- 2 x USB 2.0 Ports (Supports ESD Protection)

- 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)

- 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jacks: Line in / Front Speaker / Microphone

LAN Support

Gigabit LAN 10/100/1000 Mb/s

Intel® 802.11ac WiFi + BT 4.2

Chassis Type

Dimension

Power Supply

AL-MG Magnesium Aluminum Alloy ITX Chassis; Anodized silver; Low Noise 90mm Low Profile PWM Fan

200*114*253mm

Standard: 300 WATTS High Efficiency 80Plus Gold Power Supply

Optional: 500 WATTS High Efficiency 80Plus Gold Power Supply

Standard Warranty and Service Offerings

Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service

Optional 3 Years Next Business Day on-site

• Service Offerings 3-Year Limited Parts Warranty Technical Support Policy; 1-Year Next Business Day On-site Service Optional 3 Years Next Business Day on-site
