Features
Configuration
|
•Support Intel® Core™ Ultra 5,7 and 9 Processor
•Up to 96GB DDR5 System Memory
•Supports Dual Drive configuration

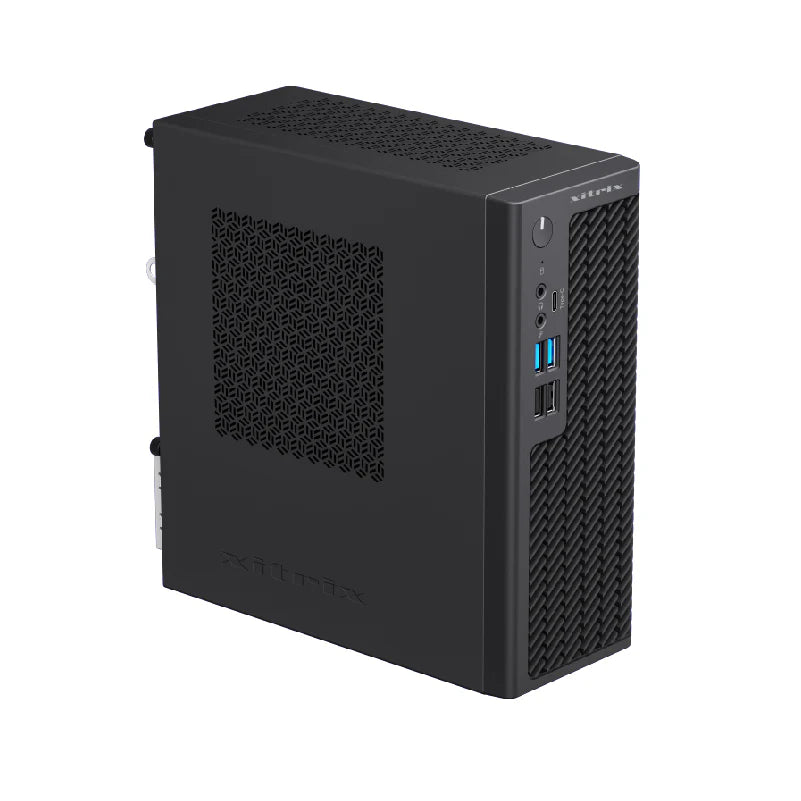

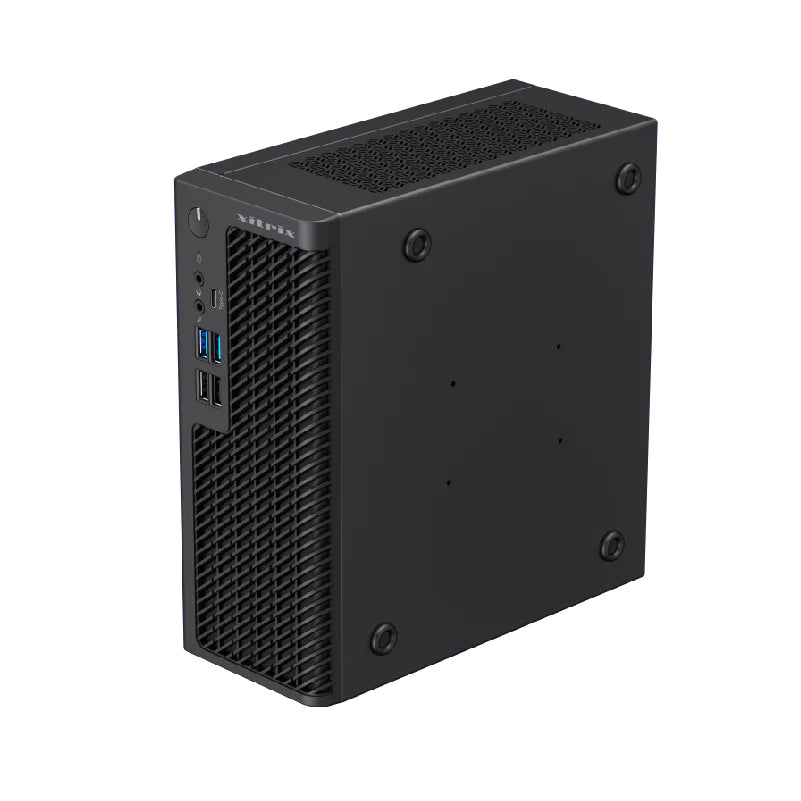

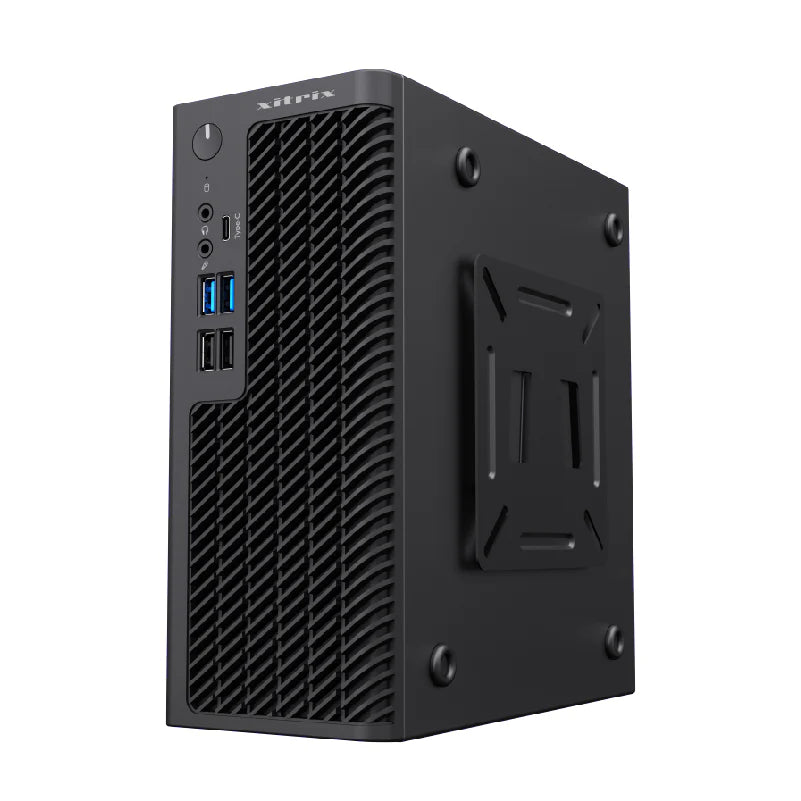

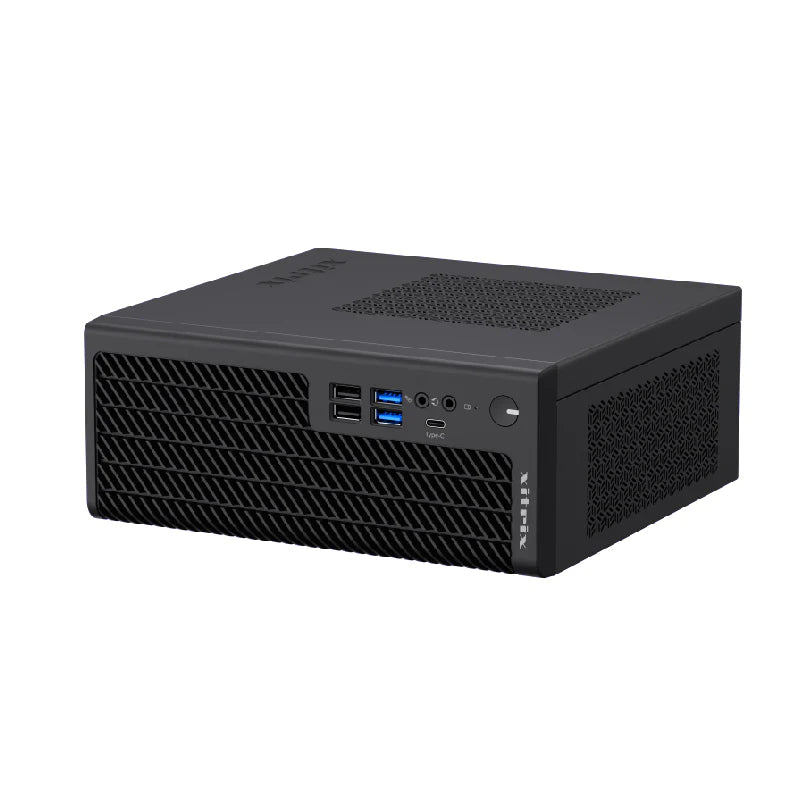

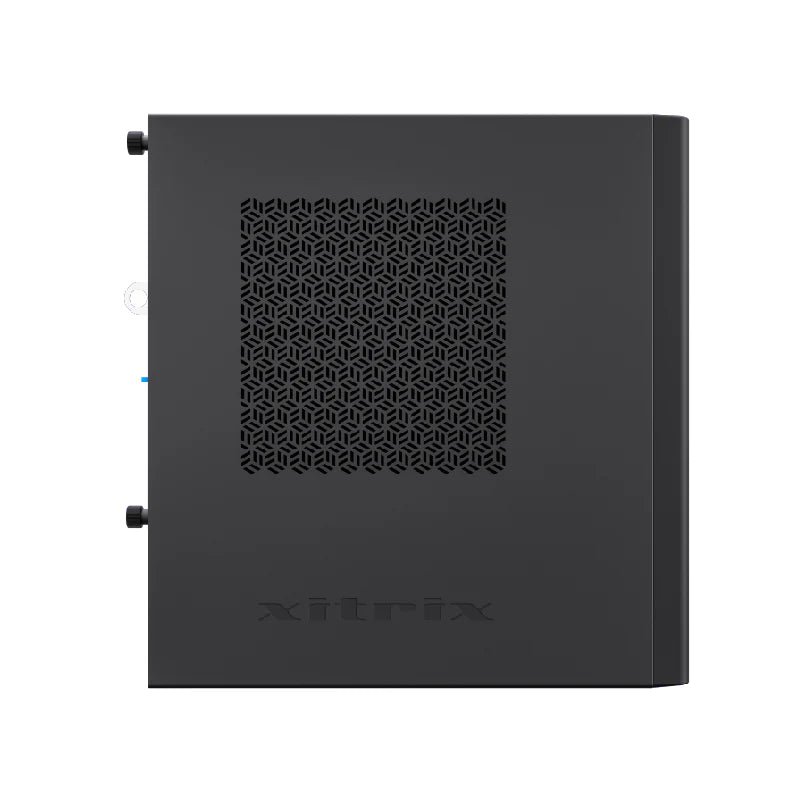

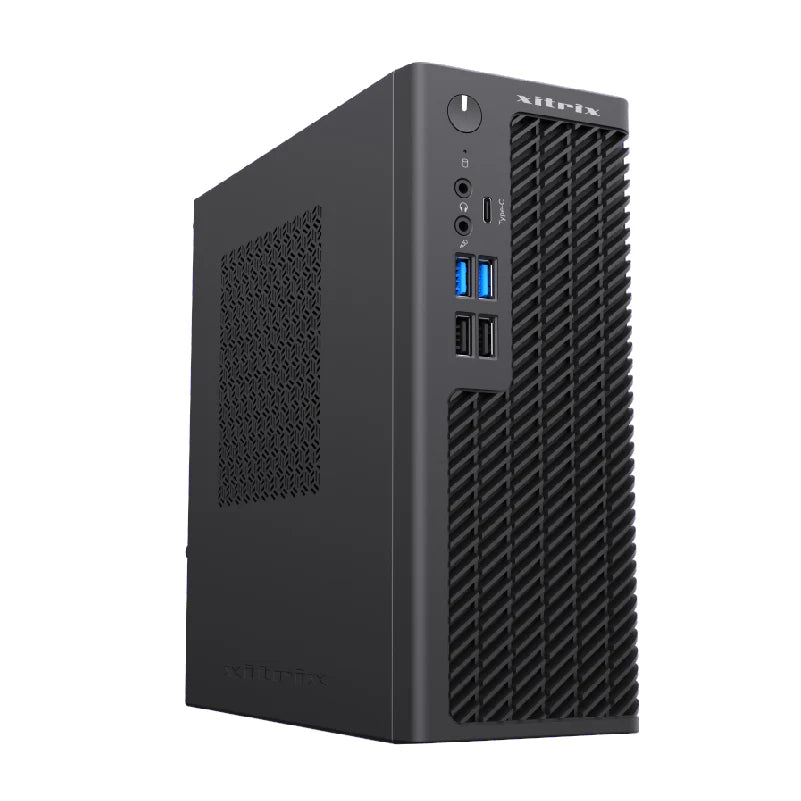

•Ultra Small Form Factor Chassis
•Industrial Grade 1U IPC Flex Power Supply
•Wifi 6 Gig+ with Bluetooth Module, 2.5GB Gigabit LAN
|
Specification
|
Processors |
Support Intel® Core™ Ultra 5, 7 and 9 processors
|
|
Core Chipset |
Intel® B860 Express Chipset |
|
Operating System |
Supports Microsoft Windows 11 Home and Professional; 64 bit |
|
System Memory |
Two DDR5 SDRAM Dual Inline Memory Module (DIMM) sockets; Supports up to 96 GB Memory Supports Dual Channel DDR5 4800/ 5200(OC)/ 5400(OC)/ 5600(OC)/ 6000+(OC) |
|
Graphics |
Integrated Intel® HD graphics engine |
|
Storage Options |
Up to 4TB Serial ATA 6Gb/s Hard Drive Up to 4TB M.2 NVME SSD Up to 4TB SATA 6Gb/s SSD Solid State Drive Supports Dual Drive ( M.2 and 2.5inch) |
|
Media Storage |
Optional USB 8x DVD Writer Drive; USB Media Card Reader |
|
Audio |
Intel® High Definition Audio (Intel® HD Audio) |
|
Peripheral Interfaces |

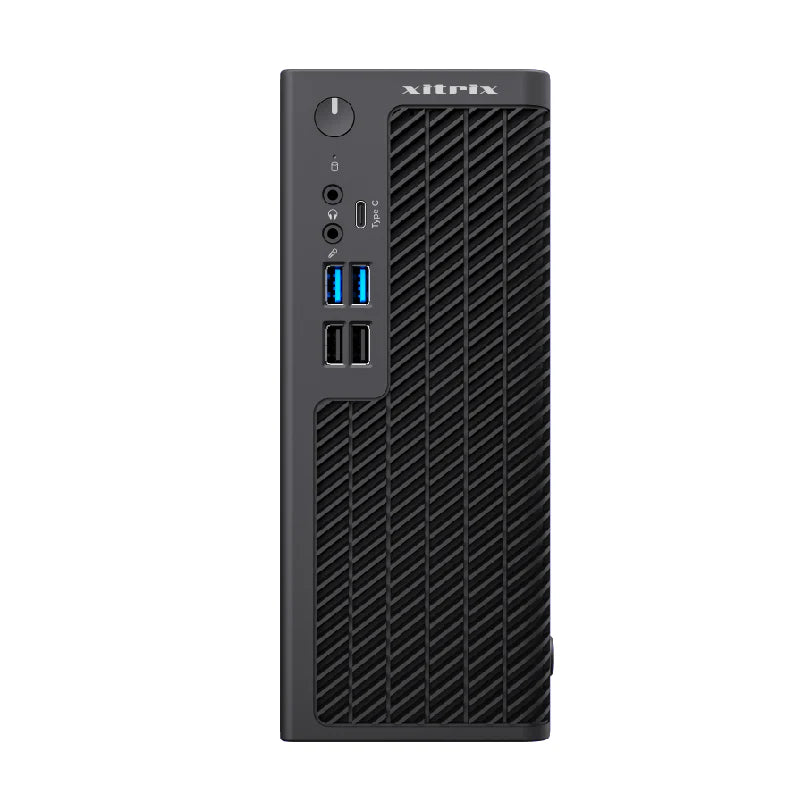

Standard Front Ports: Two Super Speed USB 3.0 front and Two USB 2.0 ports, 2x Audio Jack Ports, 1x USB 3.2 Type C Port Optional Front Ports: 2 x Antenna Ports, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen2x2 Type-C Port (20Gb/s), 1 x USB 3.2 Gen2 Type-A Port, 2 x USB Gen1 Ports, 4 x USB 2.0 Ports, 2 x RJ-45 Lan Ports, HD Audio Jacks: Line in / Front Speaker / Microphone |
|
Monitors |
Choice of Xitrix® Branded Flat Panel LED Display |
|
Slots |
1 X PCI Express X16 Gen 5.0 slot(s) 1 X PCIe 4.0 M.2 (64Gb/s) SSD Storage, 1 x M.2 Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi |
|
LAN Support |
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) and 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V) Wi-Fi 6E Module Dual-Band 2x2 with extended 6GHz band support; Supports Bluetooth 5.3
|
|
Chassis Type Dimension Power Supply |
Xitrix DeskFrame Ultra Small Form Factor 4L Tool Free Chassis; kensington lock/padlock/Intrusion (L)230*(W)93*(H)228mm 300Watts High Efficiency 80Plus Flex 1U Power supply Optional 350Watts High Efficiency 80Plus Flex 1U Power supply |
|
Accessories |
Xitrix Ergonomic Design USB Business Keyboard and Mouse with Mouse Pad Optional USB DVD Writer Drive and USB Media Card Reader |
|
Standard Warranty and Service Offerings |
Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service Optional 3 Years Next Business Day on-site |
