Features
|
Configuration
|

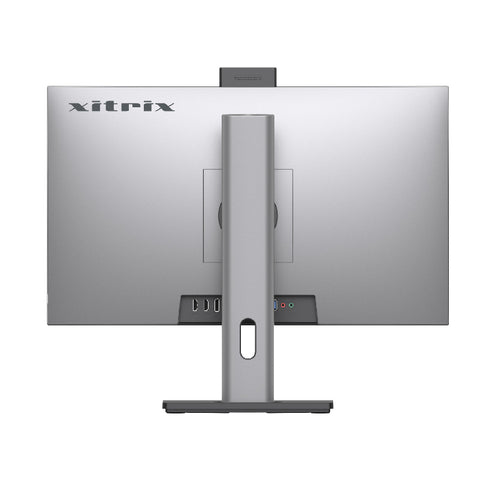

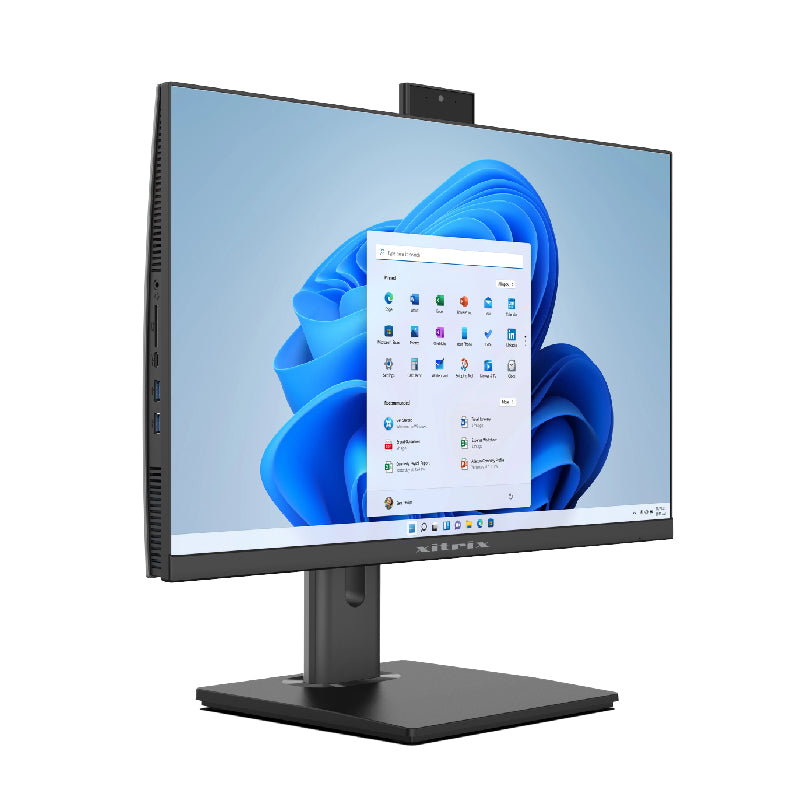

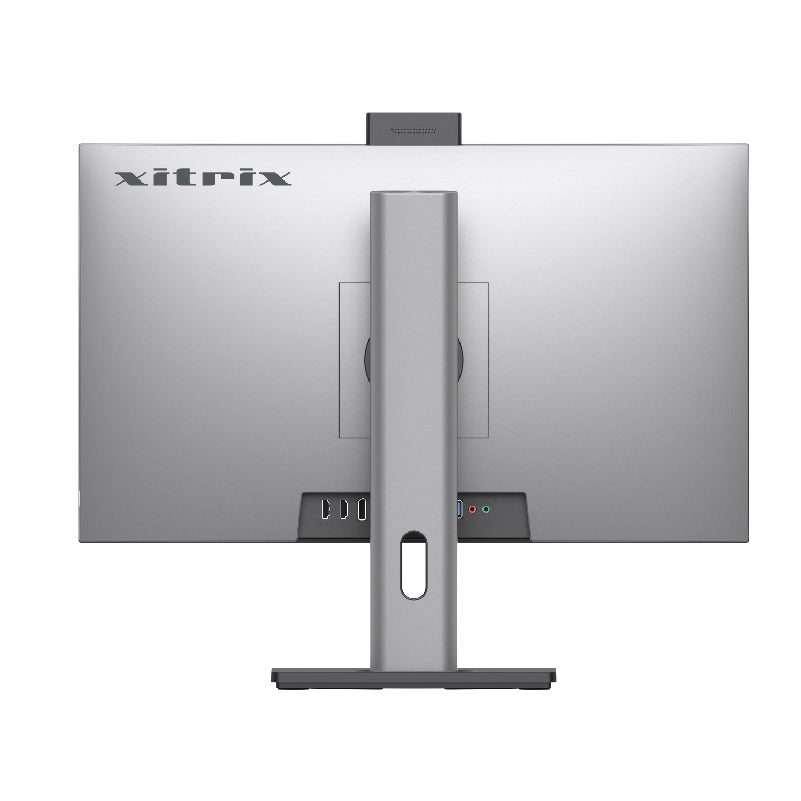

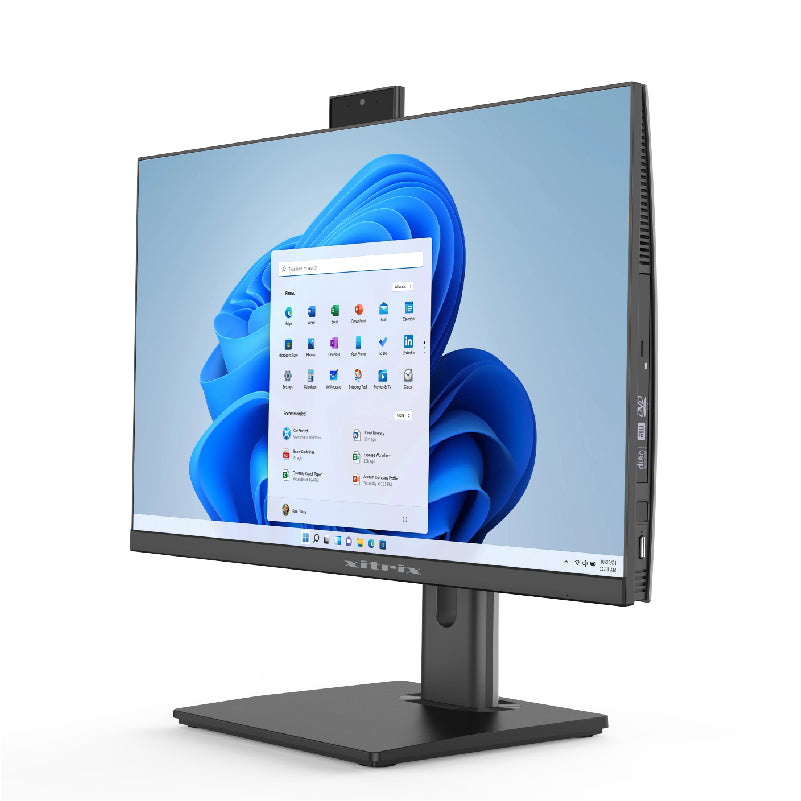

DeskFrame A24 AIO
|
Specification
|
Processors |
Support Up to for 14th Gen Intel® Core™ i3, i5 and i7 processor series |
|
Core Chipset |
Intel® H610 Express Chipset |
|
Operating System |
Supports Microsoft Windows 11 Home and Professional 64 bit |
|
System Memory |
Two DDR5 SDRAM Dual Inline Memory Module (DIMM) sockets; Supports up to 96 GB Memory Supports Dual Channel DDR5 4800/ 5200(OC)/ 5400(OC)/ 5600(OC)/ 6000+(OC) |
|
Graphics |
Integrated Intel® HD graphics engine |
|
Hard Drive |
Up to 4TB SATA 6Gb/s SSD Solid State Drive; Up to 4TB M.2 2280 Solid State Drive Support 2.5inch Hard Drive / SSD Storage |
|
Optical Drive |
Optional 8x SATA DVD±R ± RW Drive w/dbl layer write capability; Built in Multi in one Card Reader |
|
Audio |
7.1 CH HD Audio (Realtek ALC897 Audio Codec); HD Audio Jacks: Line in / Front Speaker / Microphone |
|
Peripheral Interfaces |
Side Ports: 2 X USB3.0 (USB3.1 GEN1 Type A) 1x USB Type C Port, 1 x Multi Card Reader Port Main Board Rear Ports: 4 x USB 3.0 Type A Ports 2 x HDMI Ports 1 x DP DisplayPort 1 x LAN port, 3 x Audio Jack 1 x DC IN1_19V
|
|
Communication |
Integrated Gigabit Ethernet Controller 10/ 100/ 1000 Mb/s Optional Intel® Dual Band Wi-Fi 6 AX201 2x2 AX + Bluetooth 5.2 3Mp 1080p Integrated Camera w/ With Dual Microphone，Push Up/Down Privacy Feature |
|
Dimension |
Product Dimension (with stand, W*H*D) 543(W)*458(H)x55mm(D) |
|
Power |
150w Power AC Adapter |
|
Standard Warranty and Service Offerings |
Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service Optional 3 Years Next Business Day on-site |
Services
Standard Warranty and Service Offerings
|
Downloads
| Title | Date | Filename | |
| Product Brochure Data Sheet OS: Adobe Acrobat Reader | July, 2024 | DESKFRAME-A24_AIO.pdf | Download |
