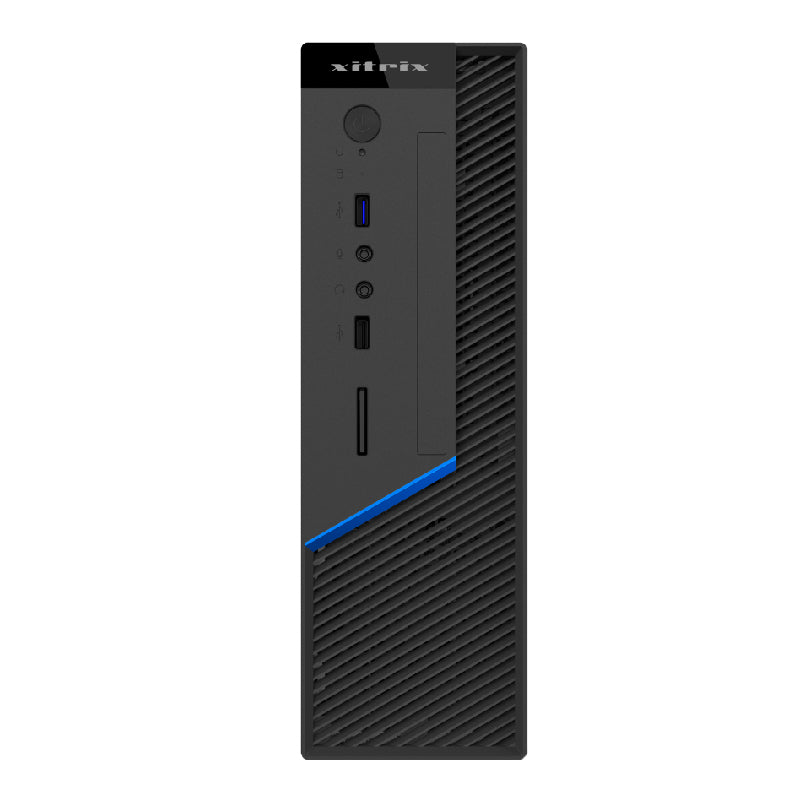

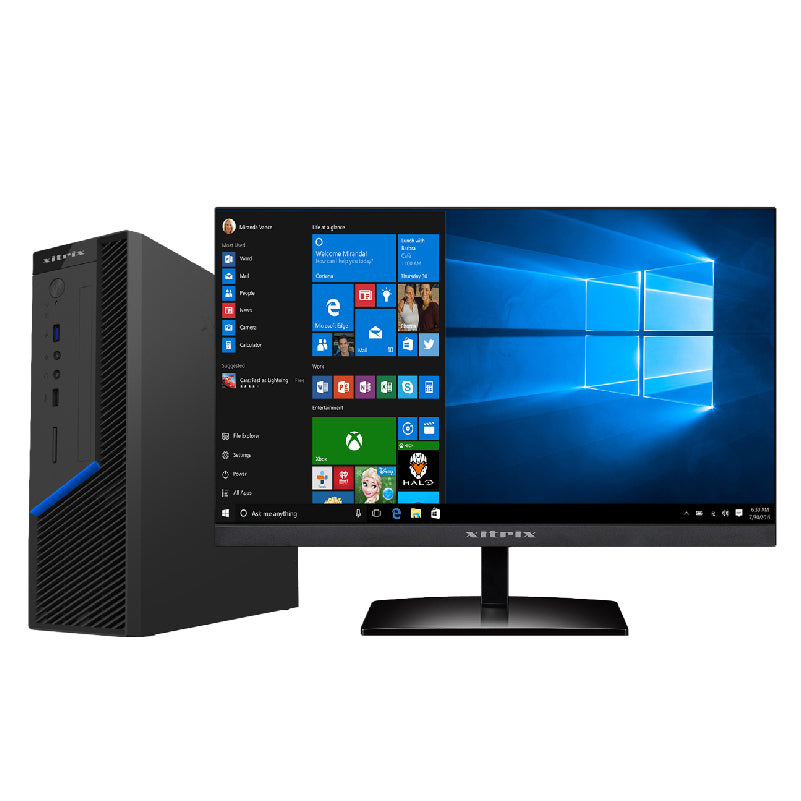

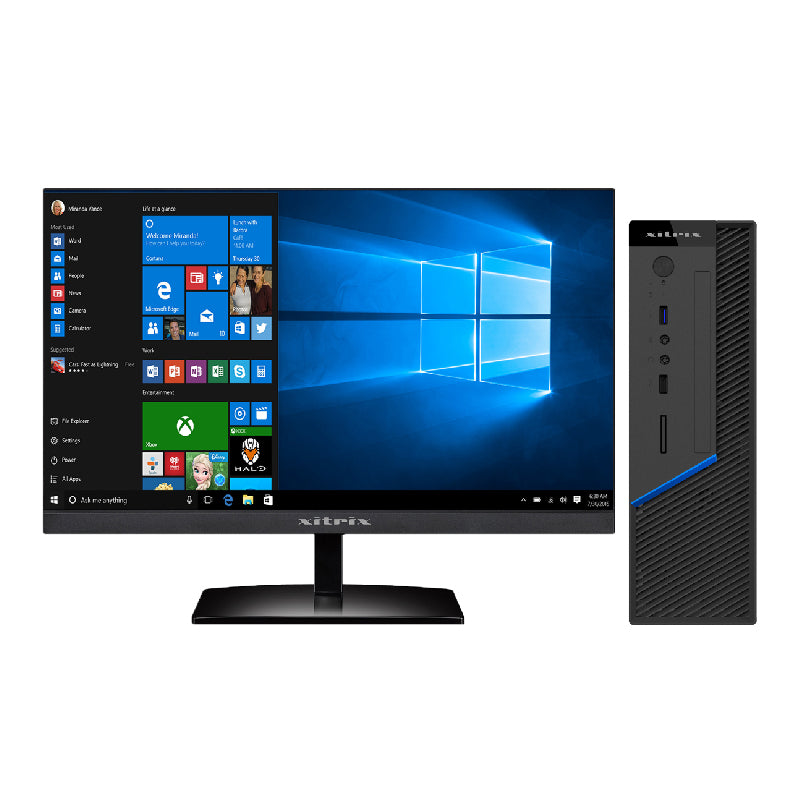

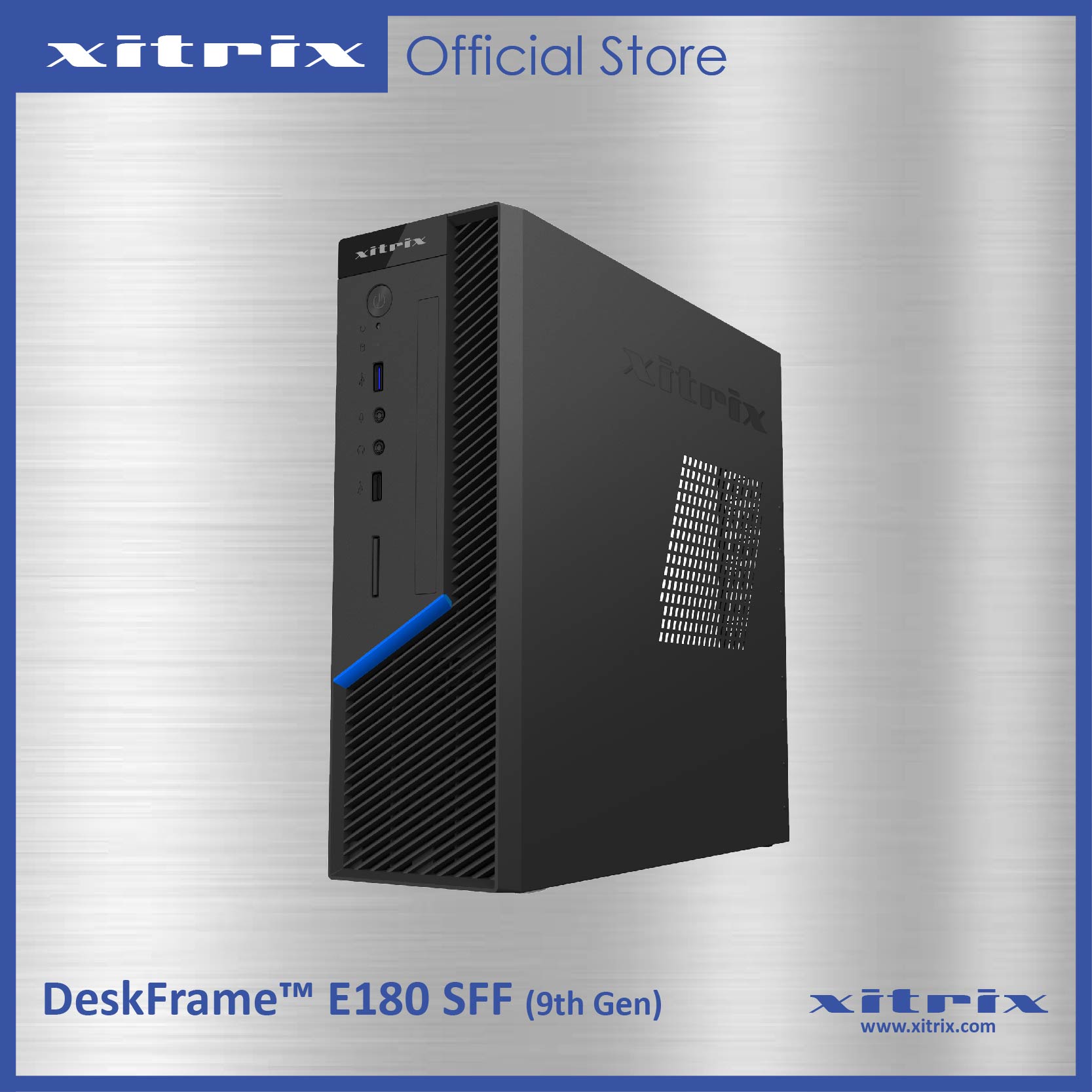

Xitrix DeskFrame E180 Small Form Factor PC
|
Specification
| Processors | Support for 9th Intel® Core™ i3, i5 and i7 processor series in an LGA1151 socket
Supports Intel® Celeron™ Processor and Intel® Pentium™ Processor |
| Core Chipset | Intel® H310 Express Chipset |
| Operating System | Genuine 64bit Microsoft® Windows® 10; Microsoft® Windows™ 10 Professional |
| System Memory | Two DDR4 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for up to DDR4 2400/2666 MHz ; Support for up to 32 GB of system memory |
| Graphics | Integrated Intel® HD graphics engine |
| Hard Drive | Up to 2TB Serial ATA 6Gb/s Hard Drive
Up to 2TB SATA 6Gb/s SSD Solid State Drive |
| Media Storage | Optional 8x DVD Writer Drive
Built in Media Card Reader |
| Audio | Intel® High Definition Audio (Intel® HD Audio); Built in Speaker Module |

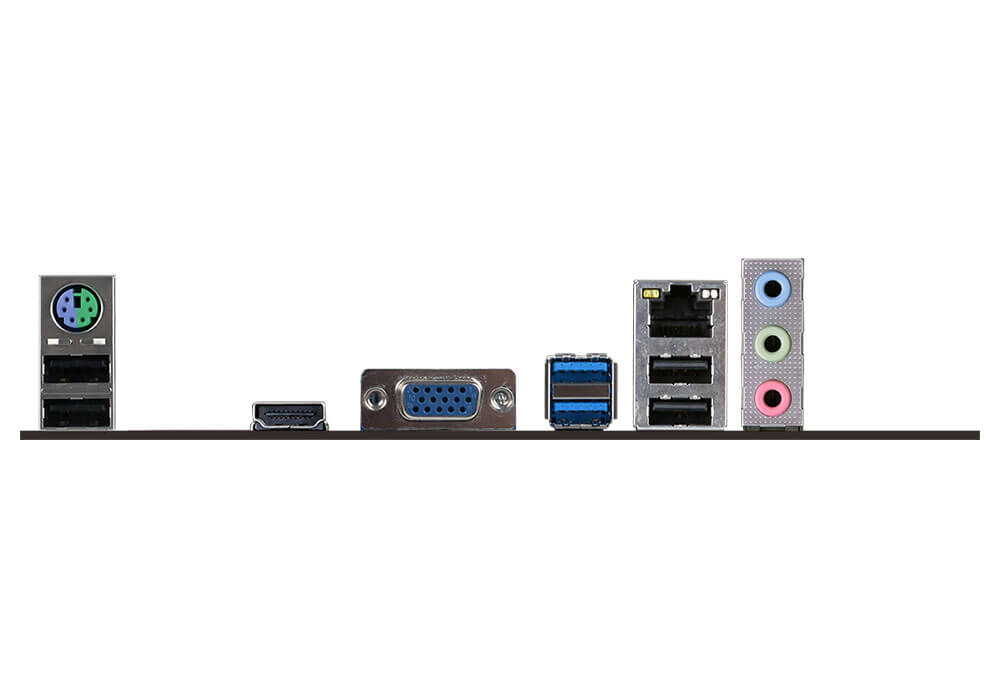

| Peripheral Interfaces | Two Super Speed USB 3.0 front and Two USB 3.1 Gen 1 Rear ports; Four USB 2.0 Rear Ports
VGA Port and HDMI Port; PS2Port, Audio Ports, Gigabit Network Port |
| Monitors | Choice of Xitrix® Branded Flat Panel LED Display (Separate Purchase) |
| Slots | 1 X PCI Express X16 Gen 3.0 slot(s)
1 X PCI Express X 1 Gen 2.0 slot(s) |
| LAN Support | (10/100/1000 Mb/s) LAN subsystem Gigabit Ethernet Controller
Optional Intel® Dual Band Wireless-AC 3168 with Dual Mode Bluetooth®4.2 BLE |
| Chassis Type | Xitrix DeskFrame SFF Tool Free Chassis |
| Dimension | 290*92.5*280mm |
| Power Supply | 250Watts High Efficiency 80Plus Power Supply |
| Pre-installed | Microsoft Office 2016 30 Days Trial , Free Factory Installed Microsoft Security Essentials |
| Accessories | Xitrix Multimedia Keyboard and Optical Scroll Mouse |
| Standard Warranty and Service Offerings | Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service
Optional 3 Years Next Business Day on-site |
Services
Standard Warranty and Service Offerings
|
Downloads
| Title | Date | Filename | |
| E-180 SFF Product Brochure Data Sheet OS: Adobe Acrobat Reader | Sept 2020 | Deskframe-E180-SFF.pdf | Download |
| E-180 SFF Setup Guide Data Sheet OS: Adobe Acrobat Reader | Sept 2020 | Deskframe-E180-SFF_setup-guide.pdf | Download |
| Driver Name | OS (Operating System) | Discription | |
| DeskFrame E-180 | Windows 10 64Bit | Chipset | Download |
| DeskFrame E-180 | Windows 10 64Bit | ME | Download |
| DeskFrame E-180 | Windows 10 64Bit | LAN | Download |
| DeskFrame E-180 | Windows 10 64Bit | AUDIO | Download |
| DeskFrame E-180 | Windows 10 64Bit | VIDEO | Download |
| DeskFrame E-180 | Windows 10 64Bit | VIDEO GT710 | Download |
