Configuration
|

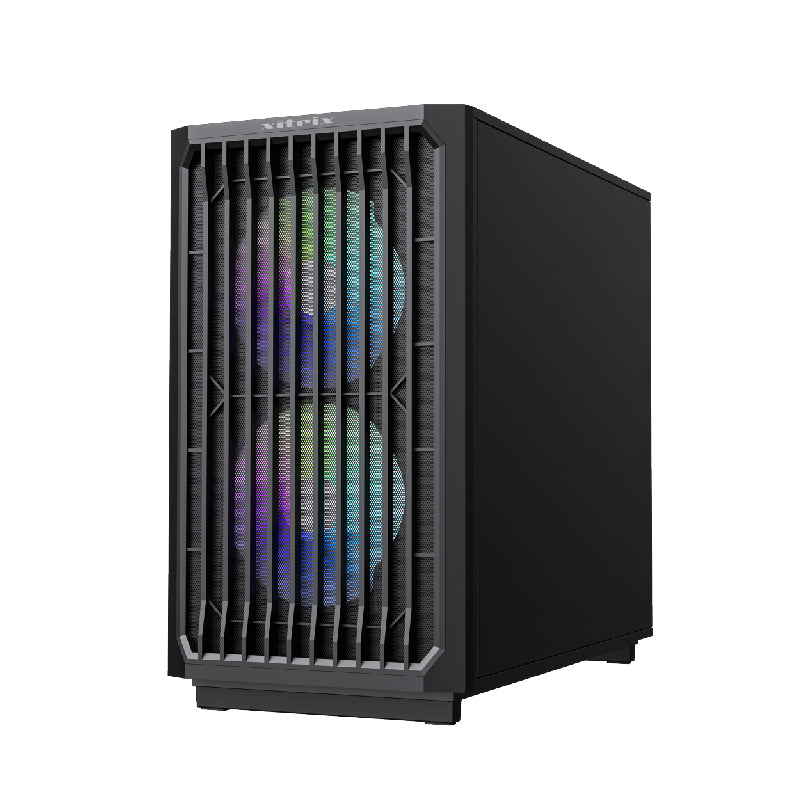

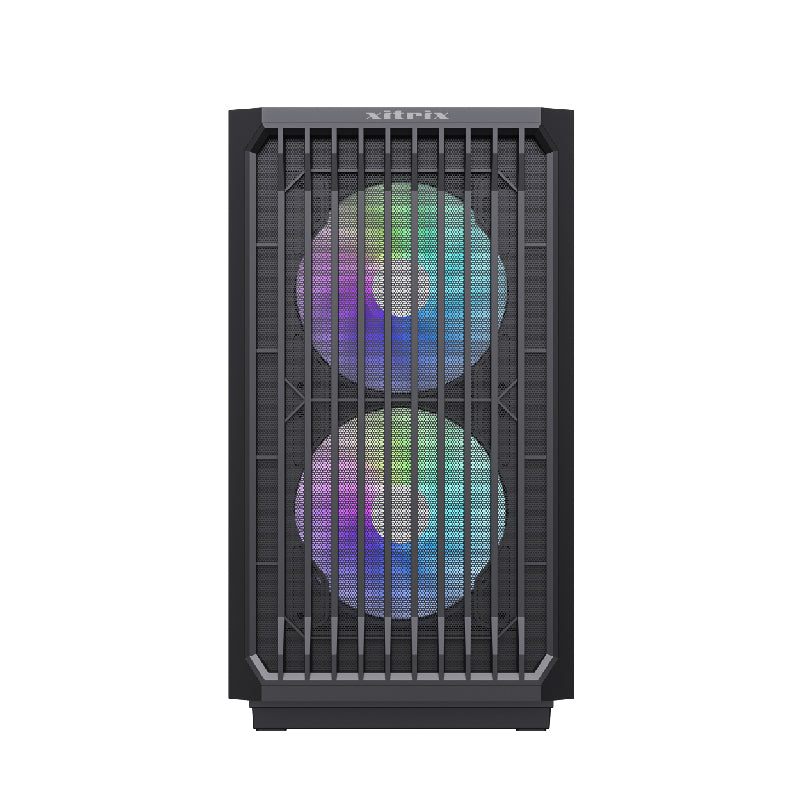

Xitrix GL1 Gen2 Gaming PC •Support Latest Gen Intel® Core™ Series Processor •Up to 96GB DDR5 Memory •Supports GeForce RTX 40 Series; GeForce GTX 16 Series Graphic Cards •850 Watts Fully Modular Platinum Power Supply |
Specification
|
Processors |
Support for 14th Gen Intel® Core™ i3, i5 and i7 processor series Support for 12th and 13th Gen Intel® Core™ i3, i5 and i7 processor series Supports Intel® Celeron™ Processor and Intel® Pentium™ Processor |
|
CPU Cooler |
Stock Intel CPU Cooler Supports Optional 120mm AIO RGB Liquid Cooling System |
|
Core Chipset |
Intel® H610 Express Chipset or Intel® B760 Express Chipset |
|
Operating System |
Microsoft® Windows® 11 Home or Professional |
|
System Memory |
2 x DDR5 DIMM sockets supporting up to 96 GB Support for DDR5 4800 / 5600 MT/s memory modules Supports Intel® Extreme Memory Profile (XMP) 2.0 |
|
Graphics |
Supports GeForce RTX 40 Series; GeForce RTX 30 Series and GTX 16 Series Graphic Cards |
|
Hard Drive |
Up to 18TB Serial ATA 6Gb/s Hard Drive ( 3.5 inch) Up to 4TB SATA 6Gb/s SSD Solid State Drive (2.5inch) Up to 4TB M.2 2280 Solid State Drive 4 x SATA III Connector (6Gb/s): Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology Supports PCIe 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD & SATA SSD |
|
Audio |
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Supports Surge Protection |
|
Peripheral Interfaces |
Two Super Speed USB 3.0 front port; Rear Ports: 1 X USB 3.2 Gen 2x1 Type A port(s), 1 x USB 3.2 Gen 2 Type C, 2 X USB2.0 port(s), 2x PS2 Ports, 3 Audio Jack Ports (Line Out/Line In/Mic In), 1 x HDMI 2.0 Port, 1 x VGA Port, 1 x Display Port, 1 x RJ45 Port |
|
Monitors |
Choice of Xitrix® Branded Flat Panel LED Display |
|
Slots |
1 X PCI Express X16 Gen 5.0 slot(s); 2 X PCI Express X 1 Gen 3.0 slot(s); 1 X M.2 2242/2280 Storage Slot, 1 x M.2 2230 Slot for Wifi |
|
LAN Support |
(10/100/1000 Mb/s) LAN subsystem Gigabit Ethernet Controller Optional Intel® Dual Band Wi-Fi 6 AX201 2x2 AX + Bluetooth 5.2 |
|
Chassis Type Dimension Power Supply |
Xitrix DeskFrame G- Series Gen 2 Tool Free Gaming Chassis; clear window side panel (L)386*(W)216*(H)367mm 850 Watts Fully Modular Platinum Power Supply ; up to 1200Watts Modular PSU |
|
Chassis Fan |
Front Fan: 2x 140MM PWM Fan Rear Fan: 1x 120MM PWM Fan |
|
Standard Warranty |
3-Year Limited Parts Warranty & Technical Support Policy |
Services
|
Standard Warranty and Service Offerings 3 Years Warranty on Parts and Labor |
Downloads
| Title | Date | Filename | |
| GL1 Product Brochure Data Sheet OS: Adobe Acrobat Reader | Sept 2024 | Deskframe-GL1-D5.pdf | Download |
