Configuration
|
•Support Intel® Core™ Ultra processors
•Up to 96GB DDR5 System Memory
•Supports Dual Drive configuration
•Small Form Factor Chassis
•NextGen Wireless 6 or 7, with Bluetooth Module, 2.5GB LAN
•Energy Star Certified
|
Specification
|
Processors |
Supports Intel® Core™ Ultra 5, 7 and 9 processors |
|
Core Chipset |
Intel® H810 Express Chipset |
|
Operating System |
Supports Microsoft Windows 11 Home or Professional; 64 bit |
|
System Memory |
Two DDR5 SDRAM Dual Inline Memory Module (DIMM) sockets Support for up to DDR5 4800 MHz / 5200MHz / 5600mhz / 6000Mhz; Support for up to 96 GB of system memory |
|
Graphics |
Integrated Intel® HD graphics engine Optional 2GB nVidia GeForce GT710/GT730 / 4GB GT730 Discrete Graphic Card Optional nVidia RTX Series Graphic Card up to 320mm GPU / Video Card Length |
|
Storage Options |
2 x M.2 socket and 4 x SATA III (6Gb/s) ports Up to 14TB Serial ATA 6Gb/s Hard Drive Up to 4TB M.2 Gen4 NVME SSD Up to 4TB SATA 6Gb/s SSD Solid State Drive Supports Dual Drive ( 3.5inch and 2.5inch) |
|
Media Storage |
Optional 8x DVD Writer Drive; Built in Media Card Reader |
|
Audio |
Integrated High Definition Audio ( HD Audio) |
|
Peripheral Interfaces |

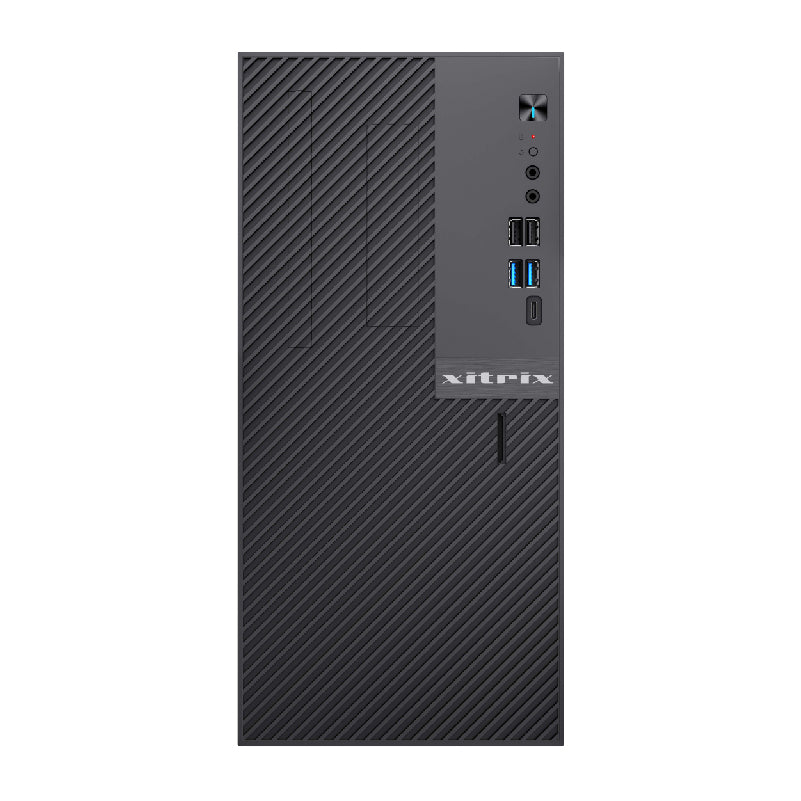

Front Ports: Two Super Speed USB 3.0 front and Two USB 2.0 Front Port; 1x Audio Combo Jack Ports, 1x Type C Port Optional Front Ports: Four Super Speed USB 3.2 Type A front , 2x Audio Jack Ports, 1x USB 3.2 Type C Port Rear Ports: 2 X USB 3.2 Gen 2x1 Type A port(s), 4 X USB2.0 port(s), 1 X Audio port (Line Out/Line In/Mic In), 1 X RJ-45 port, 1 X HDMI™ port(s), 1 X Display port, 1 X D-Sub (VGA) port(s) |
|
Monitors |
Choice of Xitrix® Branded Flat Panel LED Display |
|
Slots |
1 X PCI Express X16 Gen 5.0 slot; 1 X PCI Express X 1 Gen 3.0 slot; 2 x M.2 socket and 4 x SATA III (6Gb/s) ports, 1 x M.2 2230 Slot for Wifi |
|
LAN Support |
10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability Optional Intel® Dual Band Wi-Fi 6 AX201 2x2 AX + Bluetooth 5.2 |
|
Chassis Type Dimension Power Supply |

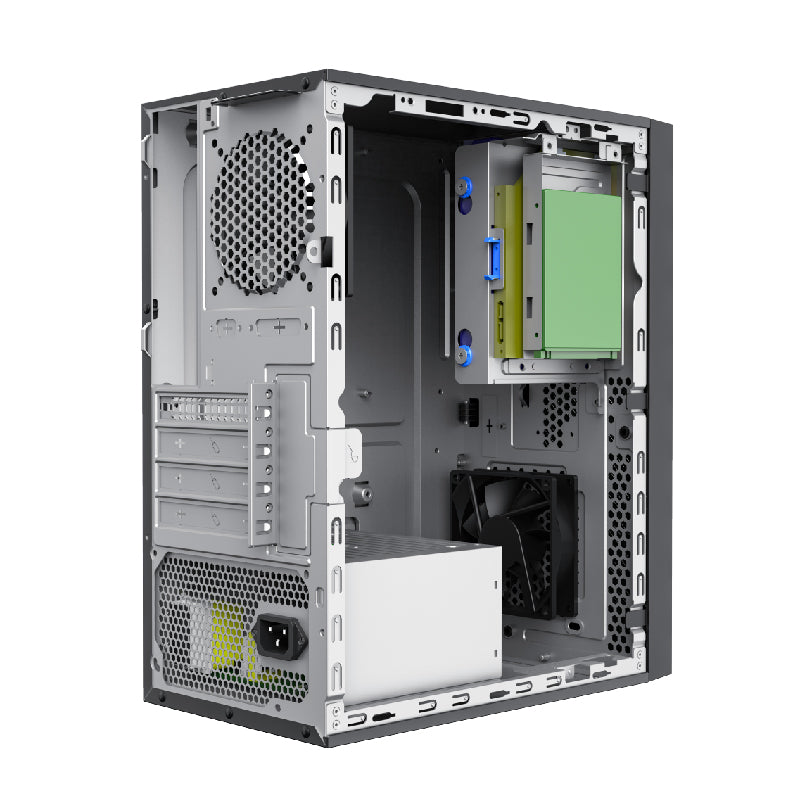

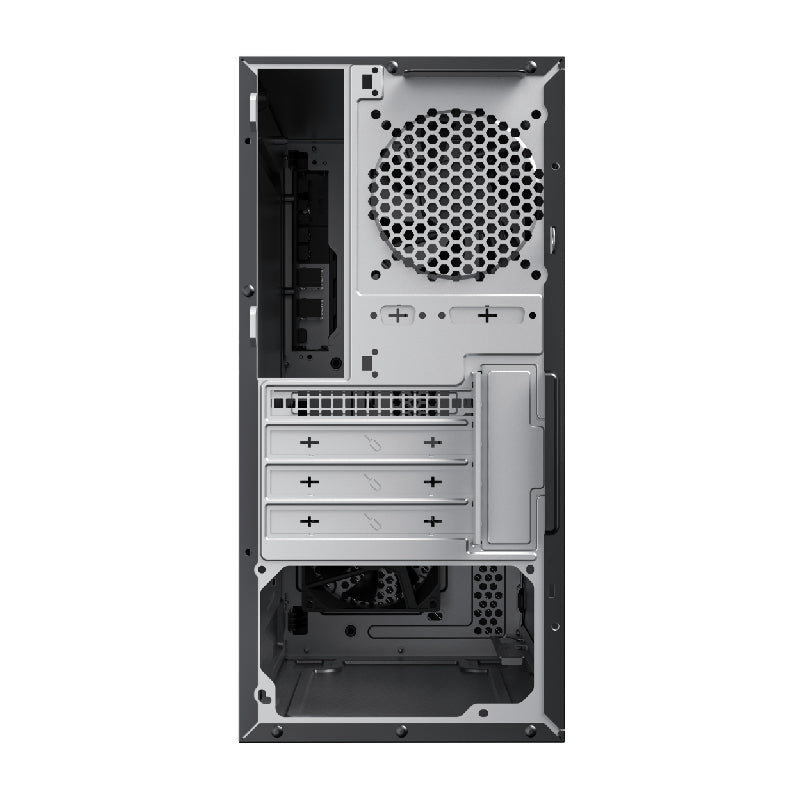

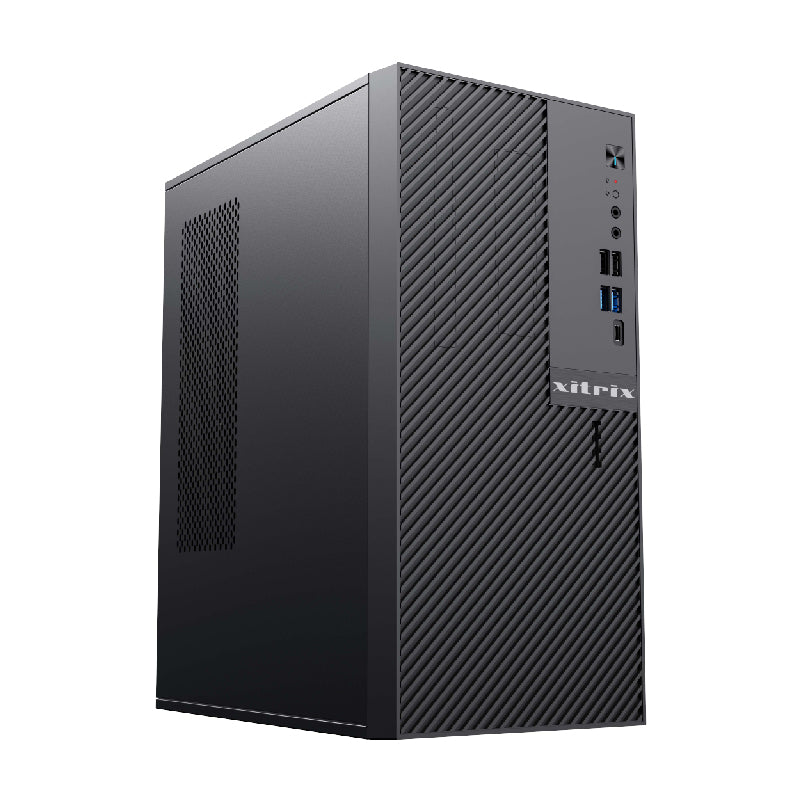

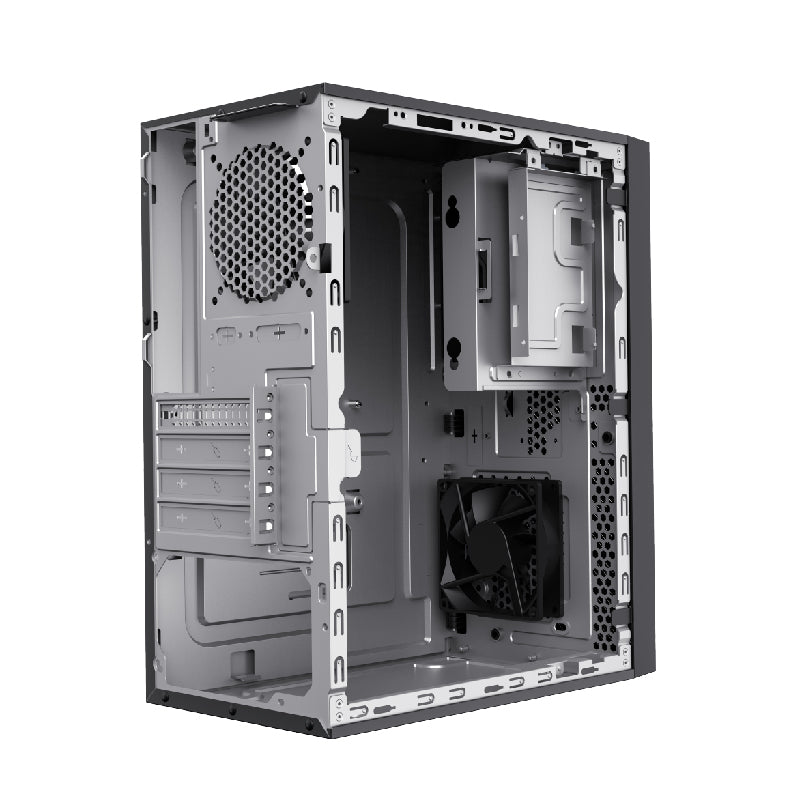

Xitrix DeskFrame Mid Tower Tool Free Chassis; Optional Internal Chassis Audio Speaker (L)343*(W)173*(H)353mm 300Watts High Efficiency 80Plus Power Supply; Optional 500watts and 750 Watts High Efficiency 80Plus Power Supply Built to Order Optional Up to 1000 High Efficiency 80Plus Power Supply |
|
Accessories |
Xitrix Ergonomic Design USB Business Keyboard and Mouse with Mouse Pad |
|
Standard Warranty and Service Offerings |
Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service Optional 3 Years Next Business Day on-site |
Services
Standard Warranty and Service Offerings
|
Downloads
| Title | Date | Filename | |
| DeskFrame™ E320 MDT Product Brochure Data Sheet OS: Adobe Acrobat Reader |
June 2025 |
Deskframe-E320 (H810) MDT.pdf |
