Configuration
|
• Compatible for DeskFrame E180 |
Specification
|
CPU |
100% Solid capacitor design
Please refer to CPU support list for details
|
| Chipset |
Intel® H310 Express Chipset
|
| Graphics |
Supports DirectX® 12
|
| Memory |
Dual-channel DDR4 Memory architecture
Supports DDR4 2666/ 2400 non-ECC, Un-buffered SDRAM Memory
2 X 288-pin DDR4 DIMM socket
∟ Support up to 32 GB*
|
| Expansion Slot |
1 X PCI Express X16 Gen 3.0 slot(s)
1 X PCI Express X1 Gen 2.0 slot(s)
|
| Storage |
Support by Intel® H310 Express Chipset
4 X Serial ATAIII 6Gb/s
|
| Audio |
6-Channel HD audio CODEC
Realtek ALC662 6-channel High Definition audio CODEC
Realtek ALC662
‧Realtek ALC662 6-channel High Definition audio CODEC ‧Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs ‧Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution ‧Emulation of 26 sound environments to enhance gaming experience ‧Voice Cancellation and Key Shifting in Karaoke mode ‧Compatible with Direct Sound 3D™, A3D™, I3DL2 |
| LAN |
Realtek 8111H Gigabit Fast Ethernet Controller
Wake-On-LAN
|
| USB |
Support by H310 Express Chipset
4 X USB 3.2 Gen 1x1 port(s) up to 5Gb/s
---- Back Panel 2 port(s)
---- Onboard 2 port(s)
6 X USB2.0 port(s) Up to 480 Mb/s
---- Back Panel 4 port(s)
---- Onboard 2 port(s)
|

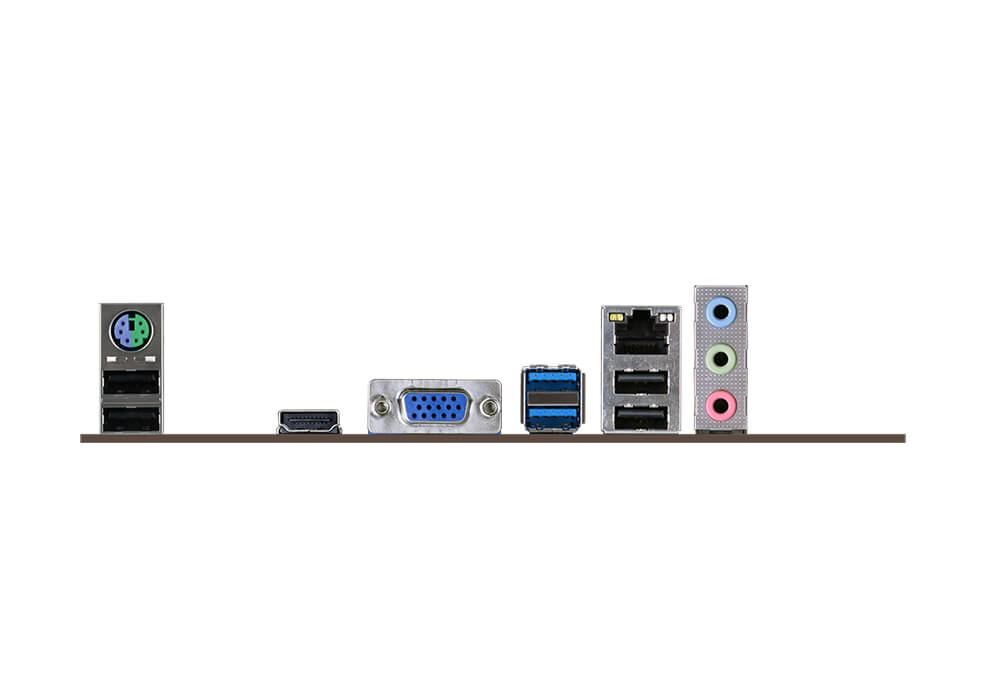

| Rear Panel I/O |
1 X PS/2 combo connector
1 X Audio port (Line Out/Line In/Mic In)
1 X RJ-45 port
1 X D-Sub (VGA) port(s)
1 X HDMI™ port(s) (DVI port(s), optional)
2 X USB 3.2 Gen 1x1 Type A port(s)
4 X USB2.0 port(s)
|
| Connectors & Headers |
1 X 24-pin ATX Power Supply connector
1 X 4-pin 12V Power connector
1 X 4-pin CPU_FAN connector with smart fan
1 X 4-pin SYS_FAN connector with smart fan
1 X Front Panel switch/LED header
1 X Front panel audio header
1 X Onboard Buzzer
1 X USB 3.2 Gen 1x1 header
∟ Support additional 2 USB ports
1 X USB 2.0 header
∟ Support additional 2 USB ports
1 X CLR_CMOS header
1 X TPM header
1 X Chassis intrusion header
|
| System BIOS |
AMI BIOS with 64 MB SPI Flash ROM
ACPI & DMI
F7 hot key for boot up devices option
Dual Display
Support GUI UEFI BIOS
Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
Multi-Language BIOS
Audio, LAN, can be disabled in BIOS
Supports PgUp clear CMOS Hotkey
|
| Form Factor |
mATX Form Factor
190mm x 170mm
|
| OS Support |
Windows 10 64-bit
|
