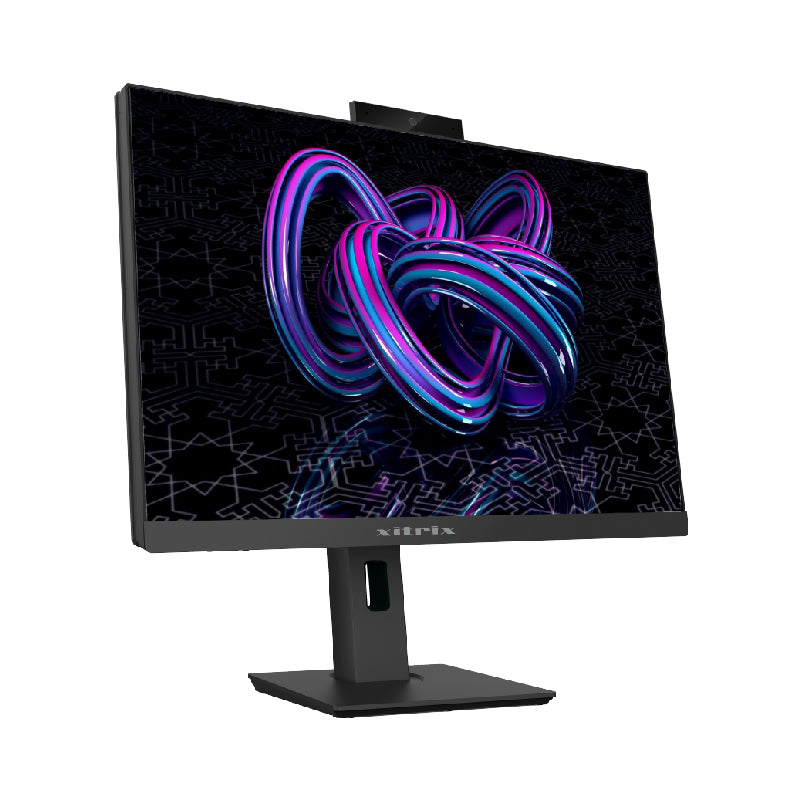

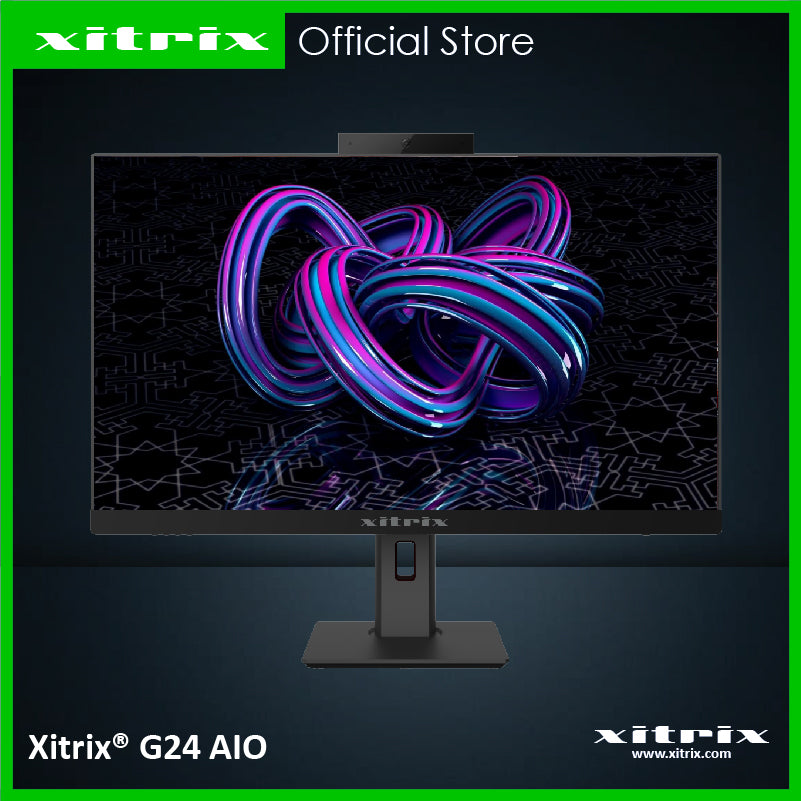

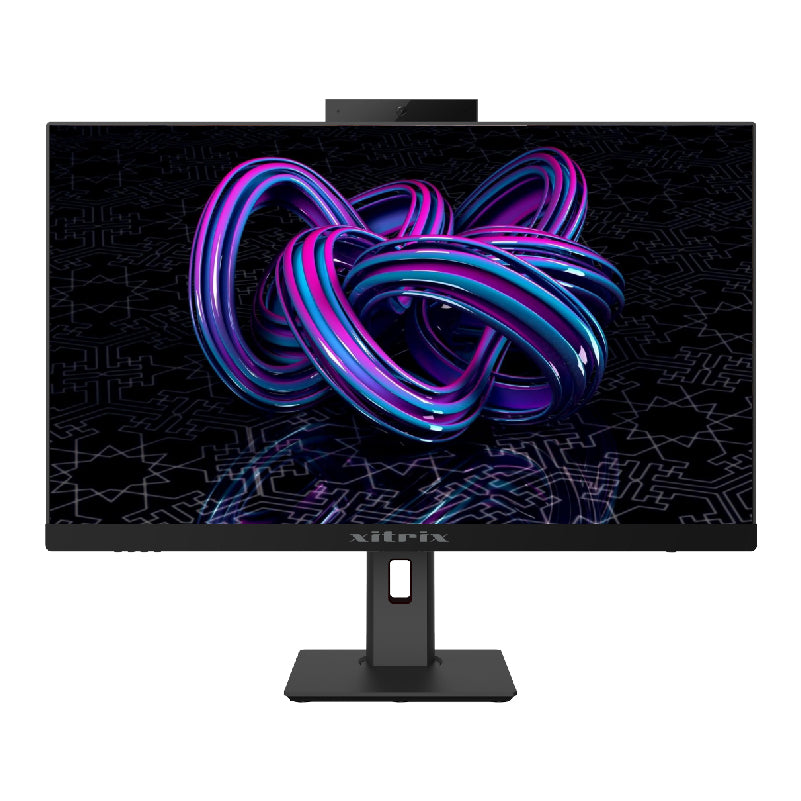

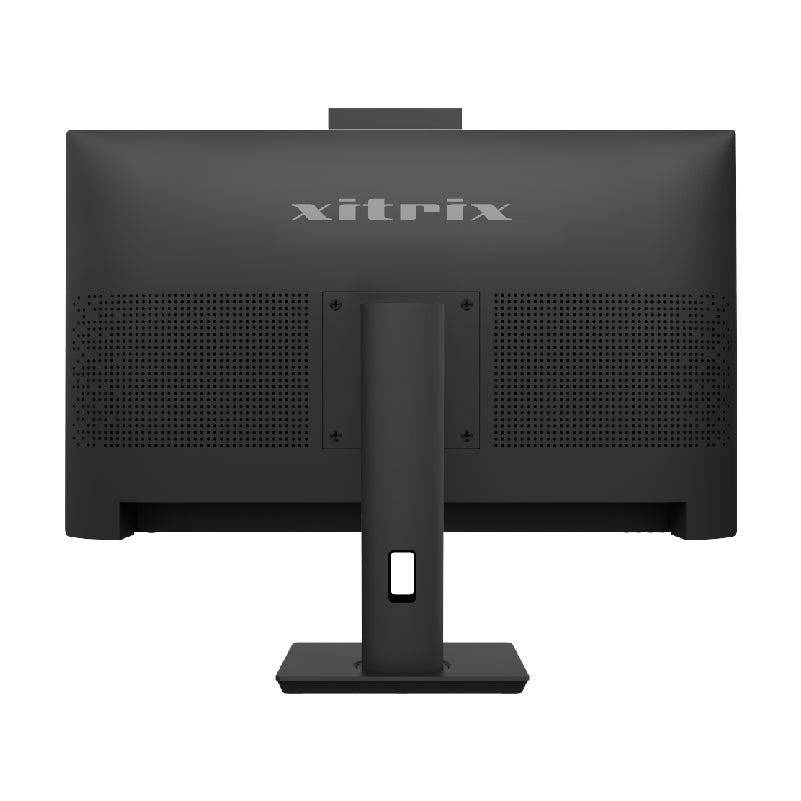

Xitrix® G24 D5 AIO PC

Display

23.8” Full HD 1920x1080p 100Hz All in One Display; with Height Adjustable Stand

Processors

Support for 14th Gen Intel® Core™ i3, i5 and i7 processor series

Support for 13th Gen Intel® Core™ i3, i5 and i7 processor series

Support for 12th Gen Intel® Core™ i3, i5 and i7 processor series

Core Chipset

Intel® H610 or B760 Express Chipset

Operating System

Supports Microsoft Windows 11 Home and Professional 64 bit

System Memory

Two DDR5 SDRAM Dual Inline Memory Module (DIMM) sockets; Supports up to 96 GB Memory

Supports Dual Channel DDR5 4800/ 5200(OC)/ 5400(OC)/ 5600(OC)/ 6000+(OC)

Graphics

Integrated Intel® HD graphics engine

Optional nVidia GeForce 2GB / 4GB GT710 / GT-730

Optional nVidia GeForce GT 1030 (2GB GDDR5 / 6.0 GHz / 64-bit)

Optional nVidia GeForce GTX 1050 (4GB GDDR5 / 7 GHz / 128-bit)

Hard Drive

Up to 4TB SATA 6Gb/s SSD Solid State Drive;

Up to 4TB M.2 2280 Solid State Drive

Support Dual 2.5inch Hard Drive / SSD Storage

Optical Drive

Optional 8x SATA DVD±R ± RW Drive w/dbl layer write capability;

Built in Multi in one Card Reader

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec);

HD Audio Jacks: Line in / Front Speaker / Microphone

Peripheral Interfaces

Side Ports: 1 X USB3.0 (USB3.1 GEN1 Type A) 1x USB Type C Port, 2 x HDMI IN Port

H610 Chipset Main Board Ports:

2 x WIFI Antenna Port

1 x HDMI Port (HDMI2.1), 1 x DP Port (DP1.2)

1 x USB 3.2 (Gen2) Type-C Port

1 x USB 3.2 (Gen2) Port

2 x USB 2.0 port

1 x LAN port, 3 x Audio Jack

Side Ports: 1 X USB3.0 (USB3.1 GEN1 Type A) 1x USB Type C Port, 2 x HDMI IN Port

B760 Chipset Main Board Ports:

2 x WIFI Antenna Port

1 x HDMI Port (HDMI2.1), 1 x DP Port (DP1.2)

1 x USB 3.2 (Gen2) Type-C Port

5 x USB 3.2 (Gen2) Port

2 x USB 2.0 port

1 x LAN port, 3 x Audio Jack

Communication

B760: 2.5GB LAN subsystem Gigabit Ethernet Controller 10/ 100/ 1000/ 2500 Mb/s

H610: 1GB LAN subsystem Gigabit Ethernet Controller 10/ 100/ 1000

Optional Intel® Dual Band Wi-Fi 6 AX201 2x2 AX + Bluetooth 5.2

5M Integrated Camera w/ With Dual Microphone，Push Up/Down Privacy Feature

Dimension

538*453*71mm; 7.7KG

Power

Flex 1U PSU 350 WATTS High Efficiency Power Supply

Standard Warranty and Service Offerings

Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service

Optional 3 Years Next Business Day on-site
