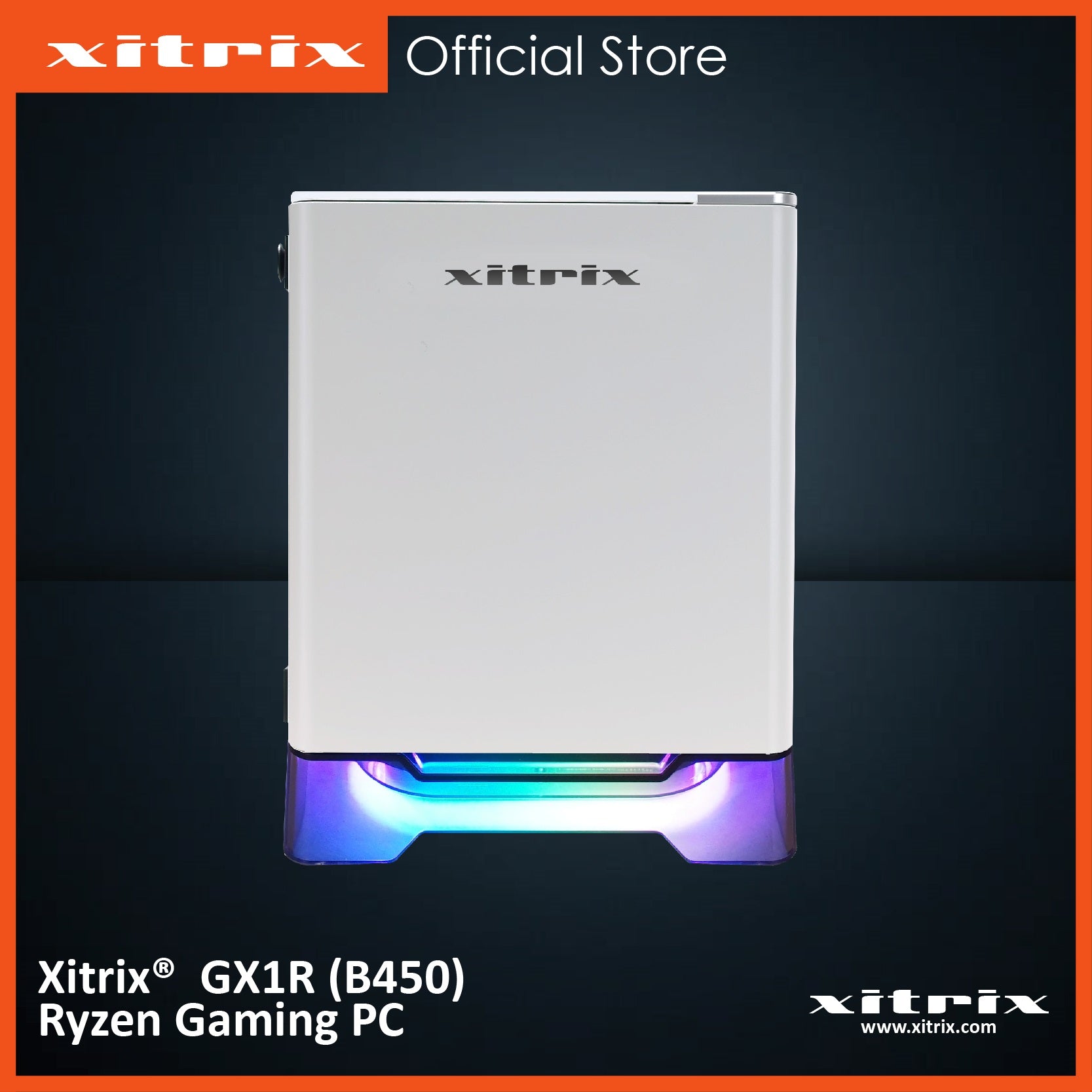

Xitrix® GX1R (B450) Ryzen Gaming PC

DeskFrame™ GX1r ( B450 Ryzen R5)

• AMD Ryzen™ 5 3600   Processor
• 32M Cache, up to Up to 4.2GHz
• 6 Cores and 12 Threads

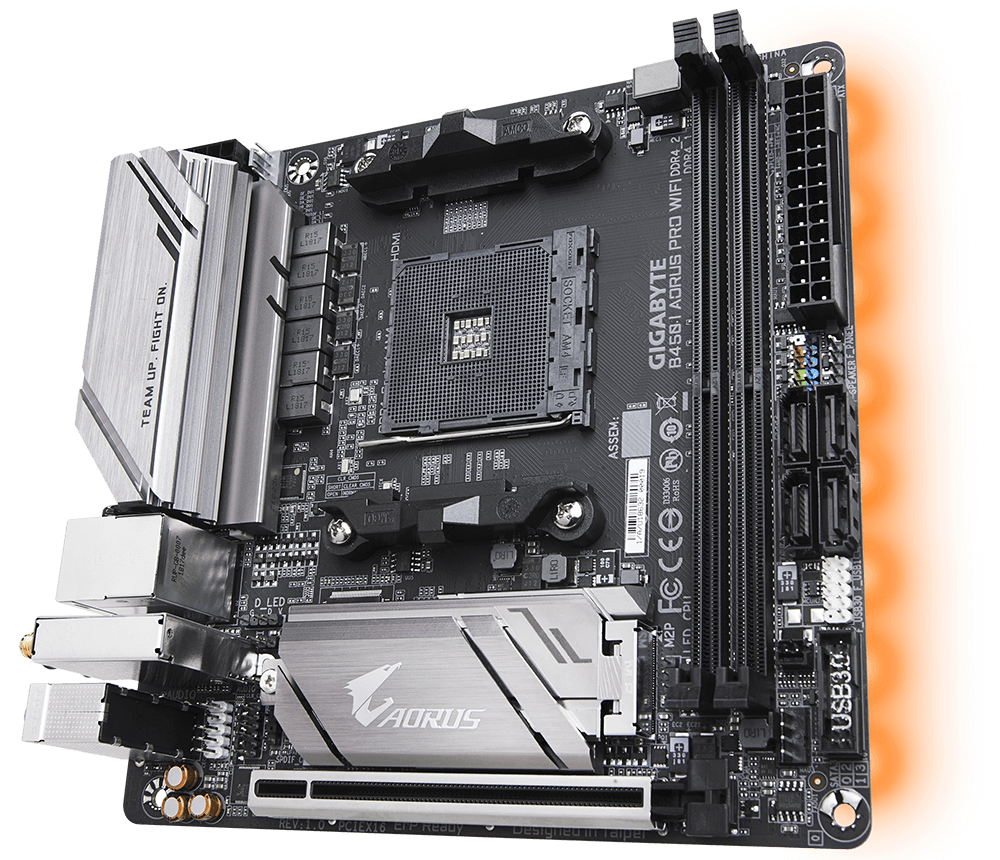

• AMD B450I Mini-ITX AORUS   Motherboard;  Support for RAID 0, RAID 1
• RGB 16GB Kit (2 x 8GB) DDR4-3200 Desktop Gaming Memory
• 500GB 2.5-inch Solid State Drive
• GeForce® GTX 1650
• Intel® GbE LAN with cFosSpeed Internet Accelerator Networking
• Intel® Dual Band 802.11ac Wave2 WIFI & BT 5
• RGB Fusion 2.0 with Digital LEDs Support
• Xitrix® GX1 Mini ITX Compact Chassis w/ Top Panel Qi 1.2 Wireless Charger
• 2 x USB 3.1 Gen 2 Type-A ports (red) and 4 x USB 3.1 Gen 1 ports

• ALC1220-VB Immersive Gaming ViBes High Definition Audio
• 3 Years Warranty on Parts and Labor
• Operating system Sold Seperately

Supported Processors

AMD Ryzen™ 9 3950X Processor 64M Cache, Up to 4.7 GHz; 16 Cores and 32 Threads

AMD Ryzen™ 9 3900X Processor 64M Cache, Up to 4.6 GHz; 12 Cores and 24 Threads

AMD Ryzen™ 7 3700X Processor 32M Cache, Up to 4.4 GHz; 8 Cores and 16 Threads

AMD Ryzen™ 5 3600 Processor 32M Cache, Up to 4.2 GHz; 6 Cores and 12 Threads

Core Chipset

AMD® B450 Chipset

Operating System

Genuine 64bit Microsoft® Windows® 10; Microsoft® Windows™ 10 Professional

System Memory

Two DDR4 SDRAM Dual Inline Memory Module (DIMM) sockets

Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules

Supported Graphics

GeForce RTX 2080 Super 8GB GDDR6 256-bit 3072 CUDA cores

GeForce RTX 2070 Super 8GB GDDR6 256-bit 2560 CUDA cores

GeForce RTX 2060 6GB GDDR6 192-bit 1920 CUDA cores

Slots

1 x PCI Express 3.0 x16 Slot; VGA Card Length: 320mm

Hard Drive

Up to 2 x 2.5inch SATA Solid State Drive

Up to 2 x Ultra M.2 Socket SSD Solid State Drive

Support RAID Intel® Rapid Storage Technology

Audio

7.1 CH HD Audio Realtek® ALC1220-VB codec

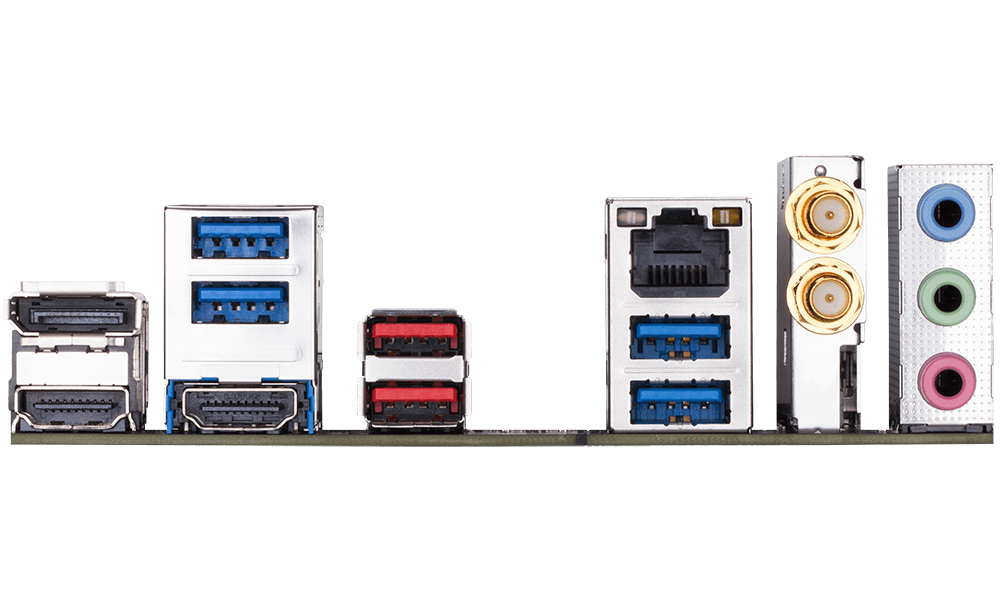

Peripheral Interfaces

1 x DisplayPort

2 x HDMI ports

2 x USB 3.1 Gen 2 Type-A ports (red); up to 10Gbps

4 x USB 3.1 Gen 1 ports; 2 x USB 30 TOP Front Ports

1 x RJ-45 port

2 x SMA antenna connectors (2T2R)

3 x audio jacks

LAN Support

Built in Intel® GbE LAN chip (10/100/1000 Mbit)

Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band

Chassis Type

Dimension

Power Supply

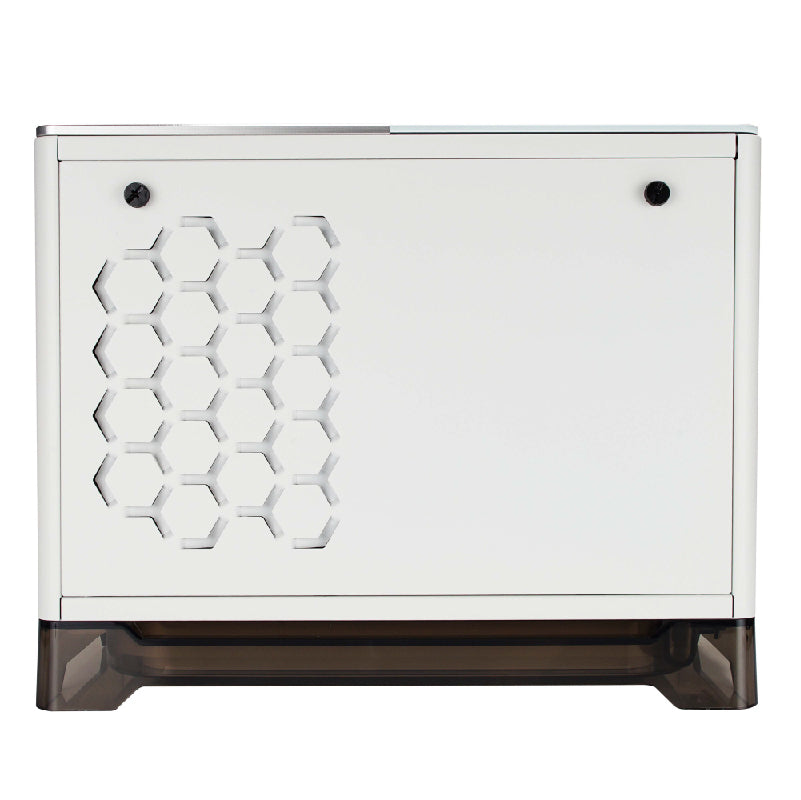

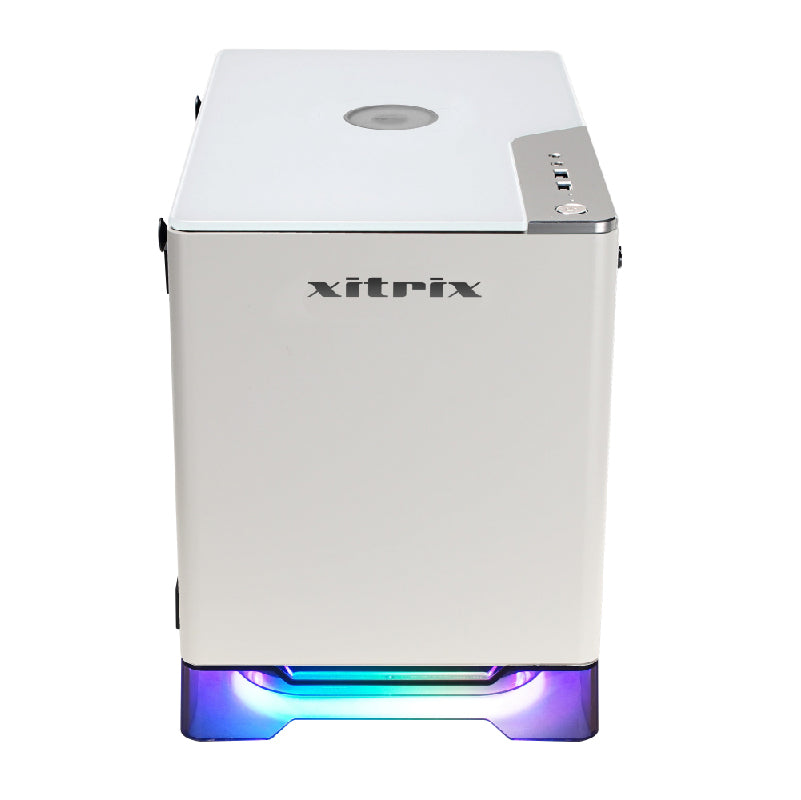

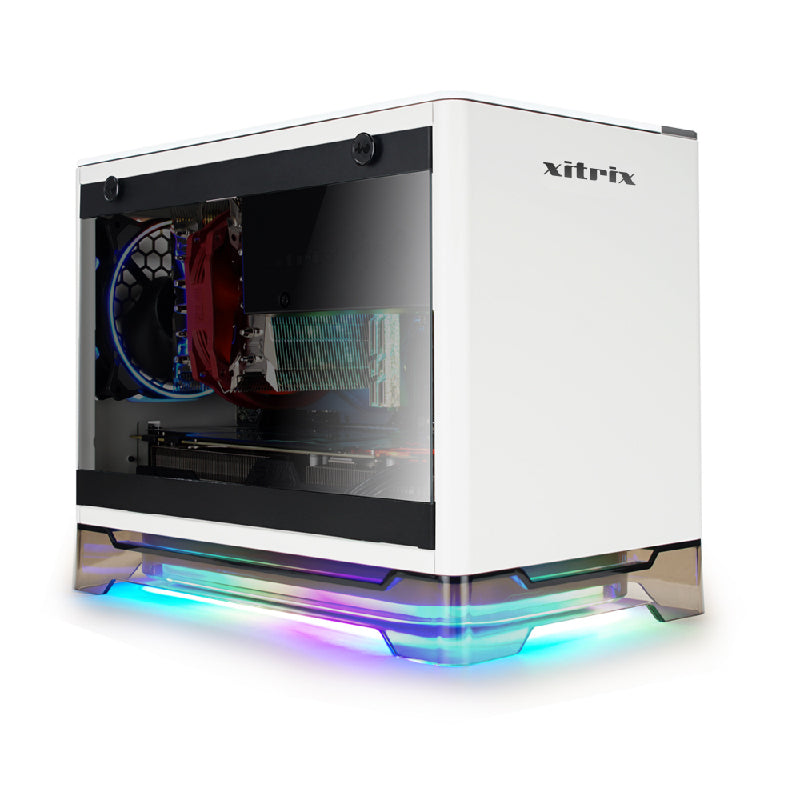

Xitrix GX Tool Free Mini ITX RGB Chassis ( side Tempered Glass); Qi 1.2 10W Charging Panel on top of chassis

231 x 210 x 343mm; Package: 344 x 295 x 414mm. 7.1 kg/ 15.7lbs

650 WATTS High Efficiency 80Plus Gold Power Supply

Thermal Solution Compatibility

1 x 120mm Side Fan; 1 x 120mm Rear Fan / 120mm Radiator

2 x 120mm Bottom Fan

RGB

RGB LED Header; Addressable RGB Lighting

Standard Warranty and Service Offerings

Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service
Optional 3 Years Next Business Day on-site

• Service Offerings 3-Year Limited Parts Warranty Technical Support Policy; 1-Year Next Business Day On-site ServiceOptional 3 Years Next Business Day on-site
