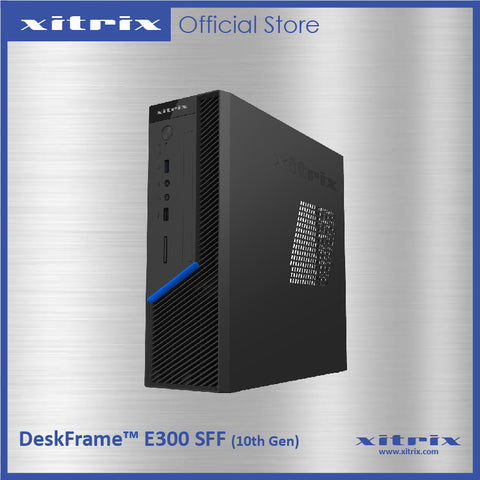

DeskFrame™ E-300 SFF

• Support 10th Gen Intel® Core™ Series Processor
• Up to 64GB DDR4 System Memory
• Supports Dual Drive configuration
• Small Form Factor Chassis
• Wireless AC, with Bluetooth Module, Gigabit LAN
• Up to 2GB Discrete Video Card
• Microsoft Windows 10 Operating System

Processors

Support for 10th Intel® Core™ i3, i5 and i7 processor series in an LGA1150 socket
Supports Intel® Celeron™ Processor and Intel® Pentium™ Processor

Core Chipset

Intel® H410 Express Chipset

Operating System

Supports Microsoft Windows 10 Home and Professional; 64 bit

System Memory

Two DDR4 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for up to DDR4 2666/2933 MHz  ; Support for up to 64 GB of system memory

Graphics

Integrated Intel® HD graphics engine

Hard Drive

Up to 14TB Serial ATA 6Gb/s Hard Drive
Up to 4TB SATA 6Gb/s SSD Solid State Drive
Supports Dual Drive ( 3.5inch and 2.5inch)

Media Storage

Optional 8x DVD Writer Drive
Built in Media Card Reader

Audio

Intel® High Definition Audio (Intel® HD Audio); Built in Speaker Module

Peripheral Interfaces

Two Super Speed USB 3.0 front and Two USB 3.1 Gen 1 Rear ports; Four USB 2.0 Rear Ports
VGA Port and HDMI Port; PS2Port, Audio Ports, Gigabit Network Port

Monitors

Choice of Xitrix® Branded Flat Panel LED Display

Slots

1 X PCI Express X16 Gen 3.0 slot(s)
1 X PCI Express X 1 Gen 3.0 slot(s)

LAN Support

(10/100/1000 Mb/s) LAN subsystem Gigabit Ethernet Controller
Optional Intel® Dual Band Wireless-AC 3165 with Dual Mode Bluetooth®4.2 BLE

Chassis Type

Dimension

Power Supply

Xitrix DeskFrame SFF Tool Free Chassis
290*92.5*280mm
250Watts High Efficiency 80Plus Power Supply

Pre-installed

Microsoft Office 2019 30 Days Trial , Free Factory Installed Microsoft Security Essentials

Accessories

Xitrix Multimedia Keyboard and Optical Scroll Mouse

Standard Warranty and Service Offerings

Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service
Optional 3 Years Next Business Day on-site

• Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service
  Optional 3 Years Next Business Day on-site

Deskframe-E300-SFF_setup-guide.pdf
