PowerFrame™ R-2560

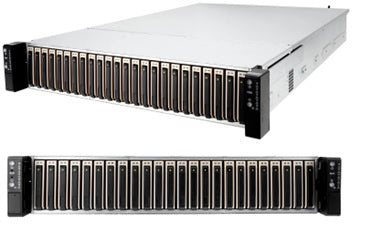

Xitrix® PowerFrame™ R-2560

• Support Dual Intel Xeon 6 Series Processor

• Up to 288 Cores and 288Threads per Processor

• Up to 4TB ECC Registered DDR5 System Memory

• 2 RJ45 (10GbE) by Intel® X710-AT2

• 2U 24 Bays Rackmount Server Chassis

Processors

System Memory

Supports 16 Dimm DDR5 RDIMM/MRDIMM
Up to 4TB ECC RDIMM Memory

Supported Operating System

Microsoft® Windows®
- Server 2022 (64 bit) and Server 2025 (64 bit)
Linux
- Red Hat Enterprise Linux Server 9.4 ( 64 bit); - SUSE Enterprise Linux Server 15 SP6 ( 64 bit); Ubuntu 24.04 ( 64 bit)

Hard Drive Controller

RAID Controller card

Optional MegaRAID 9361-8I 12GB/S PCIE 3.0 8-PORT INTERNAL 1G DDRIII SATA/SAS RAID CONTROLLER

Hard Drives

Back Plane

Mini SAS HD 12Gb/s

Network Controller

2 RJ45 (10GbE) by Intel® X710-AT2
1 Realtek RTL8211F for dedicated management GLAN

Slots

6 X PCIe4.0 x16 Slots , 2 x PCIe4.0 x8 Slots
Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s)

Optional Add On PCI

Graphics

Integrated ASPEED AST2500 Graphics Video Memory

Input / Output

Two Front USB 3.0 Front and Four Rear Ports; One Internal USB 3.0 Port
Two RJ45 10GBe LAN Ports ,Two RJ45 1GBe LAN Ports and 1 Dedicated IPMI Gigabit Port for Management; One VGA Port

Chassis

2U Rack-Mount Server
660.4 x 449.5 x 87.2mm

Power Supply

800w Platinum Redundant CRPS with PDB cable management

System Cooling

8038mm PWM Fan x 4

Standard Warranty

and Service

Offerings

Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy;
1-Year Next Business Day On-site Service
Optional 3 Years Next Business Day on-site

• Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy;
• 1-Year Next Business Day On-site Service
• Optional 3 Years Next Business Day on-site
